Graphics Diagram Yamaha LAT1100 SX210W (AR210W)
- Model code
- F2K3
- Engine Capacity
- 1100
- Year
- 2013
- Sales region
- Japan (020)
- Colour
- Black Coat 2 (SC2; GA7C)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?

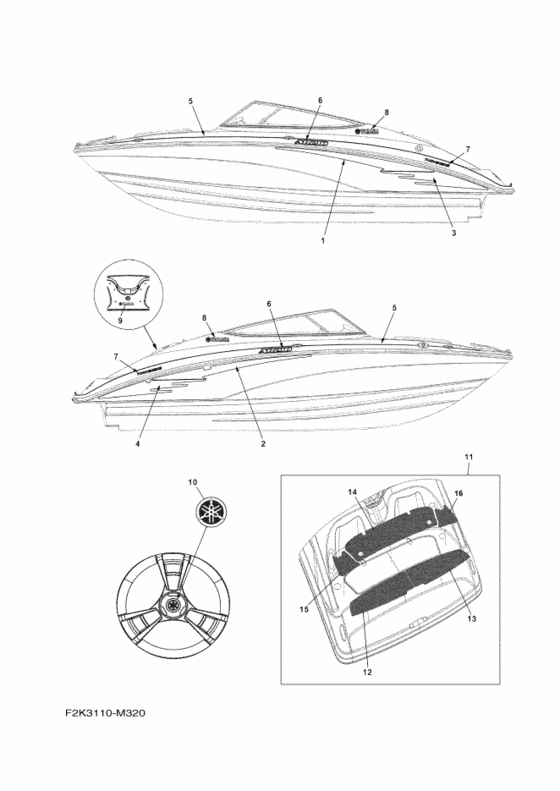

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2K-U417B-20-00 Graphic 1 |
F2K-U417B-20-00 |
US $116.82 |
||
|
2
|
2
F2K-U417C-20-00 Graphic 2 |
F2K-U417C-20-00 |
US $116.89 |
||
|
3
|
3
F2K-U417D-20-00 Graphic 3 |
F2K-U417D-20-00 |
US $76.97 |
||
|
4
|
4
F2K-U417J-20-00 Graphic 8 |
F2K-U417J-20-00 |
US $75.28 |
||
|
5
|
5
F2D-U4194-10-00 Graphic B |
F2D-U4194-10-00 |
US $83 |
||
|
6
|
6
F2K-U417H-20-00 Graphic 7 |
F2K-U417H-20-00 |
US $16.92 |
||
|
7
|
7
F3H-U417T-10-00 Graphic H |
F3H-U417T-10-00 |
US $107.96 |
||
|
8
|
8
F2D-U4114-00-00 Mark, Yamaha A |
F2D-U4114-00-00 |
from US $50.60 |
||
|
9
|
9
F1U-U4115-00-00 Mark, Yamaha 2 |
F1U-U4115-00-00 |
from US $10.10 |
||
|
10
|
10
F0C-U411H-00-00 Emblem, Tuning Fork |
F0C-U411H-00-00 |
from US $7.92 |
||
|
11
|
11
F2J-U351F-00-00 Mat Set |
F2J-U351F-00-00 |
from US $371.91 |
||
| replacement | |||||
|
11
|
11
F2J-U351F-01-00 Mat Set |
F2J-U351F-01-00 |
from US $378.65 |
||
|
12
|
12
F2J-U351H-00-00 Mat, Step 1 |
F2J-U351H-00-00 |
from US $105.23 |
||
|
13
|
13
F2J-U351J-00-00 Mat, Step 2 |
F2J-U351J-00-00 |
from US $135.65 |
||
|
14
|
14
F2D-U351K-10-00 Mat, Step 3 |
F2D-U351K-10-00 |
from US $215.96 |
||
| replacement | |||||
|
14
|
14
F2D-U351K-11-00 Mat, Step 3 |
F2D-U351K-11-00 |
from US $249.05 |
||
|
15
|
15
F2J-U351V-00-00 Foot, Step LhLH |
F2J-U351V-00-00 |
from US $70.85 |
||
|
16
|
16
F2J-U351W-00-00 Foot, Step RhRH |
F2J-U351W-00-00 |
from US $70.85 |
||
