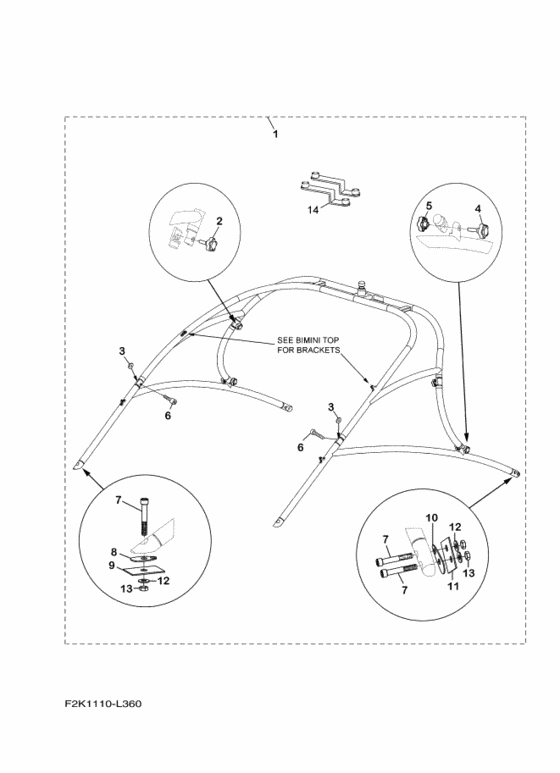

Wakeboard tower Diagram Yamaha LAT1100 SX210W (AR210W)
- Model code
- F2K3
- Engine Capacity
- 1100
- Year
- 2013
- Sales region
- Japan (020)
- Colour
- Black Coat 2 (SC2; GA7C)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2K-U270N-00-00 Tower |
F2K-U270N-00-00 |
US $6,287.38 |
||
|
2
|
2
F2D-U724D-00-00 Screw, Knob |
F2D-U724D-00-00 |
from US $83 |
||
|
3
|
3
902-0218S-A1-00 Washer, Plate |
902-0218S-A1-00 |
from US $2.91 |
||
|
4
|
4
F2D-U724D-10-00 Screw, Knob |
F2D-U724D-10-00 |
from US $109.56 |
||
|
5
|
5
F2D-U724D-20-00 Screw, Knob |
F2D-U724D-20-00 |
from US $80.98 |
||
|
6
|
6
901-1056S-22-00 Bolt, Hexagon Socket Head |
901-1056S-22-00 |
from US $62.75 |
||
|
7
|
7
901-1056S-A0-00 Bolt, Hexagon Socket Head |
901-1056S-A0-00 |
from US $23.27 |
||
|
8
|
8
F2K-U752B-00-00 Plate, Packing 1 |
F2K-U752B-00-00 |
from US $60.73 |
||
|
9
|
9
F2K-U374C-00-00 Plate, Bottom 1 |
F2K-U374C-00-00 |
from US $34.40 |
||
|
10
|
10
F2K-U752B-10-00 Plate, Packing 1 |
F2K-U752B-10-00 |
from US $46.33 |
||
|
11
|
11
F2K-U374C-10-00 Plate, Bottom 1 |
F2K-U374C-10-00 |
from US $25.06 |
||
|
12
|
12
902-0118S-00-00 Washer, Plate |
902-0118S-00-00 |
from US $1.15 |
||
| replacement | |||||
|
12
|
12
F0R-U1446-00-00 Washer |
F0R-U1446-00-00 |
from US $2.98 |
||
|
13
|
13
901-8518S-00-00 Steering Guide Attachment Kit |
901-8518S-00-00 |
US $38.11 |
||
| replacements | |||||
|
13
|
13
F0R-U1350-00-00 Steering Guide Attachment Kit |
F0R-U1350-00-00 |
from US $9.85 |
||
|
13
|
13
F1C-U1350-00-00 Steering Guide Attachment Ki |
F1C-U1350-00-00 |
from US $39.47 |
||
|
14
|
14
F2K-U1325-00-00 Bracket, Steering Tower |
F2K-U1325-00-00 |
from US $97.38 |
||
