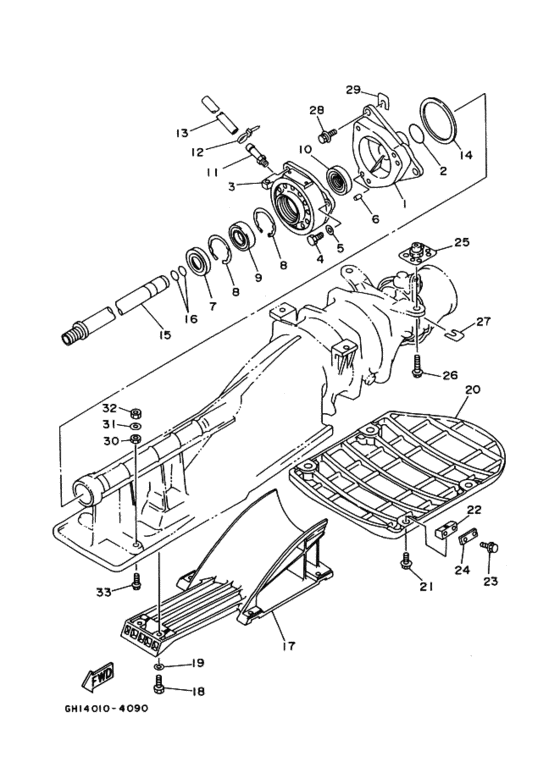

Jet unit 2 Diagram Yamaha RA700
- Model code
- GH14
- Engine Capacity
- 700
- Year
- 1994
- Sales region
- Japan (010)
- Colour
- White Coat 2 (WC2; GA3C)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62G-45331-00-94 Housing, BearingＨＯＵＳＩＮＧ， ＢＥＡＲＩＮＧ; |
62G-45331-00-94 |
from US $54.21 |
||
| replacement | |||||
|
1
|
1
62G-45331-01-94
Housing, Bearing
ＨＯＵＳＩＮＧ， ＢＥＡＲＩＮＧ; |
62G-45331-01-94 |
— | ||
|
2
|
2
93210-35M72-00 O-RingＯ−ＲＩＮＧ; |
93210-35M72-00 |
from US $7.65 |
||
|
3
|
3
61X-45332-00-9M Housing, BearingＨＯＵＳＩＮＧ， ＢＥＡＲＩＮＧ; ＵＲ ’９４ ＭＯＤＥＬ |
61X-45332-00-9M |
from US $206.56 |
||
| replacement | |||||
|
3
|
3
999-99026-43-00 Housing Set, Bearing (61X-00)ＨＯＵＳＩＮＧ， ＢＥＡＲＩＮＧ; ＵＲ ’９４ ＭＯＤＥＬ |
999-99026-43-00 |
from US $240.12 |
||
|
3
|
3
61X-45332-01-9M
Housing, Bearing
ＨＯＵＳＩＮＧ， ＢＥＡＲＩＮＧ; ＵＲ ’９５ ＭＯＤＥＬ |
61X-45332-01-9M |
— | ||
| replacements | |||||
|
3
|
3
61X-45332-03-94
Housing, Bearing
ＨＯＵＳＩＮＧ， ＢＥＡＲＩＮＧ; ＵＲ ’９５ ＭＯＤＥＬ |
61X-45332-03-94 |
— | ||
|
3
|
3
61X-45332-03-00 Housing, BearingＨＯＵＳＩＮＧ， ＢＥＡＲＩＮＧ; ＵＲ ’９５ ＭＯＤＥＬ |
61X-45332-03-00 |
from US $224.41 |
||
|
3
|
3
61X-G5332-00-00 HOUSING, BEARINGＨＯＵＳＩＮＧ， ＢＥＡＲＩＮＧ; ＵＲ ’９５ ＭＯＤＥＬ |
61X-G5332-00-00 |
from US $232.85 |
||
|
4
|
4
97395-08025-00 BoltＢＯＬＴ; |
97395-08025-00 |
from US $4.53 |
||
| replacements | |||||
|
4
|
4
98980-08025-00 Screw, Bind (98902-08025-00)ＢＯＬＴ; |
98980-08025-00 |
from US $5.68 |
||
|
4
|
4
97095-08025-00 BoltＢＯＬＴ; |
97095-08025-00 |
from US $3.38 |
||
|
5
|
5
929-95086-00-00
Washer, Plate
ＷＡＳＨＥＲ; |
929-95086-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-08600-00 Washer, PlateＷＡＳＨＥＲ; |
92990-08600-00 |
from US $1.66 |
||
|
6
|
6
93606-07M17-00 Pin, DowelＰＩＮ， ＤＯＷＥＬ; ＵＲ ’９４ ＭＯＤＥＬ |
93606-07M17-00 |
from US $1.98 |
||
|
6
|
6
936-06120-19-00 Pin, DowelＰＩＮ， ＤＯＷＥＬ; ＵＲ ’９５ ＭＯＤＥＬ |
936-06120-19-00 |
from US $2.86 |
||
|
7
|
7
93101-25M55-00 Oil SealＯＩＬ ＳＥＡＬ; |
93101-25M55-00 |
from US $13.18 |
||
|
8
|
8
93430-47M04-00 CirclipＣＩＲＣＬＩＰ; |
93430-47M04-00 |
from US $5.06 |
||
|
9
|
9
93306-205U6-00 BearingＢＥＡＲＩＮＧ; |
93306-205U6-00 |
from US $47.25 |
||
|
10
|
10
93101-25M56-00 Oil SealＯＩＬ ＳＥＡＬ; |
93101-25M56-00 |
US $19.56 |
||
| replacement | |||||
|
10
|
10
93101-24001-00 Oil SealＯＩＬ ＳＥＡＬ; |
93101-24001-00 |
from US $19.56 |
||
|
11
|
11
61L-45378-00-00 Nipple, HoseＮＩＰＰＬＥ， ＨＯＳＥ; |
61L-45378-00-00 |
from US $8.08 |
||
|
12
|
12
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
12
|
12
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.17 |
||
|
12
|
12
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
13
|
13
90445-09M21-00 Hose (L445)ＨＯＳＥ; |
90445-09M21-00 |
from US $14.73 |
||
|
14
|
14
6K8-45127-00-00 SealＳＥＡＬ; |
6K8-45127-00-00 |
from US $11.19 |
||
|
15
|
15
6R8-51323-02-00 Shaft, CouplerＳＨＡＦＴ， ＣＯＵＰＬＯＲ; ＵＲ ’９４ ＭＯＤＥＬ |
6R8-51323-02-00 |
US $470.93 |
||
|
15
|
15
6R8-51323-03-00
Shaft, Coupler
ＳＨＡＦＴ， ＣＯＵＰＬＯＲ; ＵＲ ’９５ ＭＯＤＥＬ |
6R8-51323-03-00 |
— | ||
| replacement | |||||
|
15
|
15
6R8-51323-10-00
Shaft, Coupler
ＳＨＡＦＴ， ＣＯＵＰＬＯＲ; ＵＲ ’９５ ＭＯＤＥＬ |
6R8-51323-10-00 |
— | ||
|
16
|
16
93210-17MA4-00 O-RingＯ−ＲＩＮＧ; |
93210-17MA4-00 |
from US $1.70 |
||
|
17
|
17
62T-51333-00-5B Screen, IntakeＳＣＲＥＥＮ， ＩＮＴＡＫＥ; |
62T-51333-00-5B |
US $182.54 |
||
| replacement | |||||
|
17
|
17
62T-51333-01-94 Screen, IntakeＳＣＲＥＥＮ， ＩＮＴＡＫＥ; |
62T-51333-01-94 |
US $182.54 |
||
|
18
|
18
97095-06018-00 BoltＢＯＬＴ; |
97095-06018-00 |
from US $4.11 |
||
| replacement | |||||
|
18
|
18
97080-06018-00 Bolt (Fj0)ＢＯＬＴ; |
97080-06018-00 |
from US $4.11 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.18 |
||
|
20
|
20
GH1-6273B-00-00 Plate,2ＰＬＡＴＥ ２; |
GH1-6273B-00-00 |
from US $150.60 |
||
| replacement | |||||
|
20
|
20
GH1-6273B-01-00 Plate 2ＰＬＡＴＥ ２; |
GH1-6273B-01-00 |
from US $150.60 |
||
|
21
|
21
90119-08927-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08927-00 |
US $3.01 |
||
|
22
|
22
FX1-62733-00-00
Packing
ＰＡＣＫＩＮＧ; |
FX1-62733-00-00 |
— | ||
|
23
|
23
90119-08038-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08038-00 |
from US $2.36 |
||
|
24
|
24
GH1-62663-01-00
Packing 1
ＰＡＣＫＩＮＧ １; |
GH1-62663-01-00 |
— | ||
|
25
|
25
90179-10957-00
Nut
ＮＵＴ; |
90179-10957-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
ＮＵＴ; |
999-99999-99-00 |
— | ||
|
26
|
26
90119-10906-00 BoltＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-10906-00 |
US $9.95 |
||
|
27
|
27
EW2-67354-00-03 ShimＳＨＩＭ ; Ｔ＝０．３; ＵＲ |
EW2-67354-00-03 |
from US $1.70 |
||
| replacement | |||||
|
27
|
27
EW2-67354-B0-00 Shim (T=0.3)ＳＨＩＭ ; Ｔ＝０．３; ＵＲ |
EW2-67354-B0-00 |
US $0.88 |
||
|
27
|
27
EW2-67354-00-05 ShimＳＨＩＭ ; Ｔ＝０．５; ＵＲ |
EW2-67354-00-05 |
US $1.56 |
||
| replacement | |||||
|
27
|
27
EW2-67354-C0-00 Shim (T=0.5)ＳＨＩＭ ; Ｔ＝０．５; ＵＲ |
EW2-67354-C0-00 |
from US $1.56 |
||
|
27
|
27
EW2-67354-00-10 ShimＳＨＩＭ ; Ｔ＝１．０; ＵＲ |
EW2-67354-00-10 |
US $1.56 |
||
| replacement | |||||
|
27
|
27
EW2-67354-D0-00 Shim (T=1.0)Ｔ＝１．０ ＳＨＩＭ ; Ｔ＝１．０; ＵＲ |
EW2-67354-D0-00 |
from US $1.56 |
||
|
27
|
27
EW2-67354-00-01 ShimＳＨＩＭ ; Ｔ＝０．１; ＵＲ |
EW2-67354-00-01 |
US $1.70 |
||
| replacement | |||||
|
27
|
27
EW2-67354-A0-00 Shim (T0.1)ＳＨＩＭ ; Ｔ＝０．１; ＵＲ |
EW2-67354-A0-00 |
US $0.88 |
||
|
28
|
28
90119-08907-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08907-00 |
from US $7.08 |
||
|
29
|
29
GD0-67249-00-05 ShimＳＨＩＭ ; Ｔ＝０．５; ＵＲ |
GD0-67249-00-05 |
from US $1.15 |
||
| replacements | |||||
|
29
|
29
GD0-67249-A0-00 Shim (T=0.5)ＳＨＩＭ ; Ｔ＝０．５; ＵＲ |
GD0-67249-A0-00 |
from US $1.56 |
||
|
29
|
29
999-99999-99-00
Not Available
ＳＨＩＭ ; Ｔ＝０．５; ＵＲ |
999-99999-99-00 |
— | ||
|
29
|
29
GD0-67249-00-10 ShimＳＨＩＭ ; Ｔ＝１．０; ＵＲ |
GD0-67249-00-10 |
from US $1.56 |
||
| replacements | |||||
|
29
|
29
999-99999-99-00
Not Available
ＳＨＩＭ ; Ｔ＝１．０; ＵＲ |
999-99999-99-00 |
— | ||
|
29
|
29
GD0-67249-B0-00 Shim (T=1.0)Ｔ＝１．０ ＳＨＩＭ ; Ｔ＝１．０; ＵＲ |
GD0-67249-B0-00 |
from US $1.56 |
||
|
30
|
30
90180-06900-00 Nut, TＮＵＴ， Ｔ; |
90180-06900-00 |
US $15.23 |
||
|
31
|
31
929-90106-00-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90106-00-00 |
from US $1.18 |
||
|
32
|
32
95380-10600-00 EcrouＮＵＴ; |
95380-10600-00 |
from US $2.36 |
||
|
33
|
33
90119-06934-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06934-00 |
from US $2.45 |
||
