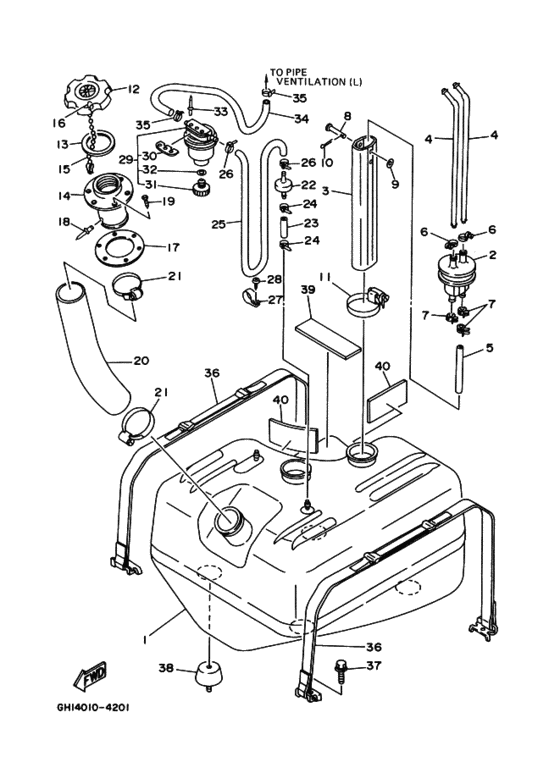

Fuel tank Diagram Yamaha RA700
- Model code
- GH1A
- Engine Capacity
- 700
- Year
- 1995
- Sales region
- Japan (010)
- Colour
- White Coat 2 (WC2; GA3C)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GH1-67711-01-00
Tank, Fuel
ＴＡＮＫ， ＦＵＥＬ; |
GH1-67711-01-00 |
— | ||
|
2
|
2
FJ0-67713-00-00 Pipe, JointＰＩＰＥ， ＪＯＩＮＴ; |
FJ0-67713-00-00 |
from US $47.80 |
||
| replacement | |||||
|
2
|
2
FJ0-67713-01-00 PIPE JOINTＰＩＰＥ， ＪＯＩＮＴ; |
FJ0-67713-01-00 |
US $58.70 |
||
|
3
|
3
EW2-67716-00-00 Sleeve 1ＳＬＥＥＶＥ １; |
EW2-67716-00-00 |
from US $17.28 |
||
| replacement | |||||
|
3
|
3
EW2-67716-02-00 Pipe, FillerＳＬＥＥＶＥ １; |
EW2-67716-02-00 |
from US $17.28 |
||
|
4
|
4
FN8-67714-00-00 Pipe, Suction 3ＰＩＰＥ， ＳＵＣＴＩＯＮ ３; |
FN8-67714-00-00 |
US $11.75 |
||
| replacement | |||||
|
4
|
4
FN8-67714-02-00 Pipe, Suction 3ＰＩＰＥ， ＳＵＣＴＩＯＮ ３; |
FN8-67714-02-00 |
US $11.75 |
||
|
5
|
5
90445-11903-00 Hose (L100)ＨＯＳＥ; |
90445-11903-00 |
from US $3.68 |
||
| replacement | |||||
|
5
|
5
90445-11293-00 Hose (L100)ＨＯＳＥ; |
90445-11293-00 |
from US $3.68 |
||
|
6
|
6
90601-11062-00 Band, HoseＢＡＮＤ， ＨＯＳＥ １１; |
90601-11062-00 |
from US $13.88 |
||
|
7
|
7
90467-11044-00 Clip (7K7)ＣＬＩＰ; |
90467-11044-00 |
from US $1.52 |
||
|
8
|
8
91790-05040-00 Pin, ClevisＰＩＮ， ＣＬＥＶＩＳ; |
91790-05040-00 |
from US $2.27 |
||
|
9
|
9
92990-05600-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
92990-05600-00 |
from US $1.07 |
||
|
10
|
10
91490-16010-00 Pin. CotterＰＩＮ， ＣＯＴＴＥＲ; |
91490-16010-00 |
from US $1.70 |
||
|
11
|
11
90601-16274-00 Band, HoseＮＹＬＯＮ ＣＬＩＰ １; |
90601-16274-00 |
from US $14.03 |
||
|
12
|
12
GA7-67831-00-00
Cap, Fuel Filler
ＣＡＰ， ＦＵＥＬ ＦＩＬＬＥＲ; |
GA7-67831-00-00 |
— | ||
| replacement | |||||
|
12
|
12
GA7-67831-01-00
Cap, Fuel Filler
ＣＡＰ， ＦＵＥＬ ＦＩＬＬＥＲ; |
GA7-67831-01-00 |
— | ||
|
13
|
13
EU0-67832-00-00 PackingＰＡＣＫＩＮＧ １; |
EU0-67832-00-00 |
from US $9.07 |
||
|
14
|
14
GA7-67833-00-00
Socket
ＳＯＣＫＥＴ; |
GA7-67833-00-00 |
— | ||
| replacement | |||||
|
14
|
14
FN8-67833-00-00 SocketＳＯＣＫＥＴ; |
FN8-67833-00-00 |
from US $41.45 |
||
|
15
|
15
EU0-67835-00-00 Chain BallＣＨＡＩＮ ＢＡＬＬ; |
EU0-67835-00-00 |
from US $9.63 |
||
|
16
|
16
EU0-67839-00-00 CuplingＣＯＵＰＬＩＮＧ; |
EU0-67839-00-00 |
from US $7.65 |
||
|
17
|
17
EU0-67834-00-00 Packing Fuel FillerＰＡＣＫＩＮＧ， ＦＵＥＬ ＦＩＬＬＥＲ; |
EU0-67834-00-00 |
from US $13.74 |
||
|
18
|
18
90267-40935-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-40935-00 |
from US $2.27 |
||
|
19
|
19
EU0-67869-00-00 Screw, Flat Head TappingＳＣＲＥＷ， ＦＬＡＴ ＨＥＡＤ; |
EU0-67869-00-00 |
from US $2.13 |
||
|
20
|
20
GH1-67844-00-00 HoseＨＯＳＥ; |
GH1-67844-00-00 |
US $106.07 |
||
|
21
|
21
90601-15573-00 Band, HoseＮＹＬＯＮ ＣＬＩＰ １; |
90601-15573-00 |
from US $13.88 |
||
|
22
|
22
EU0-67767-31-00 Check ValveＣＨＥＣＫ ＶＡＬＶＥ; |
EU0-67767-31-00 |
from US $24.94 |
||
|
23
|
23
GA7-6785G-00-00 HoseＨＯＳＥ， ＡＩＲ ＶＥＮＴ; |
GA7-6785G-00-00 |
from US $17.43 |
||
| replacement | |||||
|
23
|
23
90699-50100-00 HoseＨＯＳＥ， ＡＩＲ ＶＥＮＴ; |
90699-50100-00 |
from US $17.43 |
||
|
24
|
24
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
24
|
24
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.40 |
||
|
24
|
24
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
25
|
25
GA7-67856-00-00 Hose, Air Vent 3ＨＯＳＥ， ＡＩＲ ＶＥＮＴ ３; |
GA7-67856-00-00 |
US $17 |
||
| replacement | |||||
|
25
|
25
906-99501-35-00 HoseＨＯＳＥ， ＡＩＲ ＶＥＮＴ ３; |
906-99501-35-00 |
US $17.57 |
||
|
26
|
26
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
26
|
26
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.40 |
||
|
26
|
26
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
27
|
27
90600-91728-00 ClampＣＬＩＰ， ＮＹＬＯＮ １７; |
90600-91728-00 |
from US $2.08 |
||
|
28
|
28
97780-50116-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-50116-00 |
from US $1.52 |
||
|
29
|
29
EW2-62140-00-00 Filter, Vent AssyＦＩＬＴＥＲ， ＶＥＮＴ ＡＳＳＹ; |
EW2-62140-00-00 |
from US $57.20 |
||
| replacement | |||||
|
29
|
29
F2F-6214A-00-00 Filter, Vent AssyＦＩＬＴＥＲ， ＶＥＮＴ ＡＳＳＹ; |
F2F-6214A-00-00 |
from US $57.20 |
||
|
30
|
30
EW2-62142-00-00 Plate, Filter．ＰＬＡＴＥ， ＦＩＬＴＥＲ; |
EW2-62142-00-00 |
from US $26.38 |
||
|
31
|
31
70R-24543-00-00 Plug, Drain．ＰＬＵＧ， ＤＲＡＩＮ; |
70R-24543-00-00 |
from US $5.40 |
||
|
32
|
32
70R-24489-00-00 O-Ring．Ｏ−ＲＩＮＧ， ＳＥＰＡＲＡＴＥＲ ２; |
70R-24489-00-00 |
from US $2.36 |
||
|
33
|
33
90267-48940-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48940-00 |
from US $3.14 |
||
|
34
|
34
90445-09905-00 Hose (L180)ＨＯＳＥ; |
90445-09905-00 |
from US $4.11 |
||
| replacement | |||||
|
34
|
34
90445-094K7-00 Hose (L180)ＨＯＳＥ; |
90445-094K7-00 |
from US $4.11 |
||
|
35
|
35
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
35
|
35
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.40 |
||
|
35
|
35
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
36
|
36
GH1-67743-01-00
Belt,tank 1
ＢＥＬＴ， ＴＡＮＫ １; |
GH1-67743-01-00 |
— | ||
| replacement | |||||
|
36
|
36
GH1-67743-02-00
Belt, Tank 1
ＢＥＬＴ， ＴＡＮＫ １; |
GH1-67743-02-00 |
— | ||
|
37
|
37
90119-08903-00 Bolt With Washer (Eu0)ＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08903-00 |
from US $3.49 |
||
|
38
|
38
GH1-6782B-01-00 Damper,fuel TankＤＡＭＰＥＲ， ＦＵＥＬ ＴＡＮＫ; |
GH1-6782B-01-00 |
US $27.11 |
||
|
39
|
39
GH1-6759B-00-00
Mat 1
ＭＡＴ １; |
GH1-6759B-00-00 |
— | ||
|
40
|
40
GH1-6759C-00-00 Mat 2ＭＡＴ ２; |
GH1-6759C-00-00 |
from US $4.53 |
||
