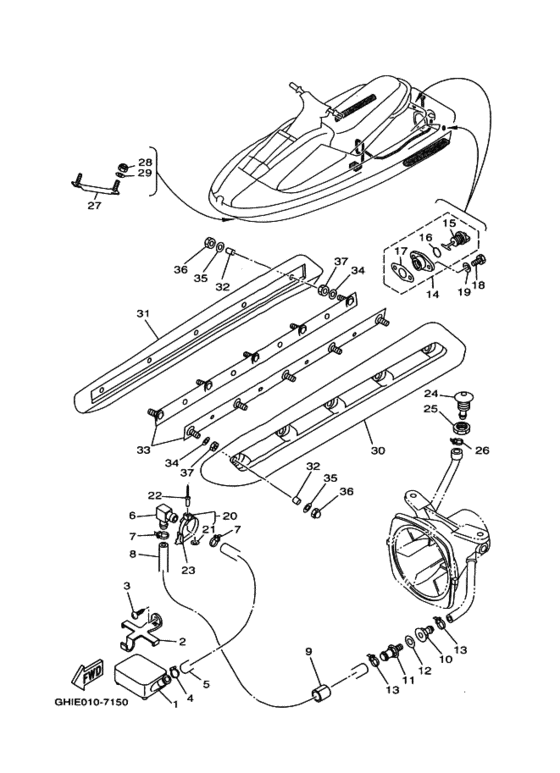

Hull. deck Diagram Yamaha RA700
- Model code
- GH1E
- Engine Capacity
- 700
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GD0-6761D-00-00 Strainer, BilgeＳＴＲＡＩＮＥＲ， ＢＩＬＧＥ; |
GD0-6761D-00-00 |
from US $28.62 |
||
|
2
|
2
EW2-67618-00-00 Base, Strainer BligeＢＡＳＥ， ＳＴＲＡＩＮＥＲ ＢＩＬＧＥ; |
EW2-67618-00-00 |
from US $24.51 |
||
|
3
|
3
97780-50114-00 Screw, TappingＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ ＴＡＰＰＩＮＧ; |
97780-50114-00 |
US $1.84 |
||
| replacement | |||||
|
3
|
3
977-80505-14-00 Screw, TappingＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ ＴＡＰＰＩＮＧ; |
977-80505-14-00 |
from US $1.84 |
||
|
4
|
4
90601-20005-00 BandＢＡＮＤ; |
90601-20005-00 |
from US $1.98 |
||
|
5
|
5
90445-19M04-00 HoseＨＯＳＥ; |
90445-19M04-00 |
US $109.48 |
||
|
6
|
6
61X-51162-00-00 Joint, HoseＪＯＩＮＴ， ＨＯＳＥ; |
61X-51162-00-00 |
from US $11.33 |
||
|
7
|
7
90465-13M11-00 ClampＣＬＡＭＰ; |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
7
|
7
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.21 |
||
|
8
|
8
90445-19M02-00 Hose (L450)ＨＯＳＥ; |
90445-19M02-00 |
US $36.32 |
||
| replacement | |||||
|
8
|
8
90445-19M01-00 HoseＨＯＳＥ; |
90445-19M01-00 |
US $36.32 |
||
|
9
|
9
GH1-67578-01-00
Packing, Hose 2
ＰＡＣＫＩＮＧ， ＨＯＳＥ ２; |
GH1-67578-01-00 |
— | ||
|
10
|
10
90604-80759-00 Connection, Thru-Hull 1/4ＣＯＮＮＥＣＴＩＯＮ， ＴＨＲＵ−ＨＵＬＬ １／４; |
90604-80759-00 |
from US $15.30 |
||
|
11
|
11
90604-80775-00 Through, Hull ConnectionＴＨＲＯＵＧＨ， ＨＵＬＬ ＣＯＮＮＥＣＴＩＯＮ; |
90604-80775-00 |
from US $14.17 |
||
|
12
|
12
90430-13909-00 GasketＧＡＳＫＥＴ; |
90430-13909-00 |
from US $1.90 |
||
|
13
|
13
90601-20005-00 BandＢＡＮＤ; |
90601-20005-00 |
from US $1.98 |
||
|
14
|
14
EU0-62280-00-00 Drain Plug AssyＤＲＡＩＮ ＰＬＵＧ ＡＳＳＹ; |
EU0-62280-00-00 |
from US $43.24 |
||
|
15
|
15
EU0-62282-00-00 Plug, Drain．ＰＬＵＧ， ＤＲＡＩＮ; |
EU0-62282-00-00 |
from US $3.26 |
||
|
16
|
16
EU0-62283-00-00 O-Ring．Ｏ−ＲＩＮＧ; |
EU0-62283-00-00 |
from US $1.28 |
||
|
17
|
17
EU0-62285-01-00 Packing Drain (Eu0)．ＰＡＣＫＩＮＧ， ＤＲＡＩＮ; |
EU0-62285-01-00 |
from US $5.10 |
||
|
18
|
18
97780-50520-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-50520-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
97780-50620-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-50620-00 |
from US $1.56 |
||
|
19
|
19
92990-05200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-05200-00 |
from US $1.36 |
||
|
20
|
20
90600-91736-00 Clamp Comp (Eu0)ＣＬＡＭＰ; |
90600-91736-00 |
from US $1.98 |
||
|
21
|
21
90201-05925-00
Washer, Plain
．ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-05925-00 |
— | ||
|
22
|
22
90267-48925-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48925-00 |
from US $1.94 |
||
| replacement | |||||
|
22
|
22
90267-48802-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48802-00 |
from US $1.84 |
||
|
23
|
23
90601-20006-00 Band, HoseＮＹＬＯＮ ＣＬＩＰ １; |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
23
|
23
90601-20009-00 Band (Eu0)ＮＹＬＯＮ ＣＬＩＰ １; |
90601-20009-00 |
from US $2.27 |
||
|
24
|
24
FN8-6269B-00-00 SpoutＳＰＯＵＴ; |
FN8-6269B-00-00 |
from US $15.87 |
||
|
25
|
25
EU0-61652-00-00 NutＮＵＴ; |
EU0-61652-00-00 |
from US $6.94 |
||
|
26
|
26
90465-13M11-00 ClampＣＬＡＭＰ; |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
26
|
26
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.21 |
||
|
27
|
27
FN8-61624-01-00 Boweye 1 (S)ＢＯＷＥＹＥ １ ; Ｓ |
FN8-61624-01-00 |
US $42.64 |
||
| replacement | |||||
|
27
|
27
FN8-U1624-00-00
Bow Eye 1
ＢＯＷＥＹＥ １ ; Ｓ |
FN8-U1624-00-00 |
— | ||
|
28
|
28
95720-08300-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95720-08300-00 |
from US $4.11 |
||
|
29
|
29
92990-08200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-08200-00 |
from US $1.07 |
||
|
30
|
30
GH1-6883N-50-00 Stabilizer LhＳＴＡＢＩＬＩＺＥＲ ＬＨ; |
GH1-6883N-50-00 |
US $156.38 |
||
|
31
|
31
GH1-6883P-50-00 Stabilizer RhＳＴＡＢＩＬＩＺＥＲ ＲＨ; |
GH1-6883P-50-00 |
US $156.38 |
||
|
32
|
32
90387-06916-00 CollarＣＯＬＬＡＲ; |
90387-06916-00 |
from US $1.36 |
||
|
33
|
33
GH1-6883T-00-00
Bracket,stabilizer
ＢＲＡＣＫＥＴ， ＳＴＡＢＩＬＩＺＥＲ; |
GH1-6883T-00-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
ＢＲＡＣＫＥＴ， ＳＴＡＢＩＬＩＺＥＲ; |
999-99999-99-00 |
— | ||
|
34
|
34
92990-06200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-06200-00 |
from US $1.07 |
||
|
35
|
35
902-01065-F3-00
Washer, Plate
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
902-01065-F3-00 |
— | ||
| replacement | |||||
|
35
|
35
90201-06020-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
90201-06020-00 |
from US $1.56 |
||
|
36
|
36
90179-06959-00 NutＮＵＴ; |
90179-06959-00 |
US $3.42 |
||
|
37
|
37
953-80067-00-00 NutＮＵＴ; |
953-80067-00-00 |
from US $1.36 |
||
| replacement | |||||
|
37
|
37
9538R-06700-00 NutＮＵＴ; |
9538R-06700-00 |
from US $1.42 |
||
