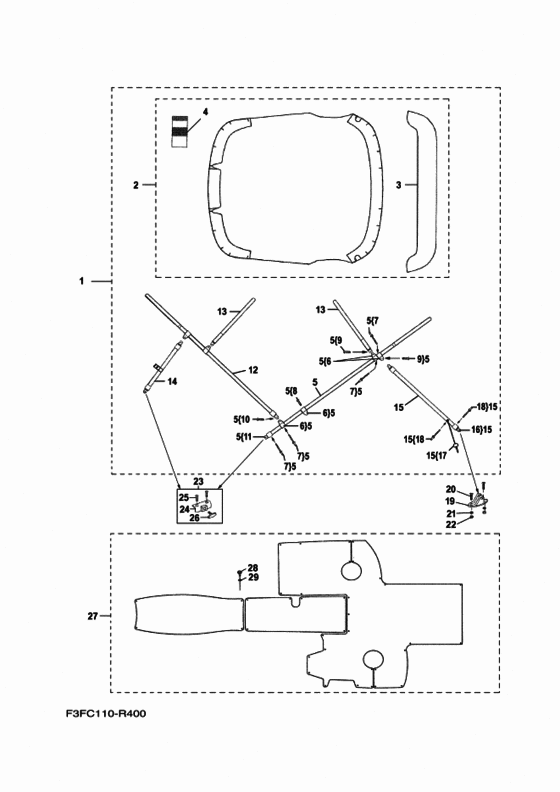

Bimini top / carpet Diagram Yamaha SAT1800
- Model code
- F3FC
- Year
- 2016
- Sales region
- Canada (020)
- Colour
- Gray Coat 7
- Color Variant
- B
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F3F-U3104-10-00 Awning, Canvas Set |
F3F-U3104-10-00 |
US $2,437.18 |
||
|
2
|
2
F3F-U3108-10-00 Canvas Set |
F3F-U3108-10-00 |
US $990.66 |
||
|
3
|
3
F3F-U3119-10-00 Cover |
F3F-U3119-10-00 |
US $526.48 |
||
|
4
|
4
F2D-U377B-10-00 Cover,side 1 |
F2D-U377B-10-00 |
US $301.70 |
||
|
5
|
5
F2D-U3111-10-00 Pipe, Awning 1 |
F2D-U3111-10-00 |
US $714.80 |
||
|
6
|
6
F1C-U3152-00-00 Pivot, Slide |
F1C-U3152-00-00 |
from US $97.18 |
||
|
7
|
7
F0R-U2698-00-00 Rivet |
F0R-U2698-00-00 |
from US $6.52 |
||
|
8
|
8
901-4908S-E1-00 Screw |
901-4908S-E1-00 |
from US $6.94 |
||
|
9
|
9
901-4914S-D0-00 Screw |
901-4914S-D0-00 |
from US $3.60 |
||
|
10
|
10
901-4914S-D9-00 Screw |
901-4914S-D9-00 |
from US $7.33 |
||
|
11
|
11
F1C-U3188-00-00 Base, Awning Bracket |
F1C-U3188-00-00 |
US $57.60 |
||
|
12
|
12
F3F-U3112-10-00 Pipe, Awning 2 |
F3F-U3112-10-00 |
US $692.53 |
||
|
13
|
13
F3F-U3113-10-00 Pipe, Awning 3 |
F3F-U3113-10-00 |
US $419.15 |
||
|
14
|
14
F3F-U3114-10-00 Pipe, Awning 4 |
F3F-U3114-10-00 |
US $265.25 |
||
|
15
|
15
F2D-U3115-10-00 Pipe, Awning 5 |
F2D-U3115-10-00 |
US $285.50 |
||
|
16
|
16
F1C-U3188-00-00 Base, Awning Bracket |
F1C-U3188-00-00 |
US $57.60 |
||
|
17
|
17
F0R-U316A-00-00 Pin (Fl66314600) |
F0R-U316A-00-00 |
US $28.33 |
||
| replacement | |||||
|
17
|
17
F0R-U316A-10-00 Pin (Fl66314600) |
F0R-U316A-10-00 |
US $31.37 |
||
|
18
|
18
F0R-U2698-00-00 Rivet |
F0R-U2698-00-00 |
from US $6.52 |
||
|
19
|
19
F0R-U3142-10-00 Bracket, Awning 2 |
F0R-U3142-10-00 |
from US $31.37 |
||
|
20
|
20
901-5210S-40-00 Screw, Countersunk |
901-5210S-40-00 |
from US $4.96 |
||
|
21
|
21
902-0910S-B1-00 Washer |
902-0910S-B1-00 |
from US $3.68 |
||
|
22
|
22
901-8510S-00-00 Nut, Self-Locking |
901-8510S-00-00 |
from US $5.08 |
||
|
23
|
23
F3F-U1350-00-00 Steering Guide Attachment Kit |
F3F-U1350-00-00 |
from US $149.83 |
||
|
24
|
24
F1T-U3142-10-00 Bracket, Awning 2 |
F1T-U3142-10-00 |
from US $88.92 |
||
| replacement | |||||
|
24
|
24
F1T-U3142-00-00 New Genuine Part |
F1T-U3142-00-00 |
from US $30.35 |
||
|
25
|
25
901-6708S-10-00 Screw, Tapping |
901-6708S-10-00 |
from US $2.09 |
||
|
26
|
26
F1T-U724D-00-00 Screw, Knob |
F1T-U724D-00-00 |
from US $9.76 |
||
|
27
|
27
F3F-U3908-10-00 Carpet Set |
F3F-U3908-10-00 |
US $796.16 |
||
|
28
|
28
F1C-U5192-00-00 Snap |
F1C-U5192-00-00 |
from US $4.39 |
||
|
29
|
29
902-0206S-A1-00 Washer, Plate |
902-0206S-A1-00 |
from US $3.54 |
||
