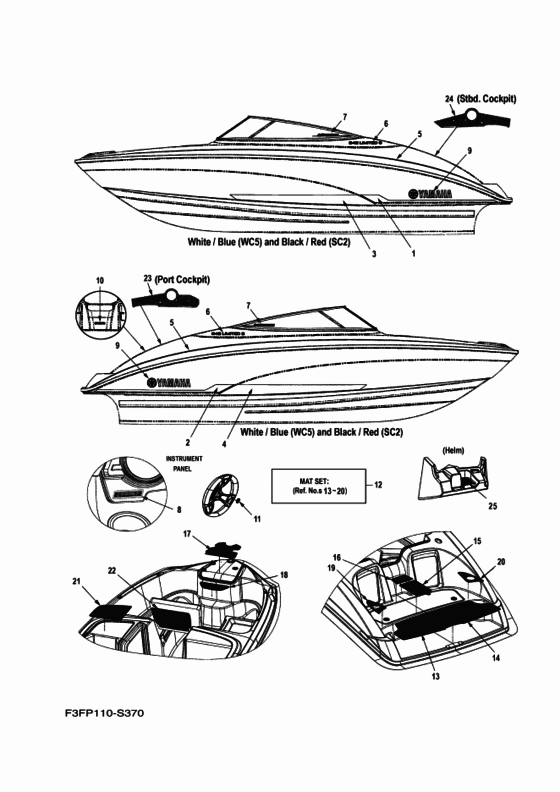

Graphics & mats Diagram Yamaha SAT1800 242 Limited S E
- Model code
- F3FP
- Year
- 2017
- Sales region
- Japan (019)
- Colour
- ﾌﾞﾗﾂｸ ｺ-ﾄ 2
- Color Variant
- B
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Note
- ﾌﾞﾗﾂｸ ｺ-ﾄ 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F3F-U417M-10-00 GRAPHIC CUR FOR SC2 |
F3F-U417M-10-00 |
from US $89.08 |
||
|
2
|
2
F3F-U417N-10-00 GRAPHIC DUR FOR SC2 |
F3F-U417N-10-00 |
from US $74.09 |
||
|
3
|
3
F3F-U417P-10-00 GRAPHIC EUR FOR SC2 |
F3F-U417P-10-00 |
from US $78.99 |
||
|
4
|
4
F3F-U417R-10-00 GRAPHIC FUR FOR SC2 |
F3F-U417R-10-00 |
from US $78.32 |
||
|
6
|
6
F3F-U4125-80-00 EMBLEMUR FOR SC2 |
F3F-U4125-80-00 |
from US $10.26 |
||
|
7
|
7
F3F-U4125-70-00 Emblem |
F3F-U4125-70-00 |
from US $11.14 |
||
|
8
|
8
F3F-U4124-00-00 Emblem 4 |
F3F-U4124-00-00 |
from US $52.63 |
||
|
9
|
9
F3M-U4114-00-00 Mark, Yamaha A |
F3M-U4114-00-00 |
from US $111.35 |
||
|
10
|
10
F1U-U4115-00-00 Mark, Yamaha 2 |
F1U-U4115-00-00 |
from US $9.78 |
||
|
11
|
11
F0C-U411H-00-00 Emblem, Tuning Fork |
F0C-U411H-00-00 |
from US $7.92 |
||
|
12
|
12
F3F-U351F-60-00 MAT SET |
F3F-U351F-60-00 |
from US $627.73 |
||
|
13
|
13
F3F-U351H-60-00 MAT, STEP 1 |
F3F-U351H-60-00 |
from US $242.98 |
||
|
14
|
14
F3F-U351J-60-00 MAT, STEP 2 |
F3F-U351J-60-00 |
from US $159.95 |
||
|
15
|
15
F3F-U351K-60-00 MAT, STEP 3 |
F3F-U351K-60-00 |
from US $83 |
||
|
16
|
16
F3F-U351M-60-00 MAT, STEP 4 |
F3F-U351M-60-00 |
from US $36.43 |
||
|
17
|
17
F3F-U351N-60-00 MAT, STEP 5 |
F3F-U351N-60-00 |
from US $125.53 |
||
|
18
|
18
F3F-U351P-60-00 MAT, STEP 6 |
F3F-U351P-60-00 |
from US $68.83 |
||
|
19
|
19
F3F-U351V-60-00 FOOT, STEP LH |
F3F-U351V-60-00 |
from US $50.60 |
||
|
20
|
20
F3F-U351W-60-00 FOOT, STEP RH |
F3F-U351W-60-00 |
from US $56.68 |
||
|
23
|
23
F3F-U351C-20-00 Mat, Side 1UR FOR SC2 |
F3F-U351C-20-00 |
from US $253.10 |
||
|
24
|
24
F3F-U351C-30-00 Mat, Side 1UR FOR SC2 |
F3F-U351C-30-00 |
from US $372.58 |
