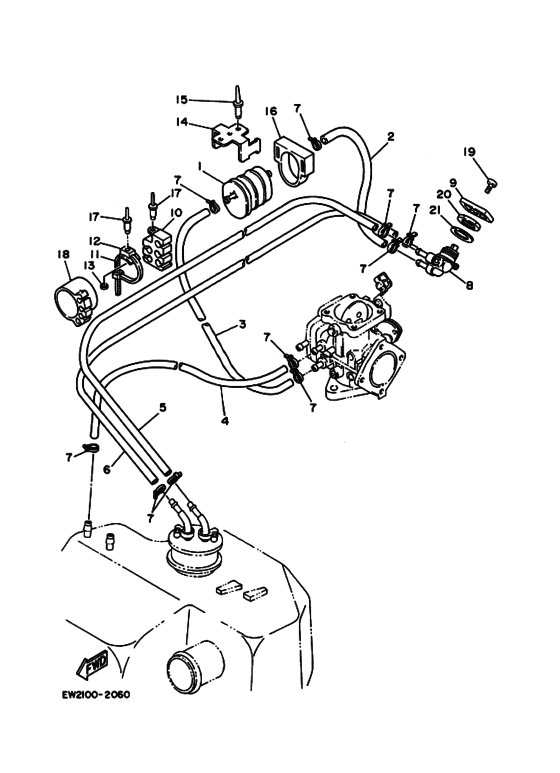

Fuel Diagram Yamaha SJ650
- Model code
- EW29
- Engine Capacity
- 650
- Year
- 1992
- Sales region
- Europe (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6K8-24560-10-00 Filter Assy |
6K8-24560-10-00 |
from US $40.58 |
||
| replacement | |||||
|
1
|
1
6K8-24560-21-00 Filter Assy |
6K8-24560-21-00 |
from US $36.70 |
||
|
2
|
2
90445-10M32-00 Hose (L210) |
90445-10M32-00 |
from US $38.27 |
||
| replacement | |||||
|
2
|
2
90445-10MA9-00 Hose (L1040) |
90445-10MA9-00 |
from US $38.27 |
||
|
3
|
3
90445-10M33-00 Hose |
90445-10M33-00 |
from US $38.27 |
||
| replacement | |||||
|
3
|
3
90445-10MA9-00 Hose (L1040) |
90445-10MA9-00 |
from US $38.27 |
||
|
4
|
4
90445-10M34-00 Hose (L550) |
90445-10M34-00 |
from US $38.27 |
||
| replacement | |||||
|
4
|
4
90445-10MA9-00 Hose (L1040) |
90445-10MA9-00 |
from US $38.27 |
||
|
5
|
5
90445-10M35-00 Hose (L1000) |
90445-10M35-00 |
from US $45.75 |
||
| replacements | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
90445-10M87-00 Hose (L1700) |
90445-10M87-00 |
US $45.75 |
||
|
6
|
6
90445-10M51-00 Hose (L1000) |
90445-10M51-00 |
from US $38.27 |
||
| replacement | |||||
|
6
|
6
90445-10MA9-00 Hose (L1040) |
90445-10MA9-00 |
from US $38.27 |
||
|
7
|
7
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
7
|
7
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
7
|
7
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
8
|
8
6K8-24500-02-00 Fuel Cock Assy 1 |
6K8-24500-02-00 |
from US $58.01 |
||
| replacement | |||||
|
8
|
8
6K8-24500-03-00 Fuel Cock Assy 1 |
6K8-24500-03-00 |
US $113.38 |
||
|
9
|
9
6R7-24524-00-00 Lever, Cock |
6R7-24524-00-00 |
from US $6.52 |
||
|
10
|
10
EW2-67812-00-00
Holder, Pipe 2
|
EW2-67812-00-00 |
— | ||
|
11
|
11
90601-20010-00 Band |
90601-20010-00 |
from US $3.97 |
||
|
12
|
12
90600-91729-00 Clamp |
90600-91729-00 |
from US $1.98 |
||
| replacement | |||||
|
12
|
12
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
13
|
13
90201-05925-00
Washer, Plain
|
90201-05925-00 |
— | ||
|
14
|
14
EU0-67816-30-00 Bracket, Fuel Filter |
EU0-67816-30-00 |
from US $13.32 |
||
| replacement | |||||
|
14
|
14
FN8-67816-00-00 Bracket, Fuel Filter |
FN8-67816-00-00 |
from US $13.32 |
||
|
15
|
15
90267-48940-00 Rivet, Blind |
90267-48940-00 |
from US $3.14 |
||
|
16
|
16
EU0-67817-00-00 Holder, Filter |
EU0-67817-00-00 |
from US $8.93 |
||
|
17
|
17
90267-48007-00 Rivet, Blind |
90267-48007-00 |
from US $1.69 |
||
|
18
|
18
EW2-67811-00-00 Holder, Pipe 1 |
EW2-67811-00-00 |
US $37.58 |
||
|
19
|
19
98980-04008-00 Screw, Bind |
98980-04008-00 |
from US $1.21 |
||
|
20
|
20
90170-22187-00 Nut |
90170-22187-00 |
from US $4.39 |
||
|
21
|
21
90202-229U1-00 Washer, Plate |
90202-229U1-00 |
from US $16.58 |
||
