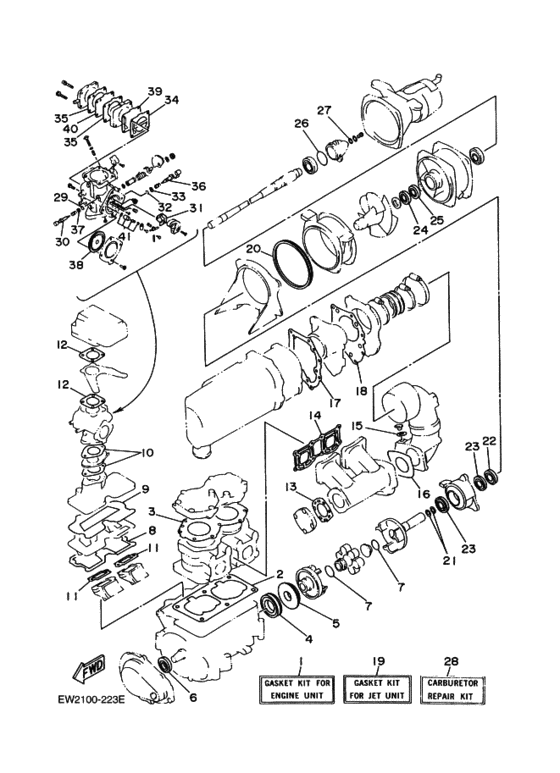

Gasket kit Diagram Yamaha SJ650
- Model code
- EW2C
- Engine Capacity
- 650
- Year
- 1992
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6R7-W0001-01-00
Gasket Kit
ＧＡＳＫＥＴ ＫＩＴ ＦＯＲ ＥＮＧＩＮＥ ＵＮＩＴ; |
6R7-W0001-01-00 |
— | ||
| replacement | |||||
|
1
|
1
6R7-W0001-A1-00
Gasket Kit, Power Unit
ＧＡＳＫＥＴ ＫＩＴ ＦＯＲ ＥＮＧＩＮＥ ＵＮＩＴ; |
6R7-W0001-A1-00 |
— | ||
|
2
|
2
6M6-11351-A1-00 Gasket, Cylinder．ＧＡＳＫＥＴ， ＣＹＬＩＮＤＥＲ; |
6M6-11351-A1-00 |
from US $15.98 |
||
| replacement | |||||
|
2
|
2
6M6-11351-A2-00 Gasket, Cylinder．ＧＡＳＫＥＴ， ＣＹＬＩＮＤＥＲ; |
6M6-11351-A2-00 |
from US $10.92 |
||
|
3
|
3
6R7-11181-A0-00
Gasket, Cylinder. Head
．ＧＡＳＫＥＴ， ＣＹＬＩＮＤＥＲ ＨＥＡＤ １; |
6R7-11181-A0-00 |
— | ||
| replacement | |||||
|
3
|
3
6R7-11181-A1-00
Gasket, Cylinder Head 1
．ＧＡＳＫＥＴ， ＣＹＬＩＮＤＥＲ ＨＥＡＤ １; |
6R7-11181-A1-00 |
— | ||
|
4
|
4
93102-36M33-00 Oil Seal．ＯＩＬ ＳＥＡＬ; |
93102-36M33-00 |
from US $19.69 |
||
|
5
|
5
93101-36M46-00 Oil Seal．ＯＩＬ ＳＥＡＬ; |
93101-36M46-00 |
from US $16.43 |
||
|
6
|
6
93103-32M01-00 Oil Seal．ＯＩＬ ＳＥＡＬ; |
93103-32M01-00 |
from US $18.28 |
||
|
7
|
7
93210-30M31-00 O-Ring．Ｏ−ＲＩＮＧ; |
93210-30M31-00 |
from US $9.07 |
||
|
8
|
8
6M6-13566-A1-00 Gasket．ＧＡＳＫＥＴ; |
6M6-13566-A1-00 |
from US $5.44 |
||
| replacement | |||||
|
8
|
8
6M6-13566-A2-00
Gasket
．ＧＡＳＫＥＴ; |
6M6-13566-A2-00 |
— | ||
|
9
|
9
6M6-13563-A1-00 Gasket．ＧＡＳＫＥＴ; |
6M6-13563-A1-00 |
from US $2 |
||
|
10
|
10
6M6-13556-A1-00 Gasket, Manifold．ＧＡＳＫＥＴ， ＭＡＮＩＦＯＬＤ; |
6M6-13556-A1-00 |
from US $4.96 |
||
|
11
|
11
6M6-13621-A1-00 Gasket, Valve Seat．ＧＡＳＫＥＴ， ＶＡＬＶＥ ＳＥＡＴ; |
6M6-13621-A1-00 |
from US $2.05 |
||
|
12
|
12
6M6-13674-A1-00 Gasket, Air Cooler Cover 1．ＧＡＳＫＥＴ， ＡＩＲ ＣＯＯＬＥＲ ＣＯＶＥＲ １; |
6M6-13674-A1-00 |
from US $7.33 |
||
|
13
|
13
6M6-14739-A1-00 Gasket, Muffler Damper 1．ＧＡＳＫＥＴ， ＭＵＦＦＬＥＲ ＤＡＭＰＥＲ １; |
6M6-14739-A1-00 |
from US $11.97 |
||
| replacement | |||||
|
13
|
13
6M6-14739-A2-00 Gasket, Muffler Damper 1．ＧＡＳＫＥＴ， ＭＵＦＦＬＥＲ ＤＡＭＰＥＲ １; |
6M6-14739-A2-00 |
from US $16.15 |
||
|
14
|
14
6M6-14613-A0-00 Gasket, Exhaust Pipe．ＧＡＳＫＥＴ， ＥＸＨＡＵＳＴ ＰＩＰＥ; |
6M6-14613-A0-00 |
from US $16.18 |
||
|
15
|
15
904-30080-20-00 Gasket．ＧＡＳＫＥＴ; |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
90430-08003-00 Gasket．ＧＡＳＫＥＴ; |
90430-08003-00 |
from US $1.28 |
||
|
16
|
16
6R7-14749-A0-00 Gasket, Muffler Damper 2．ＧＡＳＫＥＴ， ＭＵＦＦＬＥＲ ＤＡＭＰＥＲ ２; |
6R7-14749-A0-00 |
from US $13.75 |
||
| replacement | |||||
|
16
|
16
6R7-14749-A1-00 Gasket, Muffler Damper 2．ＧＡＳＫＥＴ， ＭＵＦＦＬＥＲ ＤＡＭＰＥＲ ２; |
6R7-14749-A1-00 |
from US $15.16 |
||
|
17
|
17
6R7-14755-A0-00 Gasket, Silencer．ＧＡＳＫＥＴ， ＳＩＬＥＮＣＥＲ; |
6R7-14755-A0-00 |
from US $15.87 |
||
|
18
|
18
6R7-41114-A0-00 Gasket, Exhaust Outer Cover．ＧＡＳＫＥＴ， ＥＸＨＡＵＳＴ ＯＵＴＥＲ ＣＯＶＥＲ; |
6R7-41114-A0-00 |
from US $13.79 |
||
|
19
|
19
6R7-W0001-21-00
Gasket Kit
ＧＡＳＫＥＴ ＫＩＴ ＦＯＲ ＪＥＴ ＵＮＩＴ; |
6R7-W0001-21-00 |
— | ||
| replacement | |||||
|
19
|
19
6R7-W0001-22-00
Gasket Kit For Jet Unit
ＧＡＳＫＥＴ ＫＩＴ ＦＯＲ ＪＥＴ ＵＮＩＴ; |
6R7-W0001-22-00 |
— | ||
|
20
|
20
6R7-51117-00-00 Packing．ＰＡＣＫＩＮＧ; |
6R7-51117-00-00 |
from US $31.17 |
||
| replacement | |||||
|
20
|
20
6R7-51117-01-00 Packing．ＰＡＣＫＩＮＧ; |
6R7-51117-01-00 |
from US $28.44 |
||
|
21
|
21
93210-17MA4-00 O-Ring．Ｏ−ＲＩＮＧ; |
93210-17MA4-00 |
from US $1.34 |
||
|
22
|
22
93101-25M53-00 Oil Seal．ＯＩＬ ＳＥＡＬ; |
93101-25M53-00 |
from US $23.52 |
||
| replacement | |||||
|
22
|
22
93101-25M56-00 Oil Seal．ＯＩＬ ＳＥＡＬ; |
93101-25M56-00 |
from US $23.52 |
||
|
23
|
23
93101-25M52-00 Oil Seal．ＯＩＬ ＳＥＡＬ; |
93101-25M52-00 |
from US $13.46 |
||
| replacement | |||||
|
23
|
23
93101-25M55-00 Oil Seal．ＯＩＬ ＳＥＡＬ; |
93101-25M55-00 |
from US $13.46 |
||
|
24
|
24
93102-25M34-00 Oil Seal．ＯＩＬ ＳＥＡＬ; |
93102-25M34-00 |
from US $14.56 |
||
|
25
|
25
93101-25M50-00 Oil Seal．ＯＩＬ ＳＥＡＬ; |
93101-25M50-00 |
from US $9.35 |
||
|
26
|
26
93210-46M16-00 O-Ring．Ｏ−ＲＩＮＧ; |
93210-46M16-00 |
from US $3.64 |
||
|
27
|
27
90430-06M03-00 Gasket．ＧＡＳＫＥＴ; |
90430-06M03-00 |
from US $1.34 |
||
|
28
|
28
6R8-W0093-00-00 Carb. Repair KitＣＡＲＢＵＲＥＴＯＲ ＲＥＰＡＩＲ ＫＩＴ; |
6R8-W0093-00-00 |
US $112.23 |
||
|
29
|
29
6K8-14562-00-00 O-Ring．Ｏ−ＲＩＮＧ; |
6K8-14562-00-00 |
from US $1.34 |
||
|
30
|
30
6K8-14946-10-00 Plate, Needle Fitting．ＰＬＡＴＥ， ＮＥＥＤＬＥ ＦＩＴＴＩＮＧ; |
6K8-14946-10-00 |
from US $21.82 |
||
|
31
|
31
6K8-14536-11-00 Gasket．ＧＡＳＫＥＴ; |
6K8-14536-11-00 |
from US $7.37 |
||
|
32
|
32
583-14561-00-00 O-Ring．Ｏ−ＲＩＮＧ; |
583-14561-00-00 |
from US $2.66 |
||
|
33
|
33
6K8-14537-00-00 Gasket．ＧＡＳＫＥＴ; |
6K8-14537-00-00 |
from US $3.26 |
||
|
34
|
34
6K8-24435-10-00
Gasket, Body 2
．ＧＡＳＫＥＴ， ＢＯＤＹ ２; |
6K8-24435-10-00 |
— | ||
|
35
|
35
6K8-24431-10-00 Gasket, Fuel Pump 1．ＧＡＳＫＥＴ， ＦＵＥＬ ＰＵＭＰ １; |
6K8-24431-10-00 |
from US $9.63 |
||
|
36
|
36
6K8-14923-10-00
Screw, Pilot
．ＳＣＲＥＷ， ＰＩＬＯＴ; |
6K8-14923-10-00 |
— | ||
|
37
|
37
6K8-14559-00-00 Washer．ＷＡＳＨＥＲ; |
6K8-14559-00-00 |
from US $3.26 |
||
|
38
|
38
6R7-14541-00-00 Diaphragm, Pump．ＤＩＡＰＨＲＡＧＭ， ＰＵＭＰ; |
6R7-14541-00-00 |
from US $24.09 |
||
|
39
|
39
6K8-24411-10-00 Diaphragm．ＤＩＡＰＨＲＡＧＭ; |
6K8-24411-10-00 |
from US $38.96 |
||
|
40
|
40
6K8-24421-10-00 Valve, Check．ＶＡＬＶＥ， ＣＨＥＣＫ; |
6K8-24421-10-00 |
from US $17.28 |
||
|
41
|
41
6K8-14916-15-00 Jet Needle Comp．ＮＥＥＤＬＥ; |
6K8-14916-15-00 |
from US $19.69 |
||
| replacement | |||||
|
41
|
41
61X-14916-16-00 Jet Needle Comp．ＮＥＥＤＬＥ; |
61X-14916-16-00 |
from US $19.69 |
||
