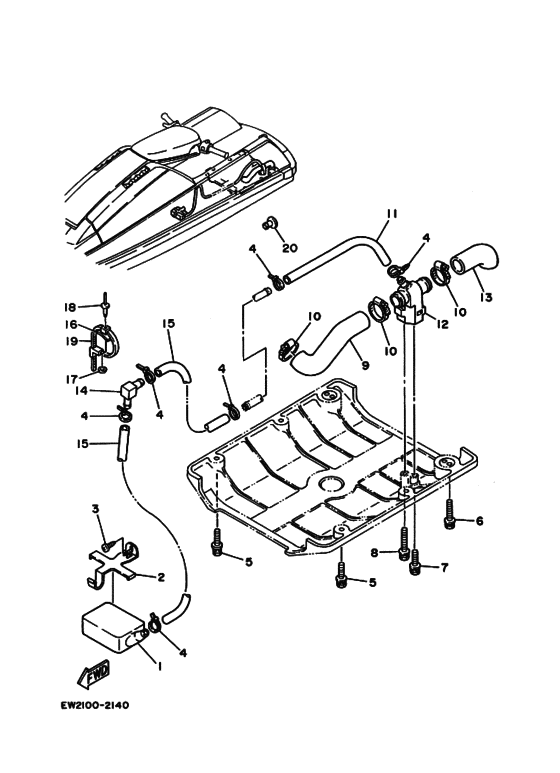

Hull. deck 3 Diagram Yamaha SJ650
- Model code
- EW2C
- Engine Capacity
- 650
- Year
- 1992
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
EU0-67613-00-00 StrainerＳＴＲＡＩＮＥＲ， ＢＩＬＧＥ; |
EU0-67613-00-00 |
from US $29.84 |
||
| replacement | |||||
|
1
|
1
F4R-6761D-00-00 ＳＴＲＡＩＮＥＲ， ＢＩＬＧＥ; |
F4R-6761D-00-00 |
from US $37.99 |
||
|
2
|
2
EW2-67618-00-00 Base, Strainer BligeＢＡＳＥ， ＳＴＲＡＩＮＥＲ ＢＩＬＧＥ; |
EW2-67618-00-00 |
from US $24.51 |
||
|
3
|
3
97780-50114-00 Screw, TappingＳＣＲＥＷ， Ｐ／Ｈ ＴＡＰＰＩＮＧ; |
97780-50114-00 |
US $1.84 |
||
| replacement | |||||
|
3
|
3
977-80505-14-00 Screw, TappingＳＣＲＥＷ， Ｐ／Ｈ ＴＡＰＰＩＮＧ; |
977-80505-14-00 |
from US $1.84 |
||
|
4
|
4
90465-13M11-00 ClampＣＬＡＭＰ; |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
4
|
4
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.21 |
||
|
5
|
5
90119-06915-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06915-00 |
from US $4.68 |
||
| replacements | |||||
|
5
|
5
901-19069-29-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
901-19069-29-00 |
from US $4.68 |
||
|
5
|
5
901-19068-96-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
901-19068-96-00 |
from US $2 |
||
|
6
|
6
90119-06914-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06914-00 |
from US $3.26 |
||
|
7
|
7
90119-06915-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06915-00 |
from US $4.68 |
||
| replacements | |||||
|
7
|
7
901-19069-29-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
901-19069-29-00 |
from US $4.68 |
||
|
7
|
7
901-19068-96-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
901-19068-96-00 |
from US $2 |
||
|
8
|
8
90119-06919-00
Bolt, W/washer
ＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06919-00 |
— | ||
|
9
|
9
6R7-51161-00-00 Hose, SplasherＨＯＳＥ， ＰＬＡＳＨＥＲ; |
6R7-51161-00-00 |
US $33.34 |
||
|
10
|
10
90460-18M08-00 Hose Clamp AssyＣＬＡＭＰ， ＨＯＳＥ; |
90460-18M08-00 |
US $34 |
||
| replacement | |||||
|
10
|
10
90450-32097-00 Hose Clamp AssyＣＬＡＭＰ， ＨＯＳＥ; |
90450-32097-00 |
from US $19.22 |
||
|
11
|
11
90445-14M02-00 Hose (L280)ＨＯＳＥ; |
90445-14M02-00 |
US $11.33 |
||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
ＨＯＳＥ; |
999-99999-99-00 |
— | ||
|
12
|
12
6K8-7610K-00-00 Body, ValveＢＯＤＹ， ＶＡＬＵＥ; |
6K8-7610K-00-00 |
US $30.80 |
||
| replacement | |||||
|
12
|
12
6K8-7610K-01-00 Body,valveＢＯＤＹ， ＶＡＬＵＥ; |
6K8-7610K-01-00 |
US $30.80 |
||
|
13
|
13
6K8-51141-00-00 Hose SuctionＨＯＳＥ ＳＵＣＴＩＯＮ; |
6K8-51141-00-00 |
US $35.89 |
||
|
14
|
14
6K8-51162-00-00 Joint, HoseＪＯＩＮＴ， ＨＯＳＥ; |
6K8-51162-00-00 |
from US $4.68 |
||
|
15
|
15
90445-14M04-00 HoseＨＯＳＥ; |
90445-14M04-00 |
from US $12.33 |
||
|
16
|
16
90600-91729-00 ClampＣＬＡＭＰ; |
90600-91729-00 |
from US $1.98 |
||
| replacement | |||||
|
16
|
16
90600-91736-00 Clamp Comp (Eu0)ＣＬＡＭＰ; |
90600-91736-00 |
from US $1.98 |
||
|
17
|
17
90201-05925-00
Washer, Plain
ＷＡＳＨＥＲ， ＰＬＡＩＮ; |
90201-05925-00 |
— | ||
|
18
|
18
90267-48007-00 Rivet, BlindＲＩＶＥＴ， ＢＬＩＮＤ; |
90267-48007-00 |
from US $1.69 |
||
|
19
|
19
90601-20006-00 Band, HoseＢＡＮＤ; |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
19
|
19
90601-20009-00 Band (Eu0)ＢＡＮＤ; |
90601-20009-00 |
from US $2.27 |
||
|
20
|
20
90338-09900-00 PlugＰＬＵＧ; |
90338-09900-00 |
US $9.29 |
||
