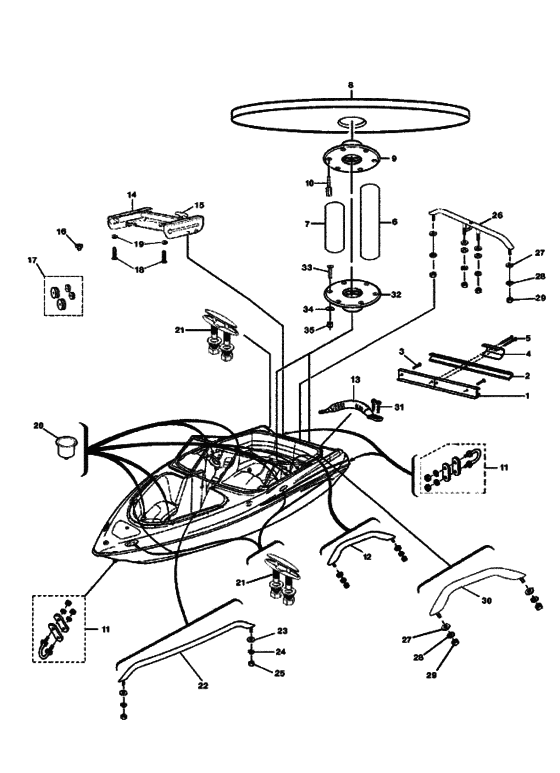

Hull deck fittings Diagram Yamaha SRT1100 SX230HO
- Model code
- SRT1100-E SX230HO
- Engine Capacity
- 2x1100
- Year
- 2006
- Sales region
- Europe (010)
- Colour
- White Coat 5 (WC5; GA5E)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F1C-U2557-00-00 GunwaleFOR RED HULL |
F1C-U2557-00-00 |
US $66.56 |
||
|
1
|
1
F1C-U2557-10-00 GunwaleFOR BLACK HULL |
F1C-U2557-10-00 |
from US $91.10 |
||
|
2
|
2
F1C-U2519-00-00 Inner,gunwale |
F1C-U2519-00-00 |
US $289.55 |
||
|
3
|
3
901-6110S-20-00 Screw, #10 X 1-1/4 |
901-6110S-20-00 |
from US $1.70 |
||
|
4
|
4
F0R-U2518-00-00 Cover,gunwale |
F0R-U2518-00-00 |
from US $10.06 |
||
|
5
|
5
901-6210S-32-00 Screw, Tapping |
901-6210S-32-00 |
from US $1.17 |
||
|
6
|
6
F1C-U4814-00-00 Stanchion,table 1 |
F1C-U4814-00-00 |
US $54.65 |
||
|
7
|
7
F1C-U4815-00-00 Stanchion,table 2 |
F1C-U4815-00-00 |
US $76.93 |
||
|
8
|
8
F1U-U4811-00-00 Table |
F1U-U4811-00-00 |
from US $531.09 |
||
|
9
|
9
F1C-U4826-00-00 Brkt., Table 2 |
F1C-U4826-00-00 |
US $85.03 |
||
|
10
|
10
901-6212S-A1-00 Screw, Tapping |
901-6212S-A1-00 |
from US $2.55 |
||
|
11
|
11
GP1-U1624-00-00
Bow Eye 1
|
GP1-U1624-00-00 |
— | ||
|
12
|
12
F1U-U270B-00-00 Grip Assy |
F1U-U270B-00-00 |
US $67.73 |
||
| replacement | |||||
|
12
|
12
F3H-U270B-10-00 Grip Assy |
F3H-U270B-10-00 |
from US $80.98 |
||
|
13
|
13
F1C-U1552-00-00 Handle |
F1C-U1552-00-00 |
from US $26.44 |
||
| replacement | |||||
|
13
|
13
F1C-U1552-01-00 Handle |
F1C-U1552-01-00 |
from US $20.23 |
||
|
14
|
14
F1C-U2425-01-00 Ladder, Transom |
F1C-U2425-01-00 |
US $494.08 |
||
|
15
|
15
F1C-U5191-00-00 Band, Boarding Ladder |
F1C-U5191-00-00 |
from US $44.21 |
||
|
16
|
16
F1C-U3768-00-00 Cushion, RubberYMUS |
F1C-U3768-00-00 |
from US $6.52 |
||
|
17
|
17
F1C-U2155-00-00 Cap |
F1C-U2155-00-00 |
from US $20.23 |
||
|
18
|
18
901-01088-02-00 Bolt |
901-01088-02-00 |
from US $6.16 |
||
|
19
|
19
9299R-08600-00 Washer |
9299R-08600-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
20
|
20
GP1-U5633-00-00 Holder, DrinkYMUS |
GP1-U5633-00-00 |
from US $4.50 |
||
|
21
|
21
F1C-U1616-10-00 Cleat |
F1C-U1616-10-00 |
from US $127.55 |
||
|
22
|
22
F1C-U2767-00-00
Hand Rail
|
F1C-U2767-00-00 |
— | ||
|
23
|
23
90201-099U1-00 Washer, Plate |
90201-099U1-00 |
from US $7.51 |
||
|
24
|
24
902-0415S-00-00 Washer, SpringYMUS |
902-0415S-00-00 |
US $7.83 |
||
|
25
|
25
901-7015S-00-00 Nut |
901-7015S-00-00 |
from US $4.04 |
||
|
26
|
26
F1C-U270B-00-00 Grip Assy |
F1C-U270B-00-00 |
from US $202.48 |
||
|
27
|
27
90201-099U1-00 Washer, Plate |
90201-099U1-00 |
from US $7.51 |
||
|
28
|
28
902-0415S-00-00 Washer, Spring |
902-0415S-00-00 |
US $7.83 |
||
|
29
|
29
901-7015S-00-00 Nut |
901-7015S-00-00 |
from US $4.04 |
||
|
30
|
30
F1C-U270B-10-00 Grip Assy |
F1C-U270B-10-00 |
US $201.13 |
||
|
31
|
31
901-6708S-12-00 Screw, Tapping#8 X 3/4 PPH |
901-6708S-12-00 |
from US $2.83 |
||
|
32
|
32
F1C-U4825-00-00 Bracket, Table |
F1C-U4825-00-00 |
US $95.15 |
||
|
33
|
33
901-5214S-28-00 Screw, Countersunk |
901-5214S-28-00 |
from US $3.26 |
||
|
34
|
34
902-0914S-A2-00 Washer |
902-0914S-A2-00 |
from US $1.98 |
||
|
35
|
35
901-8514S-00-00 Nut, Self-Locking1/4-20 |
901-8514S-00-00 |
from US $3.54 |
||
