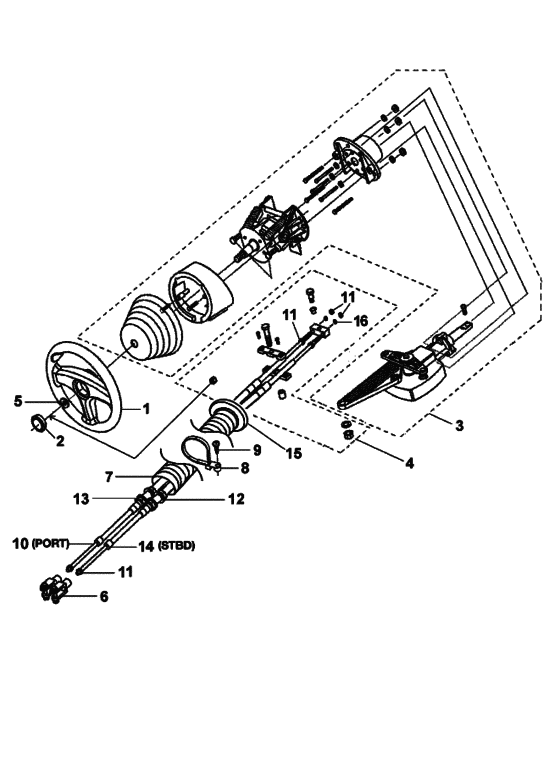

Steering Diagram Yamaha SRT1100 SX230HO
- Model code
- SRT1100-E SX230HO
- Engine Capacity
- 2x1100
- Year
- 2006
- Sales region
- Europe (010)
- Colour
- White Coat 5 (WC5; GA5E)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F1C-U1511-10-00 Wheel, Steering |
F1C-U1511-10-00 |
from US $293.60 |
||
|
2
|
2
F1C-U143J-10-00 Cover, Steering Wheel |
F1C-U143J-10-00 |
from US $30.35 |
||
|
3
|
3
F1C-U1400-01-00 Steering Master Assy |
F1C-U1400-01-00 |
US $586.53 |
||
| replacement | |||||
|
3
|
3
F2D-U1400-00-00 Steering Master Assy |
F2D-U1400-00-00 |
from US $423.20 |
||
|
4
|
4
GP1-U1301-00-00 Twin KitHARDWARE |
GP1-U1301-00-00 |
from US $101.23 |
||
|
5
|
5
F0R-U1446-00-00 Washer |
F0R-U1446-00-00 |
from US $2.98 |
||
|
6
|
6
GP1-U1406-00-00 Connector Sub-Assy |
GP1-U1406-00-00 |
from US $155.90 |
||
|
7
|
7
F1C-U773J-20-00 Protector, Hose |
F1C-U773J-20-00 |
US $3.82 |
||
|
8
|
8
904-61448-01-00
Clamp
|
904-61448-01-00 |
— | ||
|
9
|
9
901-6708S-12-00 Screw, Tapping#8 X 3/4 PPH |
901-6708S-12-00 |
from US $2.83 |
||
|
10
|
10
F0R-U1470-10-00 Steering Cable AssyPORT |
F0R-U1470-10-00 |
US $453.50 |
||
|
11
|
11
901-7015S-A1-00 Nut |
901-7015S-A1-00 |
from US $9.09 |
||
|
12
|
12
901-7021S-00-00 Nut |
901-7021S-00-00 |
from US $17.19 |
||
|
13
|
13
902-0121S-00-00 Washer, Plate |
902-0121S-00-00 |
from US $2.55 |
||
|
14
|
14
F1C-U1470-10-00 Steering Cable AssySTBD |
F1C-U1470-10-00 |
US $273.35 |
||
|
15
|
15
GP1-U136D-00-00
Grommet
|
GP1-U136D-00-00 |
— | ||
|
16
|
16
902-0415S-00-00 Washer, Spring |
902-0415S-00-00 |
US $7.83 |
||
