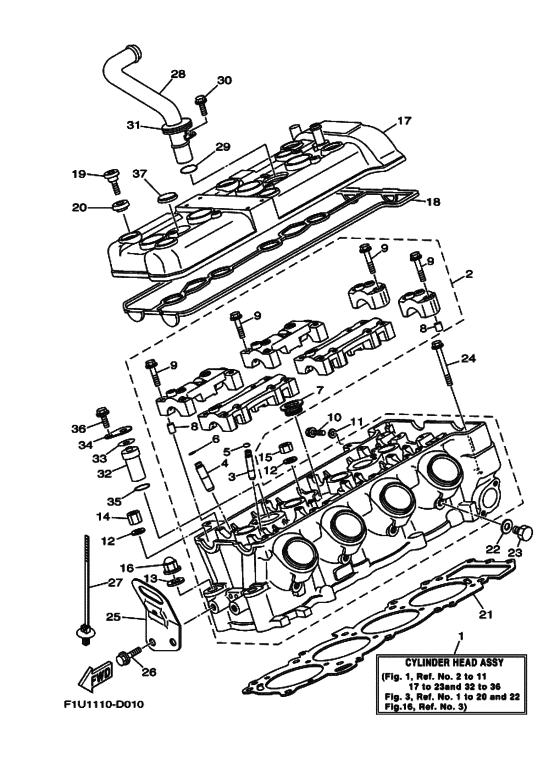

Cylinder head Diagram Yamaha SRT1100 SX230HO
- Model code
- SRT1100A-E SX230HO
- Engine Capacity
- 2x1100
- Year
- 2006
- Sales region
- Europe (020)
- Colour
- White Coat 5 (WC5; GA5E)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6B6-11102-00-94
Cylinder Head Assy
|
6B6-11102-00-94 |
— | ||
| replacement | |||||
|
1
|
1
6B6-11102-00-00 Cylinder Head Assy |
6B6-11102-00-00 |
US $4,187.33 |
||
|
2
|
2
6B6-W009A-00-94 Cylinder Head Complete |
6B6-W009A-00-94 |
from US $4,200.37 |
||
| replacement | |||||
|
2
|
2
6B6-W009A-01-94 |
6B6-W009A-01-94 |
US $7,766.98 |
||
|
3
|
3
3TJ-11133-10-00 Guide, ValveINTAKE |
3TJ-11133-10-00 |
from US $35.72 |
||
|
4
|
4
1WG-11133-11-00 Guide, ValveEXHAUST |
1WG-11133-11-00 |
from US $38.70 |
||
|
5
|
5
93440-07149-00 Circlip |
93440-07149-00 |
from US $1.98 |
||
|
6
|
6
93440-10153-00 Circlip |
93440-10153-00 |
from US $1.66 |
||
|
7
|
7
90340-27001-00 Plug, Straight Screw |
90340-27001-00 |
from US $12.57 |
||
|
8
|
8
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.34 |
||
|
9
|
9
90105-06026-00 Bolt, Flange |
90105-06026-00 |
from US $1.56 |
||
|
10
|
10
95023-06012-00 Bolt, Flange (Small Head) |
95023-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
95024-06012-00 Bolt, Flange (Small Head) |
95024-06012-00 |
from US $1.56 |
||
|
11
|
11
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
12
|
12
902-01100-13-00 Washer, Plate |
902-01100-13-00 |
from US $2.69 |
||
| replacement | |||||
|
12
|
12
90201-10033-00 Washer, Plate |
90201-10033-00 |
from US $2.69 |
||
|
13
|
13
90201-10019-00 Washer, Plate |
90201-10019-00 |
from US $6.23 |
||
|
14
|
14
90179-10006-00 Nut |
90179-10006-00 |
from US $7.93 |
||
|
15
|
15
901-79140-14-00
Nut
|
901-79140-14-00 |
— | ||
|
16
|
16
90176-10001-00 Nut, Crown |
90176-10001-00 |
from US $3.97 |
||
|
17
|
17
6B6-11191-01-94 Cover, Cylinder Head 1 |
6B6-11191-01-94 |
from US $200.11 |
||
| replacement | |||||
|
17
|
17
6B6-11191-02-94 Cover, Cylinder Head 1 |
6B6-11191-02-94 |
from US $230.83 |
||
|
18
|
18
60E-11193-01-00 Gasket, Head Cover 1 |
60E-11193-01-00 |
from US $35.38 |
||
|
19
|
19
90109-066F0-00 Bolt |
90109-066F0-00 |
from US $3.32 |
||
|
20
|
20
4KG-1111G-00-00
Rubber, Mount 1
|
4KG-1111G-00-00 |
— | ||
| replacement | |||||
|
20
|
20
5EA-1111G-00-00 Rubber, Mount 1 |
5EA-1111G-00-00 |
from US $7.28 |
||
|
21
|
21
6B6-11181-00-00 Gasket, Cylinder Head 1 |
6B6-11181-00-00 |
from US $93.24 |
||
|
22
|
22
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
23
|
23
923-80060-12-00 Bolt |
923-80060-12-00 |
US $1.56 |
||
|
24
|
24
97513-06555-00 Bolt, With Washer |
97513-06555-00 |
from US $2.83 |
||
|
25
|
25
60E-1111E-00-00 Hanger, Engine 2 |
60E-1111E-00-00 |
from US $27.49 |
||
|
26
|
26
97513-08520-00 Bolt, With Washer |
97513-08520-00 |
from US $1.98 |
||
| replacement | |||||
|
26
|
26
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
27
|
27
90464-20005-00 Clamp |
90464-20005-00 |
from US $2.55 |
||
|
28
|
28
6B6-12482-00-00 Pipe 2 |
6B6-12482-00-00 |
from US $61.62 |
||
|
29
|
29
932-10184-17-00 O-Ring |
932-10184-17-00 |
from US $1.70 |
||
|
30
|
30
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
31
|
31
60E-12494-00-00 Seal, Pipe 1 |
60E-12494-00-00 |
from US $7.37 |
||
|
32
|
32
60E-12482-10-00
Pipe 3
|
60E-12482-10-00 |
— | ||
|
33
|
33
60E-12474-00-00 Gasket 1 |
60E-12474-00-00 |
from US $1.80 |
||
| replacement | |||||
|
33
|
33
60E-12474-01-00 |
60E-12474-01-00 |
US $6.16 |
||
|
34
|
34
60E-12537-00-00 Plate 2 |
60E-12537-00-00 |
from US $2.34 |
||
| replacement | |||||
|
34
|
34
60E-12537-01-00 Plate 2 |
60E-12537-01-00 |
from US $3.68 |
||
|
35
|
35
932-10184-17-00 O-Ring |
932-10184-17-00 |
from US $1.70 |
||
|
36
|
36
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
37
|
37
60E-12495-00-00 Seal, Pipe 2 |
60E-12495-00-00 |
from US $7.23 |
||
