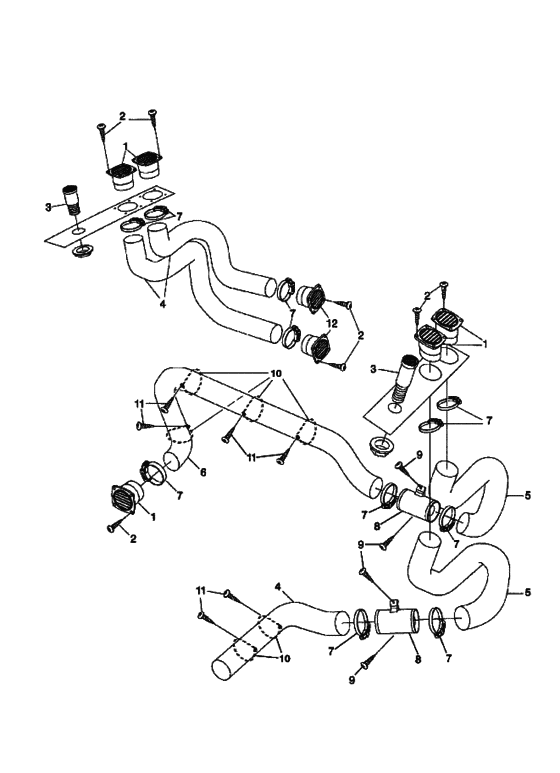

Ventilation system Diagram Yamaha SRT1100 SX230HO
- Model code
- SRT1100A-E SX230HO
- Engine Capacity
- 2x1100
- Year
- 2006
- Sales region
- Europe (020)
- Colour
- White Coat 5 (WC5; GA5E)
- Color Variant
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GP1-U2131-00-00 Ventilator |
GP1-U2131-00-00 |
US $21.15 |
||
|
2
|
2
90162-08S12-00 Screw, TappingYMUS |
90162-08S12-00 |
from US $1.70 |
||
|
3
|
3
F1C-U2131-00-00 Ventilator |
F1C-U2131-00-00 |
from US $24.28 |
||
|
4
|
4
F1C-U213F-00-00 Hose, Ventilator 1 |
F1C-U213F-00-00 |
US $16.29 |
||
|
5
|
5
F1C-U213F-12-00 Hose, Ventilator 1 |
F1C-U213F-12-00 |
US $11.99 |
||
|
6
|
6
F1C-U213F-23-00 Hose, Ventilator 1 |
F1C-U213F-23-00 |
from US $31.37 |
||
|
7
|
7
904-64998-05-00 Clamp |
904-64998-05-00 |
from US $8.32 |
||
|
8
|
8
F1C-U8340-00-00 Blower Assy |
F1C-U8340-00-00 |
from US $52.63 |
||
|
9
|
9
901-6910S-A1-00 Tapping Screw |
901-6910S-A1-00 |
from US $1.84 |
||
|
10
|
10
90601-200U8-00 BandYMUS |
90601-200U8-00 |
from US $6.43 |
||
|
11
|
11
901-6708S-12-00 Screw, Tapping#8 X 3/4 PPH |
901-6708S-12-00 |
from US $2.83 |
||
|
12
|
12
F1C-U7851-00-00 Vent, Air |
F1C-U7851-00-00 |
from US $2.54 |
