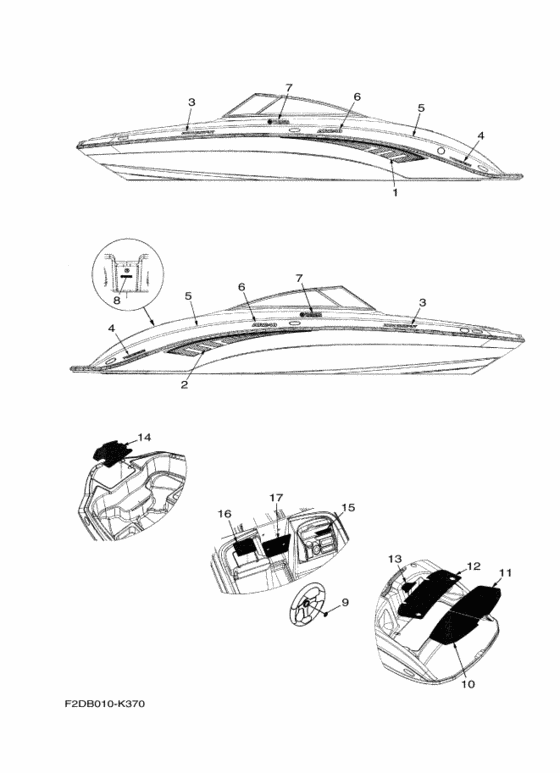

Graphics & mats Diagram Yamaha SXT1800 SX240 HO (AR240 HO)
- Model code
- F2DB
- Engine Capacity
- 2x1800
- Year
- 2011
- Sales region
- Japan (019)
- Colour
- Black Coat 2 (SC2; GA7C)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2D-U417B-A0-00
Graphic 1
ＧＲＡＰＨＩＣ １; |
F2D-U417B-A0-00 |
— | ||
|
2
|
2
F2D-U417C-A0-00
Graphic 2
ＧＲＡＰＨＩＣ ２; |
F2D-U417C-A0-00 |
— | ||
|
3
|
3
F2D-U4121-60-00
Emblem A
ＥＭＢＬＥＭ Ａ; |
F2D-U4121-60-00 |
— | ||
|
4
|
4
F2D-U417T-50-00
Graphic H
ＧＲＡＰＨＩＣ Ｈ; |
F2D-U417T-50-00 |
— | ||
|
5
|
5
F2D-U4194-10-00 Graphic BＧＲＡＰＨＩＣ Ｂ; |
F2D-U4194-10-00 |
US $83 |
||
|
6
|
6
F2D-U4125-60-00
Emblem
ＥＭＢＬＥＭ; |
F2D-U4125-60-00 |
— | ||
|
7
|
7
F2D-U4114-00-00 Mark, Yamaha AＭＡＲＫ， ＹＡＭＡＨＡ Ａ; |
F2D-U4114-00-00 |
from US $50.60 |
||
|
8
|
8
F1U-U4115-00-00 Mark, Yamaha 2ＭＡＲＫ， ＹＡＭＡＨＡ ２; |
F1U-U4115-00-00 |
from US $10.10 |
||
|
9
|
9
F0C-U411H-00-00 Emblem, Tuning ForkＥＭＢＬＥＭ， ＴＵＮＩＮＧ ＦＯＲＫ; |
F0C-U411H-00-00 |
from US $7.92 |
||
|
10
|
10
F2D-U351H-10-00 Mat, Step 1ＭＡＴ， ＳＴＥＰ １; |
F2D-U351H-10-00 |
from US $236.90 |
||
|
11
|
11
F2D-U351J-10-00 Mat, Step 2ＭＡＴ， ＳＴＥＰ ２; |
F2D-U351J-10-00 |
from US $180.20 |
||
|
12
|
12
F2D-U351K-10-00 Mat, Step 3ＭＡＴ， ＳＴＥＰ ３; |
F2D-U351K-10-00 |
from US $215.96 |
||
| replacement | |||||
|
12
|
12
F2D-U351K-11-00 Mat, Step 3ＭＡＴ， ＳＴＥＰ ３; |
F2D-U351K-11-00 |
from US $249.05 |
||
|
13
|
13
F2D-U351M-10-00 Mat, Step 4ＭＡＴ， ＳＴＥＰ ４; |
F2D-U351M-10-00 |
from US $9.59 |
||
|
14
|
14
F2D-U351N-10-00 Mat, Step 5ＭＡＴ， ＳＴＥＰ ５; |
F2D-U351N-10-00 |
from US $83 |
||
|
15
|
15
F2D-U358F-00-00 Mat, Upper LhＭＡＴ， ＵＰＰＥＲ ＬＨ; |
F2D-U358F-00-00 |
from US $16.18 |
||
|
16
|
16
F2D-U3581-00-00 Mat, UpperＭＡＴ， ＵＰＰＥＲ; |
F2D-U3581-00-00 |
from US $34.40 |
||
|
17
|
17
F2D-U351R-10-00 Mat, Step 7ＭＡＴ， ＳＴＥＰ ７; |
F2D-U351R-10-00 |
from US $74.90 |
||
