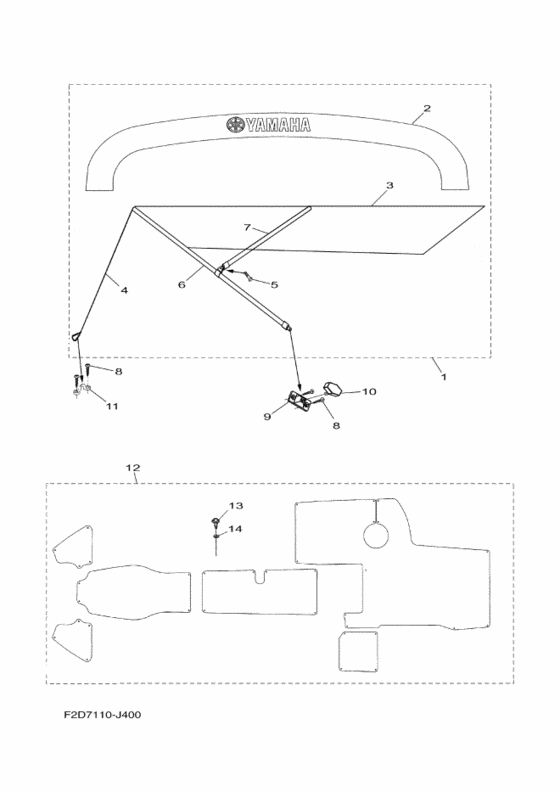

Bimini top / carpet Diagram Yamaha SXT1800 SX240 HO (AR240 HO)
- Model code
- F2DF
- Engine Capacity
- 2x1800
- Year
- 2011
- Sales region
- Europe (020)
- Colour
- Dark Purplish Blue Coat 8 (DPBC8; GA8N)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2D-U3104-21-00 Awning, Canvas Set |
F2D-U3104-21-00 |
US $1,531.89 |
||
|
2
|
2
F2D-U3119-20-00 Cover |
F2D-U3119-20-00 |
US $345.13 |
||
| replacement | |||||
|
2
|
2
F2D-U3119-21-00 Cover |
F2D-U3119-21-00 |
from US $407 |
||
|
3
|
3
F2D-U3131-21-00 Canvas, Awning |
F2D-U3131-21-00 |
US $1,107.31 |
||
|
4
|
4
F2A-U3121-00-00 Belt, Awning 1 |
F2A-U3121-00-00 |
from US $137.33 |
||
|
5
|
5
901-4914S-D0-00 Screw |
901-4914S-D0-00 |
from US $3.60 |
||
|
6
|
6
F2D-U3111-20-00
Pipe, Awning 1
|
F2D-U3111-20-00 |
— | ||
|
7
|
7
F2D-U3112-20-00 Pipe, Awning 2 |
F2D-U3112-20-00 |
from US $520.40 |
||
|
8
|
8
901-6110S-08-00 Screw, Tapping |
901-6110S-08-00 |
from US $1.47 |
||
|
9
|
9
F2A-U3142-10-00
Bracket, Awning 2
|
F2A-U3142-10-00 |
— | ||
|
10
|
10
F1T-U724D-00-00 Screw, Knob |
F1T-U724D-00-00 |
from US $9.76 |
||
|
11
|
11
F2D-U1543-00-00 Eye Strap |
F2D-U1543-00-00 |
from US $20.23 |
||
|
12
|
12
F2D-U3908-30-00 Carpet Set |
F2D-U3908-30-00 |
US $849.10 |
||
| replacement | |||||
|
12
|
12
F2D-U3908-31-00 CUSHION, FORE 1 |
F2D-U3908-31-00 |
US $849.10 |
||
|
13
|
13
F1C-U5192-00-00 Snap |
F1C-U5192-00-00 |
from US $4.39 |
||
|
14
|
14
902-0206S-A1-00 Washer, Plate |
902-0206S-A1-00 |
from US $3.54 |
||
