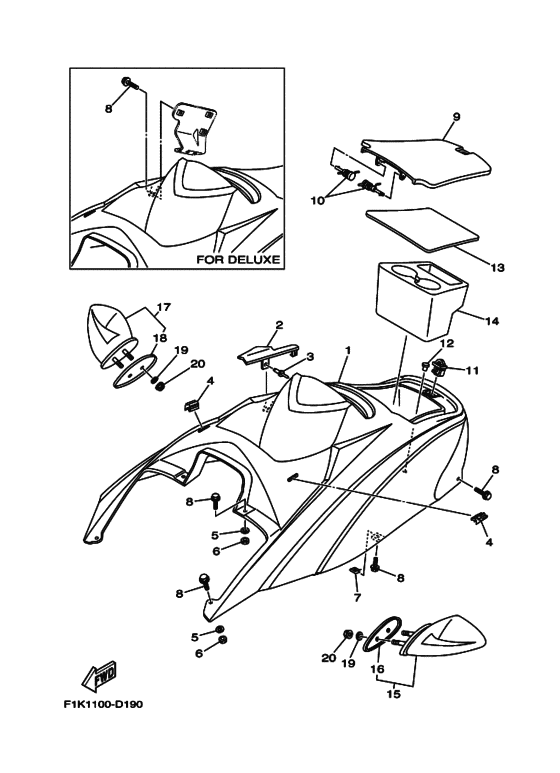

Engine hatch 1 Diagram Yamaha VX1100
- Model code
- F1K4
- Engine Capacity
- 1100
- Year
- 2005
- Sales region
- Europe (020)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F1K-U516N-02-P0 Cover, Engine HatchUR FOR RED, YMUS |
F1K-U516N-02-P0 |
from US $888.07 |
||
| replacement | |||||
|
1
|
1
F1K-U516N-03-P0 Cover, Engine HatcUR FOR RED, YMUS |
F1K-U516N-03-P0 |
from US $888.07 |
||
|
2
|
2
F1K-U2723-00-00 SealSPORT, YMUS |
F1K-U2723-00-00 |
US $159.95 |
||
|
3
|
3
90269-09805-00 RivetSPORT, YMUS |
90269-09805-00 |
from US $3.29 |
||
|
4
|
4
F1K-U266C-00-00 Packing 4YMUS |
F1K-U266C-00-00 |
from US $1.80 |
||
|
5
|
5
9299R-06200-00 WasherYMUS |
9299R-06200-00 |
from US $1.07 |
||
|
6
|
6
9572R-06300-00 Nut, NylonYMUS |
9572R-06300-00 |
from US $1.84 |
||
|
7
|
7
90183-06902-00 Nut, Spring |
90183-06902-00 |
from US $6.23 |
||
|
8
|
8
90119-06858-00 Bolt, With WasherSPORT, YMUS |
90119-06858-00 |
from US $4.23 |
||
| replacement | |||||
|
8
|
8
901-19068-B8-00 Bolt, With WasherSPORT, YMUS |
901-19068-B8-00 |
from US $10.63 |
||
|
9
|
9
F1K-U517H-01-00
Lid Hatch
YMUS |
F1K-U517H-01-00 |
— | ||
|
10
|
10
F0X-6517R-01-00 Pin, Hinge |
F0X-6517R-01-00 |
from US $8.60 |
||
|
11
|
11
GU2-62875-01-00 Lock |
GU2-62875-01-00 |
US $33.15 |
||
| replacement | |||||
|
11
|
11
GU2-62875-02-00 Lock |
GU2-62875-02-00 |
from US $30.10 |
||
|
12
|
12
90605-502U1-00 Plug, BlindYMUS |
90605-502U1-00 |
from US $4.68 |
||
|
13
|
13
F1K-U519D-00-00 Packing CaseYMUS |
F1K-U519D-00-00 |
from US $19.22 |
||
|
14
|
14
F1K-U5633-02-00
Holder, Drink
YMUS |
F1K-U5633-02-00 |
— | ||
|
15
|
15
F1S-U596B-10-00 Mirror LhLH; DELUXE, YMUS |
F1S-U596B-10-00 |
from US $50.60 |
||
|
16
|
16
F0V-U471E-00-00 Spacer 1DELUXE, YMUS |
F0V-U471E-00-00 |
from US $48.58 |
||
|
17
|
17
F1S-U596C-10-00 Mirror RhRH; DELUXE, YMUS |
F1S-U596C-10-00 |
from US $50.60 |
||
|
18
|
18
F0V-U471F-00-00 Spacer 2DELUXE, YMUS |
F0V-U471F-00-00 |
from US $48.58 |
||
|
19
|
19
9299R-08200-00 WasherDELUXE, YMUS |
9299R-08200-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
92990-08200-00 Washer, PlainDELUXE, YMUS |
92990-08200-00 |
from US $1.07 |
||
|
20
|
20
9572R-08300-00 Nut, FlangeDELUXE, YMUS |
9572R-08300-00 |
from US $4.11 |
||
| replacement | |||||
|
20
|
20
95780-08300-00 Nut, Nylon (6J8)DELUXE, YMUS |
95780-08300-00 |
from US $6.30 |
||
