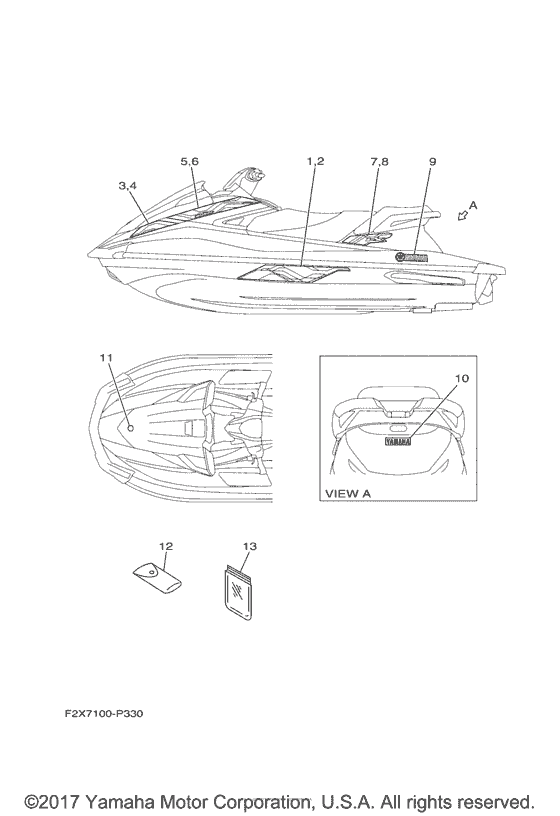

Graphics Diagram Yamaha VX1100
- Year
- 2015
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2X-U417B-40-00 Graphic 1 (Lh) |
F2X-U417B-40-00 |
from US $24.28 |
||
|
2
|
2
F2X-U417C-40-00 Graphic 2 (Rh) |
F2X-U417C-40-00 |
from US $20.99 |
||
|
3
|
3
F2X-U417D-40-00 Graphic 3 (Lh) |
F2X-U417D-40-00 |
from US $10.13 |
||
|
4
|
4
F2X-U417E-40-00 Graphic 4 (Rh) |
F2X-U417E-40-00 |
from US $11.14 |
||
|
5
|
5
F2X-U417F-40-00 Graphic 5 (Lh) |
F2X-U417F-40-00 |
from US $17.19 |
||
|
6
|
6
F2X-U417G-40-00 Graphic 6 (Rh) |
F2X-U417G-40-00 |
from US $13.25 |
||
|
7
|
7
F2X-U417H-40-00 Graphic 7 (Lh) |
F2X-U417H-40-00 |
from US $27.76 |
||
|
8
|
8
F2X-U417J-40-00 Graphic 8 (Rh) |
F2X-U417J-40-00 |
from US $15.17 |
||
|
9
|
9
F2N-U411C-00-00 Emblem, Yamaha |
F2N-U411C-00-00 |
from US $9.31 |
||
|
10
|
10
F1B-U411C-02-00 Emblem, Yamaha |
F1B-U411C-02-00 |
from US $26.30 |
||
|
11
|
11
F2S-6411H-00-00 Emblem, Tuning Fork |
F2S-6411H-00-00 |
from US $32.08 |
||
|
12
|
12
F1B-65986-13-00 Tool Set |
F1B-65986-13-00 |
from US $34.85 |
||
| replacement | |||||
|
12
|
12
F1B-65986-03-00 Tool Kit |
F1B-65986-03-00 |
from US $29.08 |
||
|
13
|
13
EU0-65901-02-00 Tool Bag |
EU0-65901-02-00 |
from US $13.55 |
||
| replacement | |||||
|
13
|
13
EU0-65901-03-00 Bag, Vinyl |
EU0-65901-03-00 |
from US $17.43 |
||
