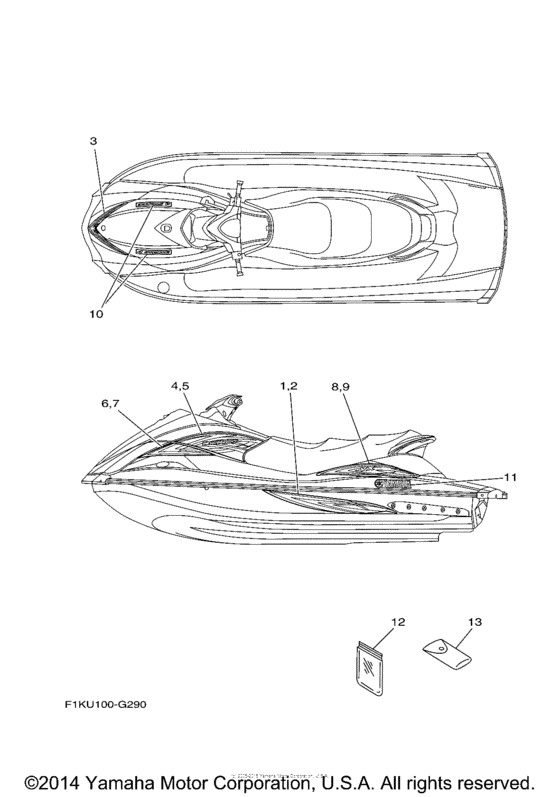

Graphics Diagram Yamaha VX1100 Wave Runner VX1100
- Engine Capacity
- 1100
- Year
- 2008
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F1K-U417B-E0-00 Graphic, 1 (Lh)LH VX SPORT |
F1K-U417B-E0-00 |
US $33.07 |
||
|
2
|
2
F1K-U417C-E0-00 Graphic, 2 (Rh)RH VX SPORT |
F1K-U417C-E0-00 |
US $32.99 |
||
|
3
|
3
F1K-U417D-E0-00 Graphic 3VX SPORT |
F1K-U417D-E0-00 |
US $28.06 |
||
|
4
|
4
F1K-U417F-E0-00 Graphic, 5 (Lh)LH VX SPORT |
F1K-U417F-E0-00 |
US $36.63 |
||
|
4
|
4
F1K-U417F-F0-00 Graphic, 5 (Lh)LH VX |
F1K-U417F-F0-00 |
from US $52.06 |
||
|
5
|
5
F1K-U417G-F0-00 Graphic, 6 (Rh)RH VX |
F1K-U417G-F0-00 |
US $265.27 |
||
|
5
|
5
F1K-U417G-E0-00 Graphic, 6 (Rh)RH VX SPORT |
F1K-U417G-E0-00 |
US $40.99 |
||
|
6
|
6
F1K-U417H-F0-00 Graphic, 7 (Lh)LH VX |
F1K-U417H-F0-00 |
US $121.86 |
||
|
6
|
6
F1K-U417H-E0-00 Graphic, 7 (Lh)LH VX SPORT |
F1K-U417H-E0-00 |
US $50.92 |
||
|
7
|
7
F1K-U417J-E0-00 Graphic 8 (Rh)RH VX SPORT |
F1K-U417J-E0-00 |
US $47.99 |
||
|
7
|
7
F1K-U417J-F0-00 Graphic 8 (Rh)RH VX |
F1K-U417J-F0-00 |
US $45.29 |
||
|
8
|
8
F1K-U417K-E0-00 Graphic 9 (Lh)LH VX SPORT |
F1K-U417K-E0-00 |
US $31.99 |
||
|
8
|
8
F1K-U417K-F0-00 Graphic 9 (Lh)LH VX |
F1K-U417K-F0-00 |
US $26.26 |
||
|
9
|
9
F1K-U417L-E0-00 Graphic, B (Rh)VX SPORT |
F1K-U417L-E0-00 |
US $28.69 |
||
|
9
|
9
F1K-U417L-F0-00 Graphic, B (Rh)VX |
F1K-U417L-F0-00 |
US $26.26 |
||
|
10
|
10
F1K-U417M-F0-00 Graphic CVX |
F1K-U417M-F0-00 |
US $56.23 |
||
|
10
|
10
F1K-U417M-E0-00 Graphic CVX SPORT |
F1K-U417M-E0-00 |
US $91.26 |
||
|
11
|
11
F0V-U411C-10-00 Emblem, Yamaha |
F0V-U411C-10-00 |
from US $17.19 |
||
|
12
|
12
F1B-65986-00-00
Tool Set
|
F1B-65986-00-00 |
— | ||
| replacement | |||||
|
12
|
12
F1B-65986-03-00 Tool Kit |
F1B-65986-03-00 |
from US $29.08 |
||
|
13
|
13
EU0-65901-01-00
Tool Bag
|
EU0-65901-01-00 |
— | ||
| replacements | |||||
|
13
|
13
EU0-65901-02-00 Tool Bag |
EU0-65901-02-00 |
from US $13.55 |
||
|
13
|
13
EU0-65901-03-00 Bag, Vinyl |
EU0-65901-03-00 |
from US $17.43 |
||
