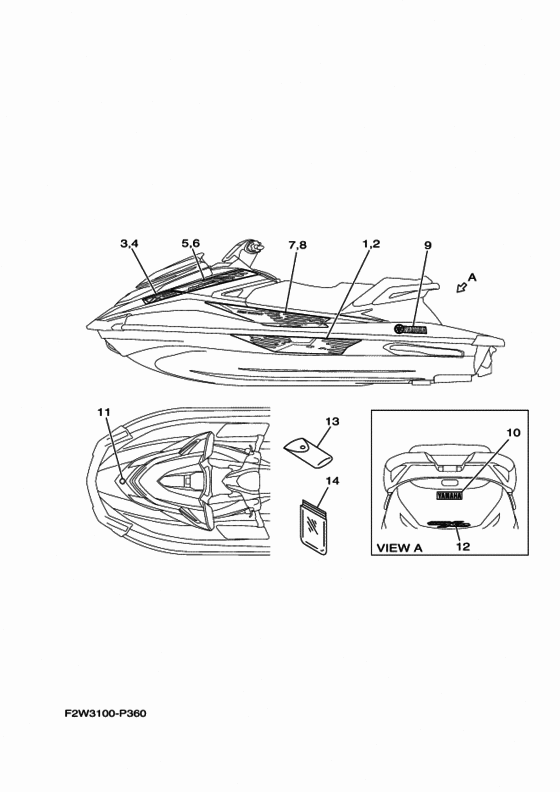

Graphics Diagram Yamaha VX1800
- Model code
- F2W4
- Engine Capacity
- 1800
- Year
- 2015
- Sales region
- Finland (010)
- Colour
- Dark Gray Metallic C
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
F2W-U417B-20-00 Graphic 1 (Lh) |
F2W-U417B-20-00 |
from US $23.18 |
||
|
2
|
2
F2W-U417C-20-00 Graphic 2 (Rh) |
F2W-U417C-20-00 |
from US $23.18 |
||
|
3
|
3
F2W-U417D-20-00 Graphic 3 (Lh) |
F2W-U417D-20-00 |
from US $20.23 |
||
|
4
|
4
F2W-U417E-20-00 Graphic 4 (Rh) |
F2W-U417E-20-00 |
from US $20.23 |
||
|
5
|
5
F2W-U417F-20-00 Graphic 5 (Lh) |
F2W-U417F-20-00 |
from US $17.19 |
||
|
6
|
6
F2W-U417G-20-00 Graphic 6 (Rh) |
F2W-U417G-20-00 |
from US $17.19 |
||
|
7
|
7
F2W-U417H-20-00 Graphic 7 (Lh) |
F2W-U417H-20-00 |
from US $34.40 |
||
|
8
|
8
F2W-U417J-20-00 Graphic 8 (Rh) |
F2W-U417J-20-00 |
from US $33.39 |
||
|
9
|
9
F2P-U411C-10-00 Emblem, Yamaha |
F2P-U411C-10-00 |
from US $28.33 |
||
|
10
|
10
F2P-U4114-10-00 Mark, Yamaha A |
F2P-U4114-10-00 |
from US $10.17 |
||
|
11
|
11
F2S-6411H-00-00 Emblem, Tuning Fork |
F2S-6411H-00-00 |
from US $42.97 |
||
|
12
|
12
F1W-U4121-00-00 Emblem A |
F1W-U4121-00-00 |
from US $9.18 |
||
|
13
|
13
F1B-65986-13-00 Tool Set |
F1B-65986-13-00 |
from US $34.85 |
||
| replacement | |||||
|
13
|
13
F1B-65986-03-00 Tool Kit |
F1B-65986-03-00 |
from US $29.08 |
||
|
14
|
14
EU0-65901-02-00 Tool Bag |
EU0-65901-02-00 |
from US $13.55 |
||
| replacement | |||||
|
14
|
14
EU0-65901-03-00 Bag, Vinyl |
EU0-65901-03-00 |
from US $17.43 |
||
