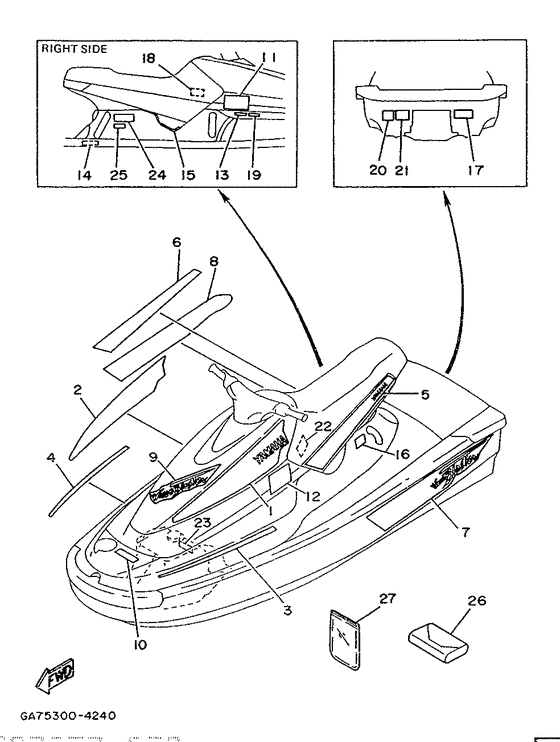

Graphic . tool Diagram Yamaha WB650
- Model code
- GA77
- Engine Capacity
- 650
- Year
- 1994
- Sales region
- Italy (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
GA7-6417B-00-00
Graphic, 1
|
GA7-6417B-00-00 |
— | ||
|
02
|
02
GA7-6417C-00-00
Graphic, 2
|
GA7-6417C-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
GA7-6417D-00-00
Graphic, 3
|
GA7-6417D-00-00 |
— | ||
|
04
|
04
GA7-6417E-00-00
Graphic, 4
|
GA7-6417E-00-00 |
— | ||
|
05
|
05
GA7-6417F-00-00
Graphic, 5
|
GA7-6417F-00-00 |
— | ||
|
06
|
06
GA7-6417G-00-00
Graphic, 6
|
GA7-6417G-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
GA7-6417H-00-00
Graphic 7
|
GA7-6417H-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
GA7-6417J-00-00
Graphic 8
|
GA7-6417J-00-00 |
— | ||
|
09
|
09
GA7-64121-00-00
Emblem A
|
GA7-64121-00-00 |
— | ||
|
10
|
10
GA7-6416B-20-00
Label, Warning
|
GA7-6416B-20-00 |
— | ||
|
11
|
11
GA7-6416C-20-00
Label, Warning 1
|
GA7-6416C-20-00 |
— | ||
|
12
|
12
GA7-6416C-30-00
Label, Warning 1
|
GA7-6416C-30-00 |
— | ||
|
13
|
13
GA7-6416F-20-00
Label, Warning 4
|
GA7-6416F-20-00 |
— | ||
|
14
|
14
GA7-6419B-20-00
Label 1
|
GA7-6419B-20-00 |
— | ||
|
15
|
15
GA7-6419C-00-00 Label,2 |
GA7-6419C-00-00 |
US $4.14 |
||
|
16
|
16
GA7-6419D-20-00
Label,3
|
GA7-6419D-20-00 |
— | ||
|
17
|
17
FJ0-6418G-A0-00 Label, Caution |
FJ0-6418G-A0-00 |
US $32.44 |
||
|
18
|
18
GA7-6418B-00-00 Label,caution |
GA7-6418B-00-00 |
from US $8.08 |
||
|
19
|
19
GA7-6418J-20-00
Label,caution
|
GA7-6418J-20-00 |
— | ||
|
20
|
20
FJ0-64188-00-00 Label, Righting |
FJ0-64188-00-00 |
US $6.14 |
||
| replacement | |||||
|
20
|
20
GK5-6418F-00-00 Label,righting |
GK5-6418F-00-00 |
US $6.14 |
||
|
21
|
21
FJ0-64161-E0-00
Label,warning 5
|
FJ0-64161-E0-00 |
— | ||
| replacement | |||||
|
21
|
21
GK5-6416G-20-00
Label,warning
|
GK5-6416G-20-00 |
— | ||
|
22
|
22
GA7-6418B-20-00
Label,caution
|
GA7-6418B-20-00 |
— | ||
|
23
|
23
GA7-6418D-00-00 Label,fuel Tank |
GA7-6418D-00-00 |
US $12.82 |
||
|
24
|
24
GA7-6418C-20-00
Label, Caution
|
GA7-6418C-20-00 |
— | ||
|
25
|
25
GA7-6416H-20-00
Label,warning(France)
|
GA7-6416H-20-00 |
— | ||
|
26
|
26
EU0-28100-01-00 Tool Set |
EU0-28100-01-00 |
from US $33.20 |
||
| replacements | |||||
|
26
|
26
EU0-65986-13-00 Tool Set |
EU0-65986-13-00 |
from US $33.20 |
||
|
26
|
26
EU0-65986-10-00 Tool Set |
EU0-65986-10-00 |
from US $33.20 |
||
|
27
|
27
EU0-65901-01-00
Tool Bag
|
EU0-65901-01-00 |
— | ||
| replacements | |||||
|
27
|
27
EU0-65901-02-00 Tool Bag |
EU0-65901-02-00 |
from US $13.55 |
||
|
27
|
27
EU0-65901-03-00 Bag, Vinyl |
EU0-65901-03-00 |
from US $17.43 |
||
