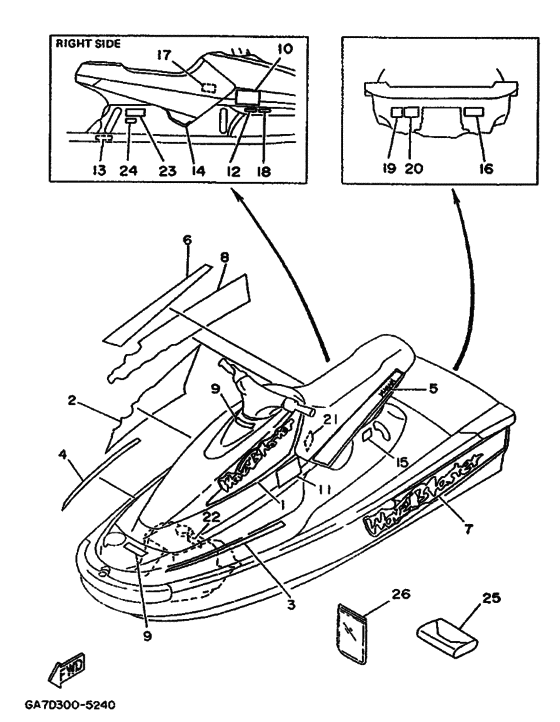

Graphic & tool Diagram Yamaha WB700
- Model code
- GA7D
- Engine Capacity
- 700
- Year
- 1995
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GA7-6417B-20-00
Graphic, 1
|
GA7-6417B-20-00 |
— | ||
|
2
|
2
GA7-6417C-20-00
Graphic, 2
|
GA7-6417C-20-00 |
— | ||
|
3
|
3
GA7-6417D-20-00
Graphic, 3
|
GA7-6417D-20-00 |
— | ||
|
4
|
4
GA7-6417E-20-00
Graphic, 4
|
GA7-6417E-20-00 |
— | ||
|
5
|
5
GA7-6417F-20-00
Graphic, 5
|
GA7-6417F-20-00 |
— | ||
|
6
|
6
GA7-6417G-20-00
Graphic, 6
|
GA7-6417G-20-00 |
— | ||
|
7
|
7
GA7-6417H-20-00 Graphic, 7 |
GA7-6417H-20-00 |
US $126.41 |
||
|
8
|
8
GA7-6417J-20-00
Graphic 8
|
GA7-6417J-20-00 |
— | ||
|
9
|
9
GA7-6416B-20-00
Label, Warning
|
GA7-6416B-20-00 |
— | ||
|
10
|
10
GA7-6416C-21-00
Label, Warning 1
|
GA7-6416C-21-00 |
— | ||
| replacement | |||||
|
10
|
10
GA7-6416C-22-00
Label, Warning 1
|
GA7-6416C-22-00 |
— | ||
|
11
|
11
GA7-6416C-30-00
Label, Warning 1
|
GA7-6416C-30-00 |
— | ||
|
12
|
12
GA7-6416F-20-00
Label, Warning 4
|
GA7-6416F-20-00 |
— | ||
|
13
|
13
GA7-6419B-20-00
Label 1
|
GA7-6419B-20-00 |
— | ||
|
14
|
14
GA7-6419C-00-00 Label,2 |
GA7-6419C-00-00 |
US $4.14 |
||
|
15
|
15
GA7-6419D-20-00
Label,3
|
GA7-6419D-20-00 |
— | ||
|
16
|
16
FJ0-6418G-A0-00 Label, Caution |
FJ0-6418G-A0-00 |
US $32.44 |
||
|
17
|
17
GA7-6418B-00-00 Label,caution |
GA7-6418B-00-00 |
from US $8.08 |
||
|
18
|
18
GA7-6418J-21-00
Label,caution
|
GA7-6418J-21-00 |
— | ||
|
19
|
19
FJ0-64188-00-00 Label, Righting |
FJ0-64188-00-00 |
US $6.14 |
||
| replacement | |||||
|
19
|
19
GK5-6418F-00-00 Label,righting |
GK5-6418F-00-00 |
US $6.14 |
||
|
20
|
20
FJ0-64161-E0-00
Label,warning 5
|
FJ0-64161-E0-00 |
— | ||
| replacement | |||||
|
20
|
20
GK5-6416G-20-00
Label,warning
|
GK5-6416G-20-00 |
— | ||
|
21
|
21
GA7-6418B-20-00
Label,caution
|
GA7-6418B-20-00 |
— | ||
|
22
|
22
GA7-6418D-00-00 Label,fuel Tank |
GA7-6418D-00-00 |
US $12.82 |
||
|
23
|
23
GA7-6418C-20-00
Label, Caution
|
GA7-6418C-20-00 |
— | ||
|
24
|
24
GA7-6416H-20-00
Label,warning(France)
|
GA7-6416H-20-00 |
— | ||
|
25
|
25
EU0-28100-02-00 Tool Kit |
EU0-28100-02-00 |
from US $33.20 |
||
| replacements | |||||
|
25
|
25
EU0-65986-13-00 Tool Set |
EU0-65986-13-00 |
from US $33.20 |
||
|
25
|
25
EU0-65986-10-00 Tool Set |
EU0-65986-10-00 |
from US $33.20 |
||
|
26
|
26
EU0-65901-01-00
Tool Bag
|
EU0-65901-01-00 |
— | ||
| replacements | |||||
|
26
|
26
EU0-65901-02-00 Tool Bag |
EU0-65901-02-00 |
from US $13.55 |
||
|
26
|
26
EU0-65901-03-00 Bag, Vinyl |
EU0-65901-03-00 |
from US $17.43 |
||
