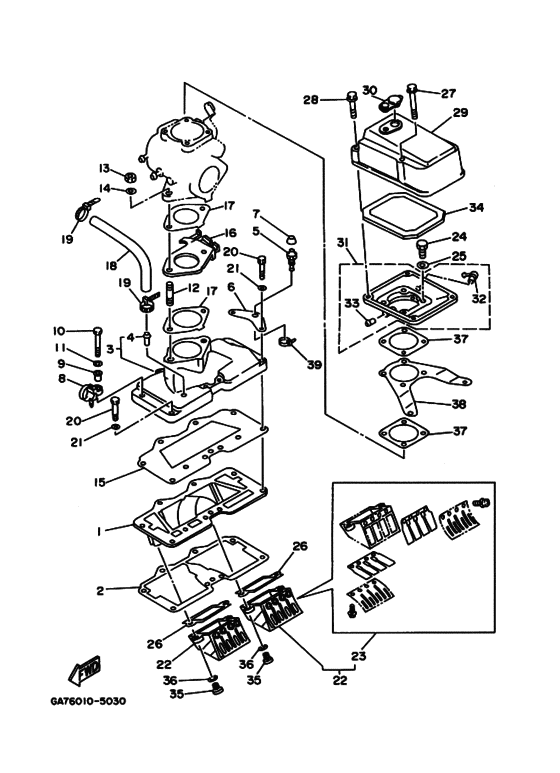

Intake Diagram Yamaha WB700 700TZ
- Model code
- GA7E
- Engine Capacity
- 700
- Year
- 1995
- Sales region
- Japan (010)
- Colour
- Vivid Red Solid C (VRSC; 0503)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61X-13641-01-94 Manifold, Intake 1ＭＡＮＩＦＯＬＤ １; |
61X-13641-01-94 |
US $99.91 |
||
|
2
|
2
61X-13566-A1-00 GasketＧＡＳＫＥＴ; |
61X-13566-A1-00 |
from US $14.03 |
||
|
3
|
3
61X-13555-01-94 Manifold, IntakeＭＡＮＩＦＯＬＤ， ＩＮＴＡＫＥ; |
61X-13555-01-94 |
US $203.08 |
||
| replacement | |||||
|
3
|
3
61X-13555-01-8P Manifold, IntakeＭＡＮＩＦＯＬＤ， ＩＮＴＡＫＥ; |
61X-13555-01-8P |
from US $120.48 |
||
|
4
|
4
650-24378-00-00
Pipe, Joint 4
．ＰＩＰＥ， ＪＯＩＮＴ ４; |
650-24378-00-00 |
— | ||
| replacements | |||||
|
4
|
4
652-24461-00-00 Pipe, Joint 4．ＰＩＰＥ， ＪＯＩＮＴ ４; |
652-24461-00-00 |
from US $3.97 |
||
|
4
|
4
6EE-F4377-00-00 Pipe, Joint 2．ＰＩＰＥ， ＪＯＩＮＴ ４; |
6EE-F4377-00-00 |
from US $3.33 |
||
|
5
|
5
61L-5169A-00-00 Nipple, GreaseＮＩＰＰＬＥ， ＧＲＥＡＳＥ; |
61L-5169A-00-00 |
from US $8.22 |
||
|
6
|
6
61L-14243-00-00
Plate
ＰＬＡＴＥ; |
61L-14243-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
ＰＬＡＴＥ; |
999-99999-99-00 |
— | ||
|
7
|
7
663-45119-00-00 Cap, Grease NippleＣＡＰ， ＧＲＥＡＳＥ ＮＩＰＰＬＥ; |
663-45119-00-00 |
US $3.89 |
||
|
8
|
8
90465-12M53-00 ClampＣＬＡＭＰ; |
90465-12M53-00 |
from US $3.38 |
||
|
9
|
9
90387-06M05-00 CollarＣＯＬＬＡＲ; |
90387-06M05-00 |
from US $5.97 |
||
|
10
|
10
973-95060-45-00
Bolt, Hexagon
ＢＯＬＴ; |
973-95060-45-00 |
— | ||
| replacement | |||||
|
10
|
10
970-80060-45-00 BoltＢＯＬＴ; |
970-80060-45-00 |
from US $4.56 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.18 |
||
|
12
|
12
90116-08M14-00 Bolt, StudＢＯＬＴ， ＳＴＵＤ; |
90116-08M14-00 |
from US $8.01 |
||
|
13
|
13
953-80086-00-00
Nut, Hex
ＮＵＴ; |
953-80086-00-00 |
— | ||
| replacements | |||||
|
13
|
13
997-80086-00-00 Nut, HexＮＵＴ; |
997-80086-00-00 |
from US $1.81 |
||
|
13
|
13
988-80081-00-00 Ybs55-8 Nut (644)ＮＵＴ; |
988-80081-00-00 |
from US $1.57 |
||
|
14
|
14
92990-08600-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
92990-08600-00 |
from US $1.66 |
||
|
15
|
15
61X-13563-A1-00 GasketＧＡＳＫＥＴ; |
61X-13563-A1-00 |
from US $6.91 |
||
|
16
|
16
6M6-14527-02-4D PlateＰＬＡＴＥ; |
6M6-14527-02-4D |
from US $18.36 |
||
| replacement | |||||
|
16
|
16
6M6-14527-02-94 PlateＰＬＡＴＥ; |
6M6-14527-02-94 |
from US $18.36 |
||
|
17
|
17
6M6-13556-A1-00 Gasket, ManifoldＧＡＳＫＥＴ， ＭＡＮＩＦＯＬＤ; |
6M6-13556-A1-00 |
from US $4.96 |
||
|
18
|
18
90445-10M48-00 HoseＨＯＳＥ; |
90445-10M48-00 |
US $6.38 |
||
| replacements | |||||
|
18
|
18
90445-10M43-00 Hose (L400)ＨＯＳＥ; |
90445-10M43-00 |
from US $6.94 |
||
|
18
|
18
999-99999-99-00
Not Available
ＨＯＳＥ; |
999-99999-99-00 |
— | ||
|
19
|
19
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
19
|
19
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.40 |
||
|
19
|
19
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
20
|
20
970-13060-35-00 Bolt, HexagonＢＯＬＴ; |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
20
|
20
970-14060-35-00 Bolt, HexagonＢＯＬＴ; |
970-14060-35-00 |
from US $2.41 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
61X-13610-01-00
Reed Valve Assembly
ＲＥＥＤ ＶＡＬＶＥ ＡＳＳＹ; |
61X-13610-01-00 |
— | ||
|
23
|
23
61X-W0004-00-00 Reed Set．ＲＥＥＤ ＳＥＴ; |
61X-W0004-00-00 |
US $97.40 |
||
|
24
|
24
97095-06020-00 BoltＢＯＬＴ; |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
24
|
24
970-80060-20-00 BoltＢＯＬＴ; |
970-80060-20-00 |
from US $1.66 |
||
|
25
|
25
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.18 |
||
|
26
|
26
61X-13621-A0-00 Gasket, Valve SeatＧＡＳＫＥＴ， ＶＡＬＶＥ ＳＥＡＴ; |
61X-13621-A0-00 |
from US $4.53 |
||
|
27
|
27
90105-05M46-00 Bolt, With WasherＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-05M46-00 |
from US $3.19 |
||
| replacement | |||||
|
27
|
27
90119-05M02-00 Bolt, With WasherＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90119-05M02-00 |
from US $4.25 |
||
|
28
|
28
90105-05M53-00 Bolt,washer BasedＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-05M53-00 |
from US $9 |
||
| replacement | |||||
|
28
|
28
901-1905M-01-00 Bolt, With WasherＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
901-1905M-01-00 |
from US $6.91 |
||
|
29
|
29
61X-14283-01-00 Cover, Carburetor 1ＣＯＶＥＲ， ＣＡＲＢＵＲＥＴＯＲ １; |
61X-14283-01-00 |
from US $39.51 |
||
|
30
|
30
6K8-14435-00-00 GrommetＧＲＯＭＭＥＴ; |
6K8-14435-00-00 |
from US $10.20 |
||
|
31
|
31
6M6-14284-00-98
Cover, Carburetor 2
ＣＯＶＥＲ， ＣＡＲＢＵＲＥＴＯＲ ２; ＵＲ ＦＯＲ ＮＯＮ ＯＩＬ ＩＮＪＥＣＴＩＯＮ |
6M6-14284-00-98 |
— | ||
| replacement | |||||
|
31
|
31
6M6-14284-00-8P
Cover, Carburetor 2
ＣＯＶＥＲ， ＣＡＲＢＵＲＥＴＯＲ ２; ＵＲ ＦＯＲ ＮＯＮ ＯＩＬ ＩＮＪＥＣＴＩＯＮ |
6M6-14284-00-8P |
— | ||
|
31
|
31
6R8-14284-00-98 Cover, Carburetor 2ＣＯＶＥＲ， ＣＡＲＢＵＲＥＴＯＲ ２; ＵＲ ＦＯＲ ＯＩＬ ＩＮＪＥＣＴＩＯＮ |
6R8-14284-00-98 |
US $106.42 |
||
|
32
|
32
6E5-11372-00-00 Nipple, Hose．ＮＩＰＰＬＥ， ＨＯＳＥ; ＦＯＲ ＯＩＬ ＩＮＪＥＣＴＩＯＮ |
6E5-11372-00-00 |
US $12.89 |
||
| replacement | |||||
|
32
|
32
6E5-11372-01-00 Nipple, Hose．ＮＩＰＰＬＥ， ＨＯＳＥ; ＦＯＲ ＯＩＬ ＩＮＪＥＣＴＩＯＮ |
6E5-11372-01-00 |
from US $8.08 |
||
|
33
|
33
6H1-14485-00-00 Pipe, Joint．ＰＩＰＥ， ＪＯＩＮＴ; ＦＯＲ ＯＩＬ ＩＮＪＥＣＴＩＯＮ |
6H1-14485-00-00 |
from US $5.38 |
||
|
34
|
34
6M6-14451-00-00 Element, Air CleanerＥＬＥＭＥＮＴ， ＡＩＲ ＣＬＥＡＮＥＲ; |
6M6-14451-00-00 |
US $50.62 |
||
|
35
|
35
985-80050-16-00
Screw, Pan Head
ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
985-80050-16-00 |
— | ||
| replacement | |||||
|
35
|
35
97885-05016-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97885-05016-00 |
from US $3.12 |
||
|
36
|
36
92990-05600-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
92990-05600-00 |
from US $1.07 |
||
|
37
|
37
6M6-13674-A1-00 Gasket, Air Cooler Cover 1ＧＡＳＫＥＴ， ＡＩＲ ＣＯＯＬＥＲ ＣＯＶＥＲ １; |
6M6-13674-A1-00 |
from US $7.33 |
||
|
38
|
38
6R7-14255-00-00 PlateＰＬＡＴＥ; |
6R7-14255-00-00 |
US $33.77 |
||
|
39
|
39
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
39
|
39
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.40 |
||
|
39
|
39
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
