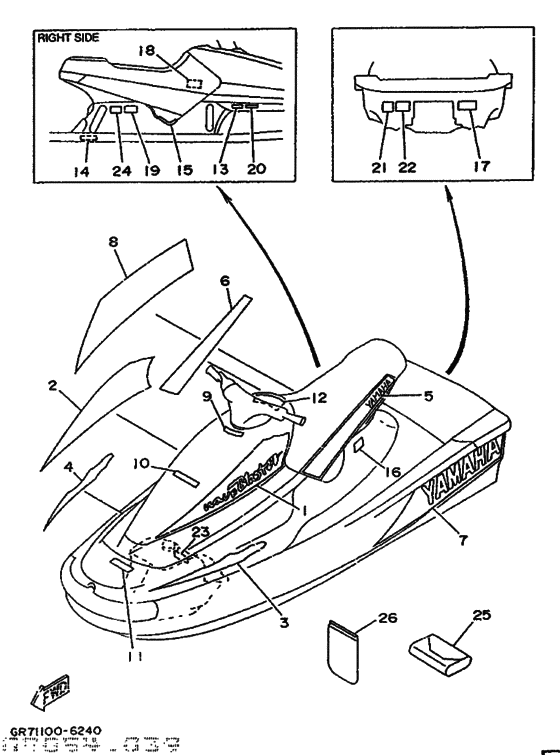

Graphic 1 & tool Diagram Yamaha WB700
- Model code
- GR73
- Engine Capacity
- 700
- Year
- 1996
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GR7-6417B-00-00
Graphic, 1
|
GR7-6417B-00-00 |
— | ||
|
2
|
2
GR7-6417C-00-00
Graphic, 2
|
GR7-6417C-00-00 |
— | ||
|
3
|
3
GR7-6417D-00-00 Graphic, 3 |
GR7-6417D-00-00 |
US $70.94 |
||
|
4
|
4
GR7-6417E-00-00 Graphic, 4 |
GR7-6417E-00-00 |
US $70.94 |
||
|
5
|
5
GR7-6417F-00-00
Graphic, 5
|
GR7-6417F-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
GR7-6417G-00-00
Graphic, 6
|
GR7-6417G-00-00 |
— | ||
|
7
|
7
GR7-6417H-00-00
Graphic, 7
|
GR7-6417H-00-00 |
— | ||
|
8
|
8
GR7-6417J-00-00
Graphic 8
|
GR7-6417J-00-00 |
— | ||
|
9
|
9
GA7-64125-00-00 Emblem |
GA7-64125-00-00 |
US $22.23 |
||
|
10
|
10
GR7-64114-00-00
Mark, Yamaha A
|
GR7-64114-00-00 |
— | ||
|
11
|
11
GA7-6416B-00-00
Label, Warning
(FUEL) |
GA7-6416B-00-00 |
— | ||
|
12
|
12
GA7-6416C-02-00
Label, Warning 1
|
GA7-6416C-02-00 |
— | ||
|
13
|
13
GA7-6416F-00-00
Label, Warning 4
|
GA7-6416F-00-00 |
— | ||
|
14
|
14
GA7-6419B-00-00 Label 1 |
GA7-6419B-00-00 |
US $14.29 |
||
|
15
|
15
GA7-6419C-00-00 Label,2 |
GA7-6419C-00-00 |
US $4.14 |
||
|
16
|
16
GA7-6419D-00-00 Label 3 |
GA7-6419D-00-00 |
US $15.46 |
||
|
17
|
17
FJ0-6418G-00-00 Label, Caution(DRAIN) |
FJ0-6418G-00-00 |
US $15.71 |
||
| replacement | |||||
|
17
|
17
GA9-U418G-00-00
Label, Caution (Drain)
(DRAIN) |
GA9-U418G-00-00 |
— | ||
|
18
|
18
GA7-6418B-00-00 Label,caution(BATTERY) |
GA7-6418B-00-00 |
from US $8.08 |
||
|
19
|
19
GA7-6418E-00-00
Label, Uscg
|
GA7-6418E-00-00 |
— | ||
|
20
|
20
GA7-6418J-01-00 Label,caution(OIL) |
GA7-6418J-01-00 |
US $7.83 |
||
|
21
|
21
FJ0-64188-00-00 Label, Righting |
FJ0-64188-00-00 |
US $6.14 |
||
| replacement | |||||
|
21
|
21
GK5-6418F-00-00 Label,righting |
GK5-6418F-00-00 |
US $6.14 |
||
|
22
|
22
FJ0-64161-C0-00 Label, Warning |
FJ0-64161-C0-00 |
US $129.49 |
||
| replacement | |||||
|
22
|
22
GH3-U411A-10-00 Label, Caution |
GH3-U411A-10-00 |
US $105.99 |
||
|
23
|
23
GA7-6418D-01-00
Label,fuel Tank
|
GA7-6418D-01-00 |
— | ||
|
24
|
24
GA7-6418C-00-00 Label, Caution |
GA7-6418C-00-00 |
US $8.68 |
||
|
25
|
25
EU0-28100-03-00 Tool Set |
EU0-28100-03-00 |
from US $33.20 |
||
| replacements | |||||
|
25
|
25
EU0-65986-13-00 Tool Set |
EU0-65986-13-00 |
from US $33.20 |
||
|
25
|
25
EU0-65986-10-00 Tool Set |
EU0-65986-10-00 |
from US $33.20 |
||
|
26
|
26
EU0-65901-01-00
Tool Bag
(CAN, AUS, GUM, FRA) |
EU0-65901-01-00 |
— | ||
| replacements | |||||
|
26
|
26
EU0-65901-02-00 Tool Bag(CAN, AUS, GUM, FRA) |
EU0-65901-02-00 |
from US $13.55 |
||
|
26
|
26
EU0-65901-03-00 Bag, Vinyl(CAN, AUS, GUM, FRA) |
EU0-65901-03-00 |
from US $17.43 |
||
