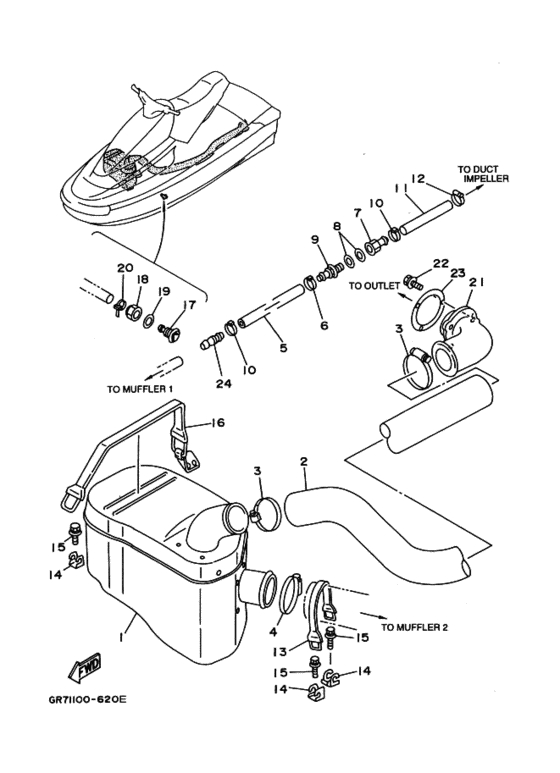

Exhaust 2 Diagram Yamaha WB700 700TZ
- Model code
- GR79
- Engine Capacity
- 700
- Year
- 1998
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GA7-67550-02-00
Water Lock
ＷＡＴＥＲ ＬＯＣＫ; |
GA7-67550-02-00 |
— | ||
|
2
|
2
GA7-67555-00-00
Hose
ＨＯＳＥ; |
GA7-67555-00-00 |
— | ||
|
3
|
3
90601-16875-00 Band, HoseＢＡＮＤ， ＨＯＳＥ; |
90601-16875-00 |
from US $14.73 |
||
|
4
|
4
90601-17586-00 Band, Hose 75ＢＡＮＤ， ＨＯＳＥ ７５; |
90601-17586-00 |
from US $16.18 |
||
|
5
|
5
90445-14M18-00 Hose (L560)ＨＯＳＥ; |
90445-14M18-00 |
US $36.52 |
||
| replacement | |||||
|
5
|
5
90445-14M03-00 HoseＨＯＳＥ; |
90445-14M03-00 |
US $36.52 |
||
|
6
|
6
90601-11583-00 Clamp, Ear 15ＥＡＲ ＣＬＡＭＰ; |
90601-11583-00 |
from US $9.63 |
||
|
7
|
7
90604-80757-00
Connection, Thru-Hull 1/4
ＣＯＮＮＥＣＴＩＯＮ， ＴＨＲＵ−ＨＵＬＬ １／４; |
90604-80757-00 |
— | ||
|
8
|
8
90430-13909-00 GasketＧＡＳＫＥＴ; |
90430-13909-00 |
from US $1.90 |
||
|
9
|
9
906-04807-58-00
Connection, Thru-Hull 1/4
ＣＯＮＮＥＣＴＩＯＮ， ＴＨＲＵ−ＨＵＬＬ １／４; |
906-04807-58-00 |
— | ||
|
10
|
10
90601-11583-00 Clamp, Ear 15ＥＡＲ ＣＬＡＭＰ; |
90601-11583-00 |
from US $9.63 |
||
|
11
|
11
90445-14M20-00 Hose (L96)ＨＯＳＥ; |
90445-14M20-00 |
from US $4.84 |
||
| replacement | |||||
|
11
|
11
90445-14M17-00 Hose (L102)ＨＯＳＥ; |
90445-14M17-00 |
from US $4.84 |
||
|
12
|
12
90601-11062-00 Band, HoseＢＡＮＤ， ＨＯＳＥ １１; |
90601-11062-00 |
from US $13.88 |
||
|
13
|
13
GA7-6756E-00-00 Band, Water LockＢＡＮＤ， ＷＡＴＥＲ ＬＯＣＫ; |
GA7-6756E-00-00 |
from US $24.23 |
||
|
14
|
14
EU0-65772-30-00 Hook AＨＯＯＫ Ａ; |
EU0-65772-30-00 |
from US $5.39 |
||
|
15
|
15
90119-06913-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06913-00 |
from US $1.98 |
||
|
16
|
16
GA7-67570-00-00
Hook C
ＨＯＯＫ Ｃ; |
GA7-67570-00-00 |
— | ||
|
17
|
17
GH7-6753B-00-00 Pilot,waterＰＩＬＯＴ， ＷＡＴＥＲ; |
GH7-6753B-00-00 |
from US $22.95 |
||
|
18
|
18
GP7-61652-00-00 NutＮＵＴ; |
GP7-61652-00-00 |
from US $8.64 |
||
|
19
|
19
92990-14200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-14200-00 |
from US $1.66 |
||
|
20
|
20
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
20
|
20
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.17 |
||
|
20
|
20
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
21
|
21
FN8-67565-01-00
Through Hall
ＴＨＲＯＵＧＨ， ＨＵＬＬ; |
FN8-67565-01-00 |
— | ||
|
22
|
22
90119-05912-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-05912-00 |
from US $2.69 |
||
|
23
|
23
GA7-67525-00-00 Packing |
GA7-67525-00-00 |
US $15.68 |
||
|
24
|
24
6M6-51142-00-00
Connection
ＣＯＮＮＥＣＴＩＯＮ; |
6M6-51142-00-00 |
— | ||
