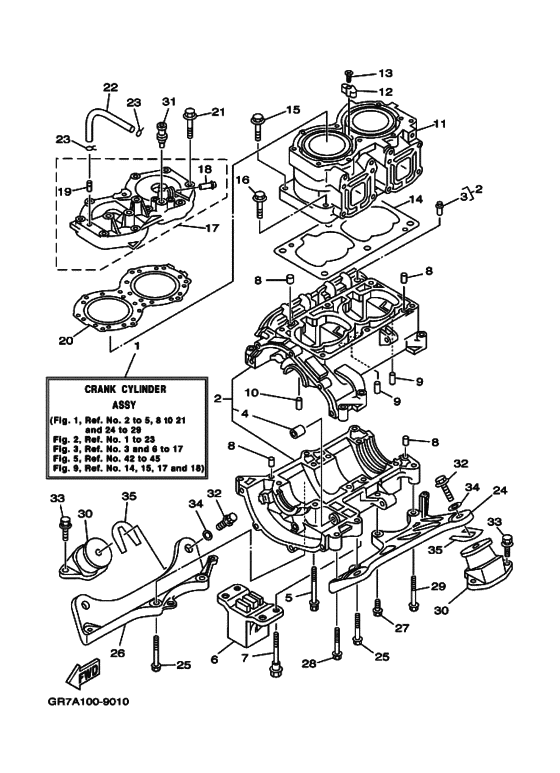

Cylinder & crankcase Diagram Yamaha WB700
- Model code
- GR7A
- Engine Capacity
- 700
- Year
- 1999
- Sales region
- Europe (010)
- Colour
- White Coat 2 (WC2; GA3C)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64U-W0090-00-8P
Crank Cylinder Assy
|
64U-W0090-00-8P |
— | ||
| replacement | |||||
|
1
|
1
64U-W0090-00-8S
Crank Cylinder Assy
|
64U-W0090-00-8S |
— | ||
|
2
|
2
62T-15100-00-94 Crankcase Assy |
62T-15100-00-94 |
from US $996.61 |
||
| replacement | |||||
|
2
|
2
62T-15100-00-00 Crankcase Assy |
62T-15100-00-00 |
from US $992.56 |
||
|
3
|
3
62T-14251-10-00 Nipple |
62T-14251-10-00 |
from US $4.82 |
||
|
4
|
4
90380-12M29-00 Bush, Solid |
90380-12M29-00 |
from US $8.64 |
||
|
5
|
5
90119-08M55-00 Bolt, With Washer |
90119-08M55-00 |
from US $4.38 |
||
|
6
|
6
62E-44532-00-00 Stopper, Upper Mount |
62E-44532-00-00 |
US $95.40 |
||
|
7
|
7
90109-08M56-00 Bolt6R8 |
90109-08M56-00 |
from US $4.38 |
||
|
8
|
8
936-06120-19-00 Pin, Dowel85 ULTRA LONG |
936-06120-19-00 |
from US $2.69 |
||
|
9
|
9
93603-10049-00 Pin, Dowel |
93603-10049-00 |
from US $2.36 |
||
|
10
|
10
93604-07141-00 Pin, Dowel |
93604-07141-00 |
from US $2.02 |
||
|
11
|
11
61X-11311-01-94 Cylinder 1 |
61X-11311-01-94 |
from US $977.33 |
||
| replacement | |||||
|
11
|
11
61X-11311-01-8S Cylinder 1 |
61X-11311-01-8S |
from US $958.14 |
||
|
12
|
12
6E5-11325-00-00 Anode |
6E5-11325-00-00 |
from US $5.06 |
||
|
13
|
13
98780-04015-00 Screw,flat Head |
98780-04015-00 |
from US $2.13 |
||
| replacement | |||||
|
13
|
13
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.36 |
||
|
14
|
14
6M6-11351-A2-00 Gasket, Cylinder |
6M6-11351-A2-00 |
from US $11.12 |
||
|
15
|
15
90119-10M56-00 Bolt, With Washer |
90119-10M56-00 |
from US $3.97 |
||
|
16
|
16
90119-10M07-00 Bolt, With Washer |
90119-10M07-00 |
from US $3.38 |
||
|
17
|
17
64U-11111-00-94 Head, Cylinder 1 |
64U-11111-00-94 |
from US $255.60 |
||
| replacement | |||||
|
17
|
17
64U-11111-00-8S Head, Cylinder 1 |
64U-11111-00-8S |
from US $255.60 |
||
|
18
|
18
6K8-51129-00-00 Nipple |
6K8-51129-00-00 |
from US $7.65 |
||
|
19
|
19
6R7-14485-00-00 Pipe, JointJ |
6R7-14485-00-00 |
from US $8.93 |
||
|
20
|
20
62T-11181-00-00 Gasket, Cylinder Head 1 |
62T-11181-00-00 |
from US $55.91 |
||
| replacement | |||||
|
20
|
20
62T-11181-01-00 Gasket, Cylinder Head 1 |
62T-11181-01-00 |
from US $50.16 |
||
|
21
|
21
901-1908M-19-00
Bolt, With Washer
|
901-1908M-19-00 |
— | ||
| replacement | |||||
|
21
|
21
90119-08019-00 Bolt, With Washer |
90119-08019-00 |
from US $4.11 |
||
|
22
|
22
90445-07M19-00 Hose (L200)J |
90445-07M19-00 |
from US $2.27 |
||
|
23
|
23
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
24
|
24
6R7-21415-01-94 Bracket, Front Upper 1 |
6R7-21415-01-94 |
from US $137.21 |
||
| replacement | |||||
|
24
|
24
6R7-21415-01-00 Bracket, Front Upper 1 |
6R7-21415-01-00 |
from US $145.07 |
||
|
25
|
25
90119-10M02-00 Bolt, With Washer |
90119-10M02-00 |
from US $9 |
||
| replacement | |||||
|
25
|
25
90119-10M23-00 Bolt, With Washer |
90119-10M23-00 |
from US $5.06 |
||
|
26
|
26
6R7-21425-01-94 Bracket, Rear Upper 1 |
6R7-21425-01-94 |
from US $126.97 |
||
| replacement | |||||
|
26
|
26
6R7-21425-01-00 Bracket, Rear Upper 1 |
6R7-21425-01-00 |
from US $126.97 |
||
|
27
|
27
90119-10M00-00 Bolt, With Washer(63N) |
90119-10M00-00 |
from US $5.95 |
||
|
28
|
28
90119-10M01-00 Bolt, With Washer(63N) |
90119-10M01-00 |
from US $2.70 |
||
|
29
|
29
90119-10M03-00 Bolt, With Washer(63N) |
90119-10M03-00 |
from US $6.94 |
||
|
30
|
30
62E-44517-A0-5B Mount Rubber |
62E-44517-A0-5B |
from US $77.65 |
||
| replacement | |||||
|
30
|
30
62E-44517-A1-8P Mount Rubber |
62E-44517-A1-8P |
from US $77.65 |
||
|
31
|
31
6E0-28193-00-94 Plug, Water Check4-90HP,HOSE=125MM |
6E0-28193-00-94 |
US $9.35 |
||
| replacement | |||||
|
31
|
31
6E0-28193-00-00 Plug, Water Check4-90HP,HOSE=125MM |
6E0-28193-00-00 |
from US $9.35 |
||
|
32
|
32
90119-08904-00 Bolt With Washer (Eu0) |
90119-08904-00 |
from US $3.04 |
||
|
33
|
33
90119-08038-00 Bolt, With Washer |
90119-08038-00 |
from US $2.02 |
||
|
34
|
34
EU0-67324-00-00 Plate |
EU0-67324-00-00 |
from US $4.68 |
||
|
35
|
35
EU0-67354-00-01 Sim (0.1) |
EU0-67354-00-01 |
from US $3.97 |
||
| replacement | |||||
|
35
|
35
EU0-67354-A0-00 Shim (T=0.1) |
EU0-67354-A0-00 |
from US $3.97 |
||
|
35
|
35
EU0-67354-00-02 Shim (T=0.2)2/97 |
EU0-67354-00-02 |
US $211,749.98 |
||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
2/97 |
999-99999-99-00 |
— | ||
|
35
|
35
EU0-67354-00-03 Sim (0.3) |
EU0-67354-00-03 |
from US $3.97 |
||
| replacement | |||||
|
35
|
35
EU0-67354-B0-00 Shim (T=0.3) |
EU0-67354-B0-00 |
from US $3.97 |
||
|
35
|
35
EU0-67354-00-05 Sim (0.5) |
EU0-67354-00-05 |
from US $3.97 |
||
| replacement | |||||
|
35
|
35
EU0-67354-C0-00 Shim (T=0.5)Ｔ＝０．５ |
EU0-67354-C0-00 |
from US $3.97 |
||
|
35
|
35
EU0-67354-00-10 Sim (1.0) |
EU0-67354-00-10 |
from US $3.92 |
||
| replacement | |||||
|
35
|
35
EU0-67354-D0-00 Shim (T=1.0)Ｔ＝１．０ |
EU0-67354-D0-00 |
from US $4.53 |
||
|
35
|
35
EU0-67354-00-20 Sim (2.0) |
EU0-67354-00-20 |
from US $3.92 |
||
| replacement | |||||
|
35
|
35
EU0-67354-E0-00 Shim (T=2.0) |
EU0-67354-E0-00 |
from US $5.81 |
||
