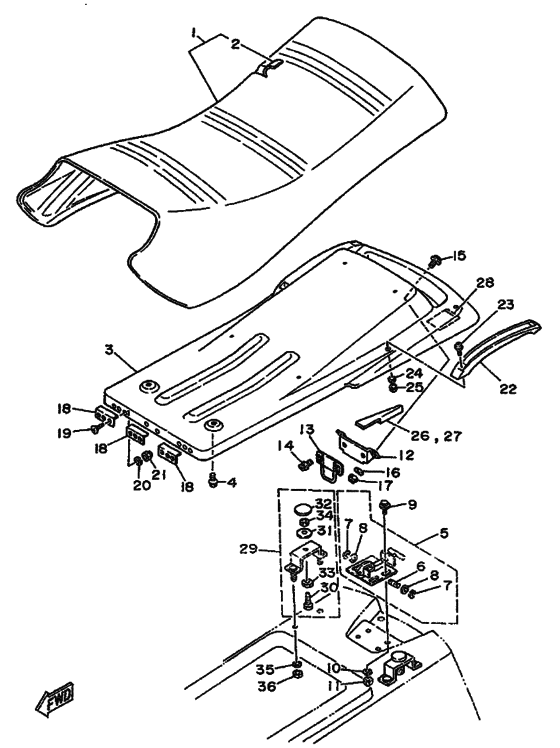

Seat Diagram Yamaha WR650
- Model code
- FK7
- Engine Capacity
- 650
- Year
- 1989
- Sales region
- Europe (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
FK7-63710-30-00
Driver Seat Assy.1
|
FK7-63710-30-00 |
— | ||
|
2
|
2
FK7-63711-30-00
Seat Driver
|
FK7-63711-30-00 |
— | ||
|
3
|
3
EU0-63702-02-00
Base Seat Comp
|
EU0-63702-02-00 |
— | ||
| replacement | |||||
|
3
|
3
EU0-63702-03-00
Base Seat Comp
|
EU0-63702-03-00 |
— | ||
|
4
|
4
90119-06034-00
Bolt, W/washer
|
90119-06034-00 |
— | ||
|
5
|
5
EU0-63850-00-00
Seat Lock Assembly
|
EU0-63850-00-00 |
— | ||
|
6
|
6
EU0-63774-00-00
Pin
|
EU0-63774-00-00 |
— | ||
|
7
|
7
93430-05900-00 Circlip |
93430-05900-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.81 |
||
|
8
|
8
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
9
|
9
90119-06901-00 Bolt, With Washer |
90119-06901-00 |
from US $2.20 |
||
|
10
|
10
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
11
|
11
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
12
|
12
EU0-63778-00-00
Base, Hook End
|
EU0-63778-00-00 |
— | ||
|
13
|
13
EU0-63779-00-00
Hook End
|
EU0-63779-00-00 |
— | ||
|
14
|
14
90119-06066-00 Bolt, With Washer |
90119-06066-00 |
US $15.46 |
||
| replacement | |||||
|
14
|
14
90119-06926-00 Bolt H/h W/w (Eu0) |
90119-06926-00 |
US $15.46 |
||
|
15
|
15
90159-06902-00
Screw, With Washer
|
90159-06902-00 |
— | ||
|
16
|
16
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
17
|
17
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
18
|
18
EU0-63789-01-00
Stopper,seat 2
|
EU0-63789-01-00 |
— | ||
|
19
|
19
98780-05016-00 Screw, Flat Head |
98780-05016-00 |
from US $2.13 |
||
|
20
|
20
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
21
|
21
95720-05300-00 Nut, Flange |
95720-05300-00 |
from US $1.56 |
||
|
22
|
22
EU0-62714-01-00
Grip, Hand
|
EU0-62714-01-00 |
— | ||
|
23
|
23
90159-06902-00
Screw, With Washer
|
90159-06902-00 |
— | ||
|
24
|
24
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
25
|
25
95780-06300-00 P58 Nut, Nylon |
95780-06300-00 |
from US $4.11 |
||
|
26
|
26
EU0-67593-10-00
Mat (Lh)
|
EU0-67593-10-00 |
— | ||
|
27
|
27
EU0-67593-20-00
Mat (Rh)
|
EU0-67593-20-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
EU0-63765-00-00
Liner, Damper
|
EU0-63765-00-00 |
— | ||
|
29
|
29
EU0-63760-01-00 Rear Seat Assy |
EU0-63760-01-00 |
US $92.02 |
||
| replacement | |||||
|
29
|
29
EU0-63760-02-00 Damper, Seat Assembly |
EU0-63760-02-00 |
US $92.02 |
||
|
30
|
30
EU0-63762-00-00
Bolt
|
EU0-63762-00-00 |
— | ||
|
31
|
31
EU0-63763-00-00
Plate
|
EU0-63763-00-00 |
— | ||
| replacement | |||||
|
31
|
31
EU0-63763-01-00
Plate
|
EU0-63763-01-00 |
— | ||
|
32
|
32
EU0-63764-00-00
Mat
|
EU0-63764-00-00 |
— | ||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
33
|
33
EU0-63766-00-00
Nut
|
EU0-63766-00-00 |
— | ||
|
34
|
34
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
35
|
35
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
36
|
36
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
