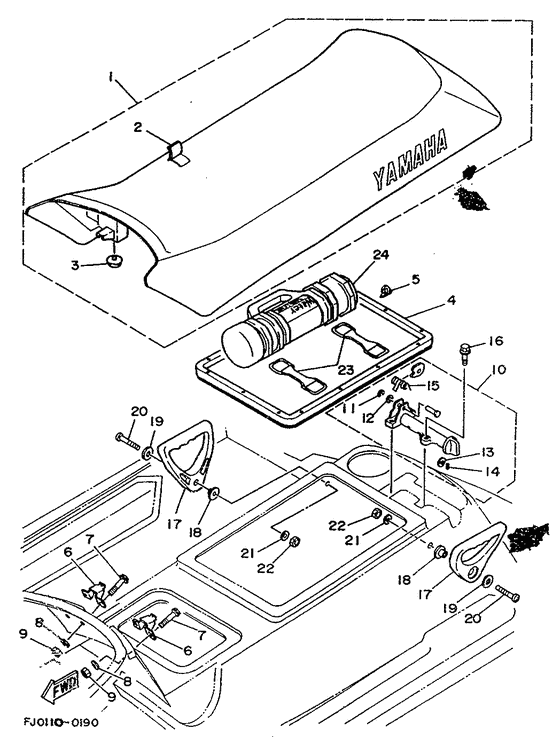

Seat Diagram Yamaha WRA650
- Model code
- FJ0
- Engine Capacity
- 650
- Year
- 1990
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
FJ0-63710-00-00 Driver Seat Assy.1 |
FJ0-63710-00-00 |
US $834.57 |
||
| replacement | |||||
|
01
|
01
FJ0-63710-04-00 Double Seat Assy |
FJ0-63710-04-00 |
US $832.50 |
||
|
02
|
02
FJ0-63711-00-00 Cover, Seat |
FJ0-63711-00-00 |
US $292.63 |
||
|
03
|
03
1L9-24741-00-00 Pad, Seat |
1L9-24741-00-00 |
from US $8.36 |
||
|
04
|
04
FJ0-62664-00-00
Packing
|
FJ0-62664-00-00 |
— | ||
|
05
|
05
90269-06916-00 Rivet |
90269-06916-00 |
from US $2.92 |
||
|
06
|
06
FJ0-63784-00-00
Guide, Panel
|
FJ0-63784-00-00 |
— | ||
|
07
|
07
90119-06900-00 Bolt, With Washer |
90119-06900-00 |
from US $2.27 |
||
|
08
|
08
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
09
|
09
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
10
|
10
FJ0-63850-00-00
Seat Lock Assy
|
FJ0-63850-00-00 |
— | ||
| replacements | |||||
|
10
|
10
FJ0-63850-31-00
Seat Lock Assembly
|
FJ0-63850-31-00 |
— | ||
|
10
|
10
FJ0-63850-01-00
Seat Lock Assembly
|
FJ0-63850-01-00 |
— | ||
|
11
|
11
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.66 |
||
|
12
|
12
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
13
|
13
FJ0-63851-00-00
Plate, Stopper
|
FJ0-63851-00-00 |
— | ||
|
14
|
14
FJ0-63853-00-00
Spring, Cylinder
|
FJ0-63853-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
FJ0-63852-00-00
Spring
|
FJ0-63852-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
90119-06902-00 Bolt, With Washer |
90119-06902-00 |
US $4.73 |
||
| replacement | |||||
|
16
|
16
90119-06940-00
Bolt, With Washer
|
90119-06940-00 |
— | ||
|
17
|
17
FJ0-63771-00-00
Grip, Assist
|
FJ0-63771-00-00 |
— | ||
|
18
|
18
903-87089-05-00
Collar
|
903-87089-05-00 |
— | ||
|
19
|
19
90201-08929-00 Washer, Plate |
90201-08929-00 |
from US $5.81 |
||
|
20
|
20
901-50089-11-00
Screw
|
901-50089-11-00 |
— | ||
|
21
|
21
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
22
|
22
95720-08300-00 Nut, Self-Locking |
95720-08300-00 |
from US $4.11 |
||
|
23
|
23
EU0-67569-02-00 Band, Water Lock |
EU0-67569-02-00 |
from US $25.93 |
||
|
24
|
24
EW2-65920-00-00
Case 2 Assembly
|
EW2-65920-00-00 |
— | ||
