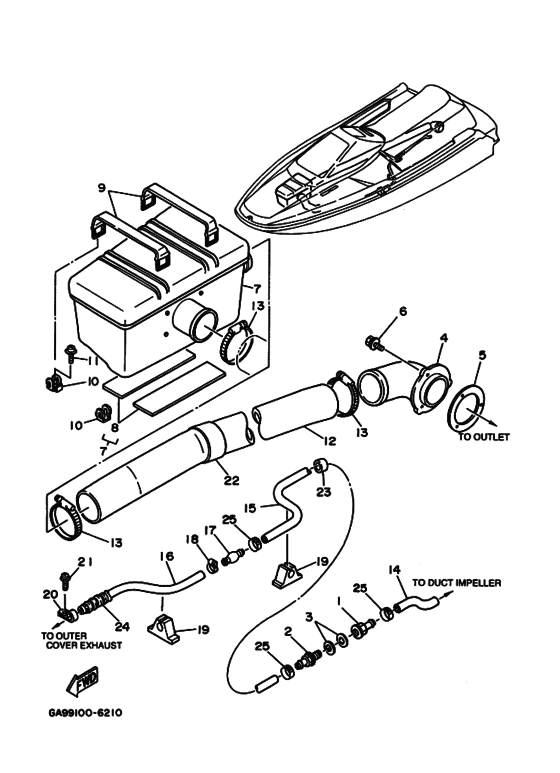

Exhaust 2 Diagram Yamaha WRA650
- Model code
- GA9C
- Engine Capacity
- 650
- Year
- 1996
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90604-80757-00
Connection, Thru-Hull 1/4
ＣＯＮＮＥＣＴＩＯＮ， ＴＨＲＵ−ＨＵＬＬ １／４; |
90604-80757-00 |
— | ||
|
2
|
2
906-04807-58-00
Connection, Thru-Hull 1/4
ＣＯＮＮＥＣＴＩＯＮ， ＴＨＲＵ−ＨＵＬＬ １／４; |
906-04807-58-00 |
— | ||
|
3
|
3
90430-13909-00 GasketＰＡＣＫＩＮＧ; |
90430-13909-00 |
from US $1.90 |
||
|
4
|
4
GA9-67565-00-00
Thru-Hull,exhaust
ＴＨＲＵ−ＨＵＬＬ， ＥＸＨＡＵＳＴ; |
GA9-67565-00-00 |
— | ||
|
5
|
5
GA9-U7525-00-00 PackingＰＡＣＫＩＮＧ; ＹＭＵＳ |
GA9-U7525-00-00 |
from US $10.06 |
||
|
6
|
6
90119-059U4-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; ＹＭＵＳ |
90119-059U4-00 |
from US $2.69 |
||
| replacement | |||||
|
6
|
6
90119-05912-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; ＹＭＵＳ |
90119-05912-00 |
from US $2.69 |
||
|
7
|
7
FJ0-67550-02-00
Water Lock
ＷＡＴＥＲ ＬＯＣＫ ＣＯＭＰ．; ＵＲ |
FJ0-67550-02-00 |
— | ||
|
7
|
7
GA9-U7550-00-00
Water Lock
ＷＡＴＥＲ ＬＯＣＫ ＣＯＭＰ．; ＵＲ ＹＭＵＳ |
GA9-U7550-00-00 |
— | ||
| replacement | |||||
|
7
|
7
FJ0-67550-02-00
Water Lock
ＷＡＴＥＲ ＬＯＣＫ ＣＯＭＰ．; ＵＲ ＹＭＵＳ |
FJ0-67550-02-00 |
— | ||
|
8
|
8
EW2-67593-00-00
Mat
．ＭＡＴ １; |
EW2-67593-00-00 |
— | ||
|
9
|
9
FJ0-67569-00-00
Band,water Lock
ＢＡＮＤ; |
FJ0-67569-00-00 |
— | ||
|
10
|
10
EU0-65772-30-00 Hook AＨＯＯＫ Ａ; |
EU0-65772-30-00 |
from US $5.39 |
||
|
11
|
11
90159-06901-00 Screw, With WasherＳＣＲＥＷ; |
90159-06901-00 |
from US $2.55 |
||
|
12
|
12
FJ0-67555-00-00
Hose, Exhaust
ＨＯＳＥ; ＵＲ |
FJ0-67555-00-00 |
— | ||
|
12
|
12
GA9-U7555-00-00 Hose, ExhaustＨＯＳＥ; ＵＲ ＹＭＵＳ |
GA9-U7555-00-00 |
US $161.08 |
||
| replacement | |||||
|
12
|
12
FJ0-67555-00-00
Hose, Exhaust
ＨＯＳＥ; ＵＲ ＹＭＵＳ |
FJ0-67555-00-00 |
— | ||
|
13
|
13
90601-168U7-00 Band, HoseＢＡＮＤ， ＨＯＳＥ ６８; ＹＭＵＳ |
90601-168U7-00 |
from US $7.45 |
||
| replacement | |||||
|
13
|
13
90601-170UG-00 Band, Hose 70ＢＡＮＤ， ＨＯＳＥ ６８; ＹＭＵＳ |
90601-170UG-00 |
from US $14.35 |
||
|
14
|
14
90445-14M12-00 HoseＨＯＳＥ; |
90445-14M12-00 |
US $13.27 |
||
| replacement | |||||
|
14
|
14
90445-14M11-00 Hose (L180)ＨＯＳＥ; |
90445-14M11-00 |
US $13.27 |
||
|
15
|
15
90445-14M07-00 Hose (L1300)ＨＯＳＥ; |
90445-14M07-00 |
from US $31.58 |
||
| replacement | |||||
|
15
|
15
90445-14M22-00 Hose (L1300)ＨＯＳＥ; |
90445-14M22-00 |
US $58.27 |
||
|
16
|
16
90445-14M14-00 Hose (L380)ＨＯＳＥ; |
90445-14M14-00 |
from US $11.33 |
||
| replacement | |||||
|
16
|
16
90445-14M25-00 Hose (L380)ＨＯＳＥ; |
90445-14M25-00 |
from US $11.33 |
||
|
17
|
17
6M6-51142-00-00
Connection
ＣＯＮＮＥＣＴＩＯＮ; |
6M6-51142-00-00 |
— | ||
|
18
|
18
90450-14M05-00 Hose Clamp Assy(62T)ＣＬＩＰ; |
90450-14M05-00 |
from US $9.07 |
||
|
19
|
19
90600-91730-00
Clamp
ＣＬＡＭＰ; |
90600-91730-00 |
— | ||
|
20
|
20
90600-91728-00 ClampＣＬＩＰ， ＮＹＬＯＮ １７; |
90600-91728-00 |
from US $2.08 |
||
|
21
|
21
97780-50116-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-50116-00 |
from US $1.52 |
||
|
22
|
22
FJ0-67577-02-00 Packing, HoseＰＡＣＫＩＮＧ， ＨＯＳＥ １; |
FJ0-67577-02-00 |
US $10.69 |
||
|
23
|
23
FJ0-67578-00-00
Packing, Hose 2
ＰＡＣＫＩＮＧ， ＨＯＳＥ ２; |
FJ0-67578-00-00 |
— | ||
|
24
|
24
90446-20M24-00 HoseＴＵＢＥ; |
90446-20M24-00 |
from US $6.66 |
||
|
25
|
25
90601-115UB-00 BandＢＡＮＤ; ＹＭＵＳ |
90601-115UB-00 |
US $7.96 |
||
