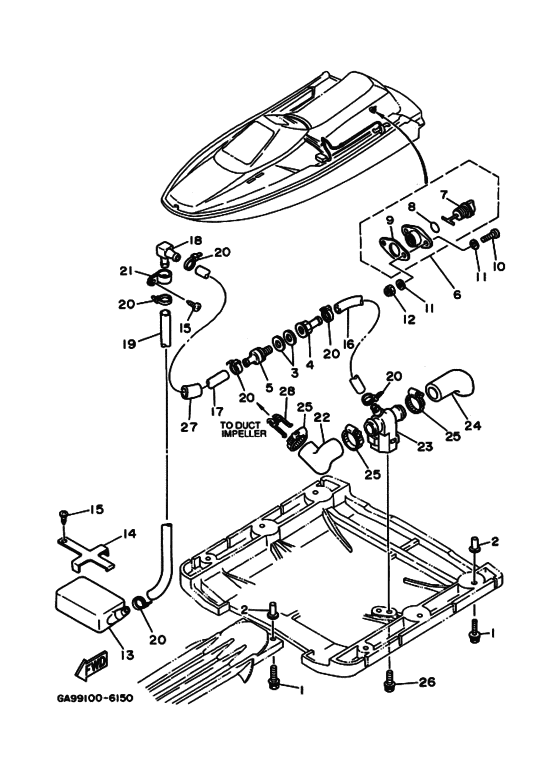

Hull. deck 3 Diagram Yamaha WRA650
- Model code
- GA9C
- Engine Capacity
- 650
- Year
- 1996
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
901-19069-29-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
901-19069-29-00 |
from US $4.68 |
||
| replacement | |||||
|
1
|
1
901-19068-96-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
901-19068-96-00 |
from US $4.68 |
||
|
2
|
2
90179-06947-00 NutＮＵＴ， ＩＮＳＥＲ; |
90179-06947-00 |
from US $5.26 |
||
|
3
|
3
90430-13909-00 GasketＰＡＣＫＩＮＧ; |
90430-13909-00 |
from US $1.90 |
||
|
4
|
4
90604-80759-00 Connection, Thru-Hull 1/4ＣＯＮＮＥＣＴＩＯＮ， ＴＨＲＵ−ＨＵＬＬ １／４; |
90604-80759-00 |
from US $15.30 |
||
|
5
|
5
90604-80760-00
Connection, Thru-Hull 1/4
ＣＯＮＮＥＣＴＩＯＮ， ＴＨＲＵ−ＨＵＬＬ １／４; |
90604-80760-00 |
— | ||
|
6
|
6
EU0-62280-00-00 Drain Plug AssyＤＲＡＩＮ ＰＬＵＧ ＡＳＳＹ; |
EU0-62280-00-00 |
from US $43.24 |
||
|
7
|
7
EU0-62282-00-00 Plug, Drain．ＰＬＵＧ， ＤＲＡＩＮ; |
EU0-62282-00-00 |
from US $3.26 |
||
|
8
|
8
EU0-62283-00-00 O-Ring．Ｏ−ＲＩＮＧ; |
EU0-62283-00-00 |
from US $1.28 |
||
|
9
|
9
EU0-62285-01-00 Packing Drain (Eu0)．ＰＡＣＫＩＮＧ， ＤＲＡＩＮ; |
EU0-62285-01-00 |
from US $5.10 |
||
|
10
|
10
978-80050-20-00
Screw, Pan Head
ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
978-80050-20-00 |
— | ||
| replacements | |||||
|
10
|
10
98580-05020-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98580-05020-00 |
from US $1.56 |
||
|
10
|
10
97885-05020-00 Screw, Pan HeadＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
97885-05020-00 |
from US $2.13 |
||
|
11
|
11
92990-05200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-05200-00 |
from US $1.56 |
||
|
12
|
12
95720-05300-00 Nut, FlangeＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95720-05300-00 |
from US $1.56 |
||
|
13
|
13
EU0-67613-00-00 StrainerＳＴＲＡＩＮＥＲ; |
EU0-67613-00-00 |
from US $29.84 |
||
| replacement | |||||
|
13
|
13
F4R-6761D-00-00 ＳＴＲＡＩＮＥＲ; |
F4R-6761D-00-00 |
from US $37.99 |
||
|
14
|
14
FJ0-67618-00-00 BaseＢＡＳＥ; |
FJ0-67618-00-00 |
US $19.91 |
||
|
15
|
15
97780-50116-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-50116-00 |
from US $1.52 |
||
|
16
|
16
90445-14M11-00 Hose (L180)ＨＯＳＥ; |
90445-14M11-00 |
US $13.27 |
||
|
17
|
17
90445-149U2-00 Hose (L1020)ＨＯＳＥ; ＹＭＵＳ |
90445-149U2-00 |
US $31.58 |
||
|
18
|
18
6K8-51162-00-00 Joint, HoseＪＯＩＮＴ， ＨＯＳＥ; |
6K8-51162-00-00 |
from US $4.68 |
||
|
19
|
19
90445-149U3-00
Hose (L500)
ＨＯＳＥ; ＹＭＵＳ |
90445-149U3-00 |
— | ||
| replacement | |||||
|
19
|
19
90445-14M03-00 HoseＨＯＳＥ; ＹＭＵＳ |
90445-14M03-00 |
US $36.52 |
||
|
20
|
20
90465-13M11-00 ClampＣＬＡＭＰ; |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
20
|
20
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.40 |
||
|
21
|
21
90600-918U3-00 Clip, Nylon 18ＣＬＩＰ， ＮＹＬＯＮ; ＹＭＵＳ |
90600-918U3-00 |
from US $0.95 |
||
|
22
|
22
6R8-51161-00-00
Hose, Plasher
ＨＯＳＥ， ＰＲＥＳＳＵＲＥ; |
6R8-51161-00-00 |
— | ||
|
23
|
23
6K8-7610K-01-00 Body,valveＢＯＤＹ， ＶＡＬＶＥ; |
6K8-7610K-01-00 |
US $30.80 |
||
|
24
|
24
6K8-51141-00-00 Hose SuctionＨＯＳＥ， ＳＥＣＴＩＯＮ; |
6K8-51141-00-00 |
US $35.89 |
||
|
25
|
25
90460-25M09-00 Hose Clamp AssyＣＬＡＭＰ， ＨＯＳＥ; |
90460-25M09-00 |
US $34 |
||
| replacement | |||||
|
25
|
25
90450-32097-00 Hose Clamp AssyＣＬＡＭＰ， ＨＯＳＥ; |
90450-32097-00 |
from US $19.22 |
||
|
26
|
26
90119-06901-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06901-00 |
from US $2.20 |
||
|
27
|
27
FJ0-67578-00-00
Packing, Hose 2
ＰＡＣＫＩＮＧ， ＨＯＳＥ; |
FJ0-67578-00-00 |
— | ||
|
28
|
28
6R8-51384-00-00 ScreenＳＣＲＥＥＮ; |
6R8-51384-00-00 |
US $62.78 |
||
