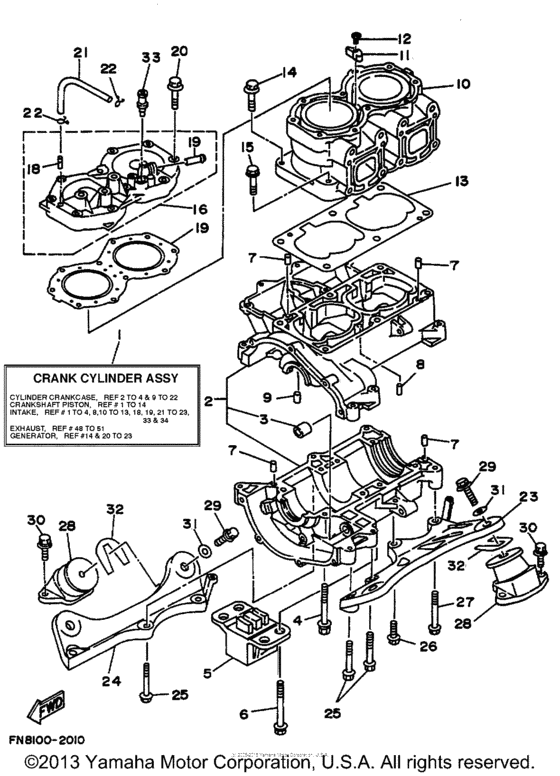

Cylinder crankcase Diagram Yamaha WRA700 Wave Runner lll
- Engine Capacity
- 700
- Year
- 1994
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62G-W0090-00-4D Crank Cylinder Assy |
62G-W0090-00-4D |
US $4,626.85 |
||
| replacement | |||||
|
1
|
1
62G-W0090-03-8P Crank Cylinder Assy |
62G-W0090-03-8P |
US $4,638.58 |
||
|
2
|
2
61X-15100-00-94
Crankcase Assy
|
61X-15100-00-94 |
— | ||
| replacements | |||||
|
2
|
2
61X-15100-00-8S
element
|
61X-15100-00-8S |
— | ||
|
2
|
2
61X-15100-00-8P
Crankcase Assy
|
61X-15100-00-8P |
— | ||
|
3
|
3
90380-12M29-00 Bush, Solid |
90380-12M29-00 |
from US $8.74 |
||
|
4
|
4
90119-08M55-00 Bolt, With Washer |
90119-08M55-00 |
from US $4.72 |
||
|
5
|
5
6R8-44532-00-00
Stopper, Upper Mount
|
6R8-44532-00-00 |
— | ||
|
6
|
6
90109-08M56-00 Bolt |
90109-08M56-00 |
from US $10.75 |
||
|
7
|
7
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
8
|
8
93603-10049-00 Pin, Dowel |
93603-10049-00 |
from US $2.70 |
||
|
9
|
9
93604-07141-00 Pin, Dowel |
93604-07141-00 |
from US $2.36 |
||
|
10
|
10
61X-11311-00-94 Cylinder 1 |
61X-11311-00-94 |
from US $977.33 |
||
| replacement | |||||
|
10
|
10
61X-11311-01-8S Cylinder 1 |
61X-11311-01-8S |
from US $958.14 |
||
|
11
|
11
6E5-11325-00-00 Anode |
6E5-11325-00-00 |
from US $5.40 |
||
|
12
|
12
98680-04016-00 Screw, Flat Head |
98680-04016-00 |
from US $1.39 |
||
| replacements | |||||
|
12
|
12
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.70 |
||
|
12
|
12
98780-04016-00 Screw, Flat Head (Fe4) |
98780-04016-00 |
from US $2.13 |
||
|
13
|
13
6M6-11351-A1-00 Gasket, Cylinder |
6M6-11351-A1-00 |
from US $15.98 |
||
| replacement | |||||
|
13
|
13
6M6-11351-A2-00 Gasket, Cylinder |
6M6-11351-A2-00 |
from US $11.46 |
||
|
14
|
14
90119-10M56-00 Bolt, With Washer |
90119-10M56-00 |
from US $3.97 |
||
|
15
|
15
90119-10M07-00 Bolt, With Washer |
90119-10M07-00 |
from US $6.52 |
||
|
16
|
16
61X-11111-00-94
Head, Cylinder 1
|
61X-11111-00-94 |
— | ||
| replacements | |||||
|
16
|
16
61X-11111-09-8S
Head, Cylinder 1
|
61X-11111-09-8S |
— | ||
|
16
|
16
61X-11111-00-8P
New Genuine Part
|
61X-11111-00-8P |
— | ||
|
16
|
16
61X-11111-00-8S
New Genuine Part
|
61X-11111-00-8S |
— | ||
|
17
|
17
6K8-51129-00-00 Nipple |
6K8-51129-00-00 |
from US $7.65 |
||
|
18
|
18
6R7-14485-00-00 Pipe, Joint |
6R7-14485-00-00 |
from US $8.93 |
||
|
19
|
19
61X-11181-A0-00
Gasket, Cylinder Hea
|
61X-11181-A0-00 |
— | ||
| replacement | |||||
|
19
|
19
61X-11181-A1-00
Gasket, Cylinder Head 1
|
61X-11181-A1-00 |
— | ||
|
20
|
20
901-1908M-19-00
Bolt, With Washer
|
901-1908M-19-00 |
— | ||
| replacement | |||||
|
20
|
20
90119-08019-00 Bolt, With Washer |
90119-08019-00 |
from US $4.11 |
||
|
21
|
21
90445-07M19-00 Hose (L200) |
90445-07M19-00 |
from US $2.27 |
||
|
22
|
22
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
23
|
23
6R7-21415-00-94 Bracket, Front Upper 1 |
6R7-21415-00-94 |
from US $137.21 |
||
| replacement | |||||
|
23
|
23
6R7-21415-01-00 Bracket, Front Upper 1 |
6R7-21415-01-00 |
from US $145.07 |
||
|
24
|
24
6R7-21425-00-94 Bracket, Rear Upper 1 |
6R7-21425-00-94 |
from US $126.97 |
||
| replacement | |||||
|
24
|
24
6R7-21425-01-00 Bracket, Rear Upper 1 |
6R7-21425-01-00 |
from US $126.97 |
||
|
25
|
25
97513-10570-00 Bolt, With Washer |
97513-10570-00 |
from US $9 |
||
| replacement | |||||
|
25
|
25
90119-10M23-00 Bolt, With Washer |
90119-10M23-00 |
from US $5.40 |
||
|
26
|
26
97513-10535-00 Bolt, With Washer |
97513-10535-00 |
from US $5.95 |
||
| replacement | |||||
|
26
|
26
90119-10M00-00 Bolt, With Washer(63N) |
90119-10M00-00 |
from US $6.66 |
||
|
27
|
27
97513-10580-00 Bolt, With Washer |
97513-10580-00 |
from US $6.94 |
||
| replacement | |||||
|
27
|
27
90119-10M03-00 Bolt, With Washer(63N) |
90119-10M03-00 |
from US $7.63 |
||
|
28
|
28
6M6-44517-00-5B Mount Rubber |
6M6-44517-00-5B |
from US $50.01 |
||
| replacement | |||||
|
28
|
28
6M6-44517-A2-94 Mount Rubber |
6M6-44517-A2-94 |
from US $50.01 |
||
|
29
|
29
90119-08904-00 Bolt With Washer (Eu0) |
90119-08904-00 |
from US $5.38 |
||
|
30
|
30
90119-08038-00 Bolt, With Washer |
90119-08038-00 |
from US $2.36 |
||
|
31
|
31
EU0-67324-00-00 Plate |
EU0-67324-00-00 |
from US $4.68 |
||
|
32
|
32
EU0-U7354-00-01
Shim (T=0.1)
|
EU0-U7354-00-01 |
— | ||
| replacement | |||||
|
32
|
32
EU0-67354-A0-00 Shim (T=0.1) |
EU0-67354-A0-00 |
from US $3.97 |
||
|
32
|
32
EU0-U7354-00-03
Shim (T=0.3)
|
EU0-U7354-00-03 |
— | ||
| replacement | |||||
|
32
|
32
EU0-67354-B0-00 Shim (T=0.3) |
EU0-67354-B0-00 |
from US $3.97 |
||
|
32
|
32
EU0-U7354-00-05 Shim (T=0.5)UR |
EU0-U7354-00-05 |
from US $3.97 |
||
| replacement | |||||
|
32
|
32
EU0-67354-C0-00 Shim (T=0.5)Ｔ＝０．５ UR |
EU0-67354-C0-00 |
from US $3.97 |
||
|
32
|
32
EU0-U7354-00-10 Shim (T=1.0) |
EU0-U7354-00-10 |
from US $4.53 |
||
| replacement | |||||
|
32
|
32
EU0-67354-D0-00 Shim (T=1.0)Ｔ＝１．０ |
EU0-67354-D0-00 |
from US $4.53 |
||
|
32
|
32
EU0-U7354-00-20 Shim (T=2.0) |
EU0-U7354-00-20 |
from US $5.81 |
||
| replacement | |||||
|
32
|
32
EU0-67354-E0-00 Shim (T=2.0) |
EU0-67354-E0-00 |
from US $5.81 |
||
|
33
|
33
626-28193-01-94 Plug, Water Check |
626-28193-01-94 |
from US $11.75 |
||
| replacement | |||||
|
33
|
33
626-28193-01-00 Plug, Water Check |
626-28193-01-00 |
from US $15.17 |
||
