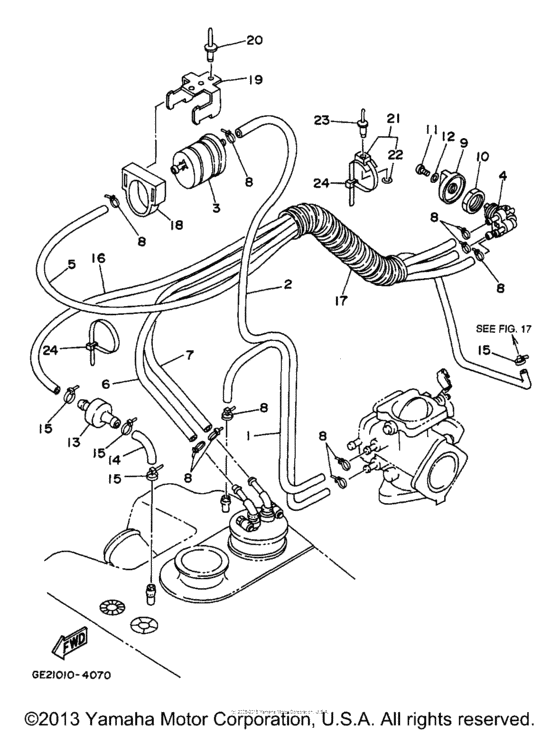

Fuel Diagram Yamaha WRA700 Wave Runner lll
- Engine Capacity
- 700
- Year
- 1997
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90445-10M30-00 Hose (L780) |
90445-10M30-00 |
from US $38.27 |
||
| replacement | |||||
|
1
|
1
90445-10MA9-00 Hose (L1040) |
90445-10MA9-00 |
from US $38.27 |
||
|
2
|
2
90445-10M45-00 Hose (L400) |
90445-10M45-00 |
US $6.38 |
||
| replacement | |||||
|
2
|
2
90445-10M43-00 Hose (L400) |
90445-10M43-00 |
from US $6.38 |
||
|
3
|
3
6K8-24560-10-00 Filter Assy |
6K8-24560-10-00 |
from US $40.58 |
||
| replacement | |||||
|
3
|
3
6K8-24560-21-00 Filter Assy |
6K8-24560-21-00 |
from US $37.38 |
||
|
4
|
4
6K8-24500-02-00 Fuel Cock Assy 1 |
6K8-24500-02-00 |
from US $58.01 |
||
| replacement | |||||
|
4
|
4
6K8-24500-03-00 Fuel Cock Assy 1 |
6K8-24500-03-00 |
US $113.38 |
||
|
5
|
5
90445-10M54-00 Hose (L815) |
90445-10M54-00 |
from US $45.75 |
||
| replacements | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
90445-10M87-00 Hose (L1700) |
90445-10M87-00 |
US $45.75 |
||
|
6
|
6
90445-10M37-00 Hose (L1080) |
90445-10M37-00 |
from US $45.75 |
||
| replacements | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
90445-10M87-00 Hose (L1700) |
90445-10M87-00 |
US $45.75 |
||
|
7
|
7
90445-10M38-00 Hose (L1060) |
90445-10M38-00 |
from US $45.75 |
||
| replacements | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
90445-10M87-00 Hose (L1700) |
90445-10M87-00 |
US $45.75 |
||
|
8
|
8
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
8
|
8
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
8
|
8
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.35 |
||
|
9
|
9
6K8-24524-10-00 Lever, Cock |
6K8-24524-10-00 |
from US $15.17 |
||
|
10
|
10
90170-22M11-00
Nut
|
90170-22M11-00 |
— | ||
|
11
|
11
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
12
|
12
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
13
|
13
EU0-67767-31-00 Check Valve |
EU0-67767-31-00 |
from US $24.94 |
||
|
14
|
14
EU0-67856-00-00 Hose, Air Vent 3 |
EU0-67856-00-00 |
US $8.48 |
||
|
15
|
15
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
15
|
15
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
15
|
15
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.35 |
||
|
16
|
16
GE1-U7856-30-00
Hose, Airvent 3
|
GE1-U7856-30-00 |
— | ||
|
17
|
17
J56-H7197-00-00
Tube 2
YMUS |
J56-H7197-00-00 |
— | ||
|
18
|
18
EU0-67817-00-00 Holder, Filter |
EU0-67817-00-00 |
from US $8.93 |
||
|
19
|
19
FN8-67816-00-00 Bracket, Fuel Filter |
FN8-67816-00-00 |
from US $13.32 |
||
|
20
|
20
90267-489U1-00 Rivet,blind |
90267-489U1-00 |
from US $4.77 |
||
| replacement | |||||
|
20
|
20
90267-48938-00 Rivet (Eu0) |
90267-48938-00 |
from US $3.38 |
||
|
21
|
21
90600-91736-00 Clamp Comp (Eu0) |
90600-91736-00 |
from US $1.98 |
||
|
22
|
22
90201-05925-00
Washer, Plain
|
90201-05925-00 |
— | ||
|
23
|
23
90267-48925-00 Rivet, Blind |
90267-48925-00 |
from US $1.94 |
||
| replacement | |||||
|
23
|
23
90267-48802-00 Rivet, Blind |
90267-48802-00 |
from US $1.84 |
||
|
24
|
24
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
24
|
24
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
