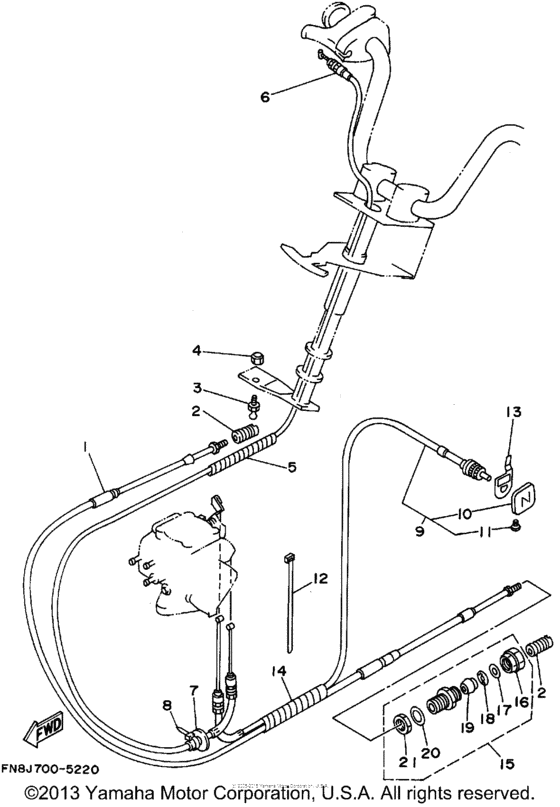

Control cable Diagram Yamaha WRB650 Wave Runner VXR
- Engine Capacity
- 650
- Year
- 1995
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
FN8-U1481-00-00 Cable, Steering |
FN8-U1481-00-00 |
US $191.92 |
||
|
2
|
2
EU0-U1461-30-00 Shaft, Joint Ball |
EU0-U1461-30-00 |
from US $26.07 |
||
| replacements | |||||
|
2
|
2
F0V-U1461-00-00 Stud, Joint Ball |
F0V-U1461-00-00 |
from US $51.53 |
||
|
2
|
2
EU0-61461-30-00 Shaft,joint Ball |
EU0-61461-30-00 |
from US $26.07 |
||
|
3
|
3
EU0-U1461-01-00
Stud, Joint Ball
|
EU0-U1461-01-00 |
— | ||
| replacements | |||||
|
3
|
3
EU0-61461-01-00
Stood, Joint Ball
|
EU0-61461-01-00 |
— | ||
|
3
|
3
EU0-61461-02-00 Stud, Joint Ball |
EU0-61461-02-00 |
from US $18.20 |
||
|
3
|
3
EU0-U1461-02-00
Stud, Joint Ball
|
EU0-U1461-02-00 |
— | ||
|
3
|
3
EU0-U1461-10-00 SHAFT, JOINT BALL |
EU0-U1461-10-00 |
from US $27.20 |
||
|
4
|
4
95720-06300-00 Nut, Self-Locking |
95720-06300-00 |
from US $1.84 |
||
|
5
|
5
90699-U1100-00
Spirap, 11
|
90699-U1100-00 |
— | ||
|
6
|
6
EU0-U7252-01-00 Cable, Throttle 1YMUS |
EU0-U7252-01-00 |
from US $170.08 |
||
| replacement | |||||
|
6
|
6
EU0-67252-02-00 Cable, Throttle 1YMUS |
EU0-67252-02-00 |
from US $161.98 |
||
|
7
|
7
904-80109-07-00
Grommet
|
904-80109-07-00 |
— | ||
|
8
|
8
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
8
|
8
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
8
|
8
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.35 |
||
|
9
|
9
FN8-U7242-00-00 Cable, Choke |
FN8-U7242-00-00 |
US $132.51 |
||
| replacement | |||||
|
9
|
9
FN8-U7242-02-00 Cable, Choke |
FN8-U7242-02-00 |
US $298.78 |
||
|
10
|
10
GA9-U724C-00-00
Knob, Choke
|
GA9-U724C-00-00 |
— | ||
| replacement | |||||
|
10
|
10
GP7-U724C-00-00
Choke Knob
|
GP7-U724C-00-00 |
— | ||
|
11
|
11
GA9-U724D-00-00 Screw |
GA9-U724D-00-00 |
from US $5.73 |
||
| replacement | |||||
|
11
|
11
GP7-U724D-00-00 Screw, Knob |
GP7-U724D-00-00 |
US $5.29 |
||
|
12
|
12
90601-200U1-00 Band |
90601-200U1-00 |
from US $2.27 |
||
|
13
|
13
FN8-67243-00-00 Plate, Choke |
FN8-67243-00-00 |
from US $5.14 |
||
|
14
|
14
90699-36U02-00 Spirap, 1111 YMUS |
90699-36U02-00 |
US $13.88 |
||
|
15
|
15
EU0-67267-00-00 Connector,cable |
EU0-67267-00-00 |
from US $38.96 |
||
|
16
|
16
EU0-62694-00-00 Cap |
EU0-62694-00-00 |
from US $7.37 |
||
|
17
|
17
EU0-61446-00-00 Washer30 |
EU0-61446-00-00 |
from US $5.38 |
||
|
18
|
18
EU0-61486-00-00 Stopper |
EU0-61486-00-00 |
from US $2.83 |
||
|
19
|
19
EU0-61435-00-00 Seal, Pipe 3030 |
EU0-61435-00-00 |
from US $4.82 |
||
|
20
|
20
EU0-61438-00-00 Packing |
EU0-61438-00-00 |
from US $3.68 |
||
|
21
|
21
EU0-62241-30-00 Nut, Drain 1 |
EU0-62241-30-00 |
from US $10.77 |
||
