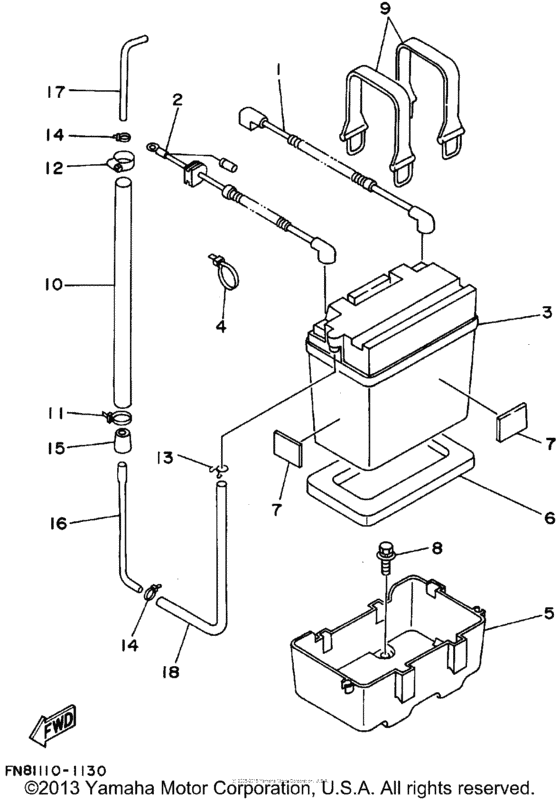

Electrical (2) Diagram Yamaha WRB650 Wave Runner VXR
- Engine Capacity
- 650
- Year
- 1995
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61L-82117-00-00 Wire, Lead |
61L-82117-00-00 |
from US $63.69 |
||
|
2
|
2
61L-82117-10-00 Wire, Lead |
61L-82117-10-00 |
from US $34.95 |
||
|
3
|
3
BTY-YB16C-LB-00 Yb16Clb Yuasa Batte |
BTY-YB16C-LB-00 |
US $105.86 |
||
| replacement | |||||
|
3
|
3
YB1-6CLB0-00-00
Battery Yb16Cl-B (Cb16Cl-B)
|
YB1-6CLB0-00-00 |
— | ||
|
4
|
4
90601-20006-00 Band, Hose |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
4
|
4
90601-20009-00 Band (Eu0) |
90601-20009-00 |
from US $2.27 |
||
|
5
|
5
EW2-68211-00-00 Case, Battery |
EW2-68211-00-00 |
from US $30.32 |
||
|
6
|
6
EU0-U8221-00-00 Pad, BatteryYMUS |
EU0-U8221-00-00 |
from US $3.38 |
||
| replacement | |||||
|
6
|
6
F1S-U8221-00-00 Pad, BatteryYMUS |
F1S-U8221-00-00 |
from US $9 |
||
|
7
|
7
EU0-68221-30-00 Pad, Battery |
EU0-68221-30-00 |
from US $21.54 |
||
|
8
|
8
90119-06920-00 Bolt, With Washer |
90119-06920-00 |
from US $2.27 |
||
|
9
|
9
EU0-68218-04-00 Belt, Battery |
EU0-68218-04-00 |
from US $14.73 |
||
|
10
|
10
90669-03003-00 Hose(Vinyl) <Dm> |
90669-03003-00 |
US $46.28 |
||
|
11
|
11
90601-200U1-00 Band |
90601-200U1-00 |
from US $2.27 |
||
|
12
|
12
90460-25M09-00 Hose Clamp Assy |
90460-25M09-00 |
US $34 |
||
| replacement | |||||
|
12
|
12
90450-32097-00 Hose Clamp Assy |
90450-32097-00 |
from US $19.22 |
||
|
13
|
13
90467-08M10-00 Clip |
90467-08M10-00 |
US $1.70 |
||
| replacement | |||||
|
13
|
13
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
14
|
14
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
14
|
14
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
14
|
14
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.35 |
||
|
15
|
15
EU0-62155-00-00
Cap
|
EU0-62155-00-00 |
— | ||
|
16
|
16
EU0-62156-32-00
Elbow Vent 12
12 |
EU0-62156-32-00 |
— | ||
|
17
|
17
FN8-62156-50-00 Elbow, Ventilater 1414 |
FN8-62156-50-00 |
from US $10.20 |
||
|
18
|
18
FJ0-67856-40-00 Hose, Air Vent 3 |
FJ0-67856-40-00 |
from US $15.17 |
||
