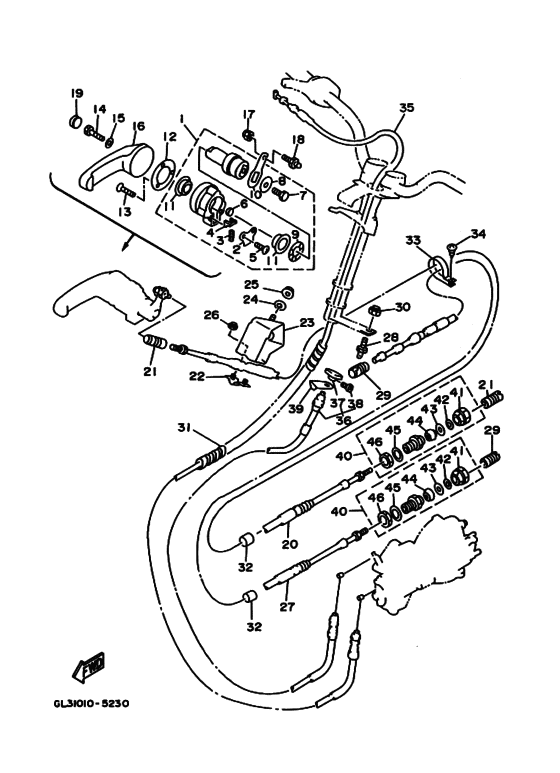

Control cable Diagram Yamaha WVT700 700VN
- Model code
- GL31
- Engine Capacity
- 700
- Year
- 1995
- Sales region
- Japan (010)
- Colour
- White Coat 2 (WC2; GA3C)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GJ3-6134B-01-00
Lever Sub-Assembly
ＬＥＶＥＲ ＳＵＢ−ＡＳＳＹ; |
GJ3-6134B-01-00 |
— | ||
|
2
|
2
FJ0-61348-01-00
Plate
．ＰＬＡＴＥ; |
FJ0-61348-01-00 |
— | ||
|
3
|
3
FJ0-61349-00-00 Spring．ＳＰＲＩＮＧ; |
FJ0-61349-00-00 |
US $4.77 |
||
|
4
|
4
FJ0-61351-00-00 Rod, Steering Link．ＤＥＴＥＮＴ ＲＯＬＬＥＲ ＳＥＴ; |
FJ0-61351-00-00 |
from US $14.88 |
||
|
5
|
5
98580-05012-00 Screw, Pan Head．ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ; |
98580-05012-00 |
from US $2.13 |
||
|
6
|
6
FJ0-61352-00-00 Ball, Joint．ＤＥＴＥＮＴ ＲＯＬＬＥＲ; |
FJ0-61352-00-00 |
US $4.77 |
||
|
7
|
7
97080-06014-00 Bolt．ＢＯＬＴ; |
97080-06014-00 |
from US $7.08 |
||
|
8
|
8
FJ0-61353-00-00 Washer．ＷＡＳＨＥＲ; |
FJ0-61353-00-00 |
from US $6.94 |
||
|
9
|
9
FJ0-61354-00-00 Wave Washer．ＷＡＶＥ ＷＡＳＨＥＲ; |
FJ0-61354-00-00 |
from US $6.23 |
||
|
10
|
10
GJ3-6134N-01-00 Arm．ＡＲＭ; |
GJ3-6134N-01-00 |
US $143.57 |
||
|
11
|
11
FJ0-61347-00-00 Bearing．ＢＥＡＲＩＮＧ; |
FJ0-61347-00-00 |
from US $6.66 |
||
|
12
|
12
FJ0-61344-00-00 BushＷＡＳＨＥＲ; |
FJ0-61344-00-00 |
from US $11.45 |
||
|
13
|
13
987-80055-25-00 Screw, Flat HeadＳＣＲＥＷ， ＦＬＡＴ ＨＥＡＤ; |
987-80055-25-00 |
from US $2.69 |
||
|
14
|
14
97080-06035-00 Bolt(J52)ＢＯＬＴ; |
97080-06035-00 |
from US $2.02 |
||
|
15
|
15
92990-06200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-06200-00 |
from US $1.18 |
||
|
16
|
16
GJ3-6134C-00-00
Lever,1
ＬＥＶＥＲ １; |
GJ3-6134C-00-00 |
— | ||
| replacement | |||||
|
16
|
16
GJ3-6134C-01-00
Lever,1
ＬＥＶＥＲ １; |
GJ3-6134C-01-00 |
— | ||
|
17
|
17
95720-06300-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95720-06300-00 |
from US $1.84 |
||
|
18
|
18
EU0-61461-01-00
Stood, Joint Ball
ＳＴＵＤ， ＪＯＩＮＴ ＢＡＬＬ; |
EU0-61461-01-00 |
— | ||
|
19
|
19
GJ3-6135G-00-00 Cap,remocon.leverＣＡＰ， ＲＥＭＯＣＯＮ ＬＥＶＥＲ; |
GJ3-6135G-00-00 |
US $21.38 |
||
|
20
|
20
GL3-6149C-00-00 Cable,reverseＣＡＢＬＥ， ＲＥＶＥＲＳＥ; |
GL3-6149C-00-00 |
US $196.49 |
||
|
21
|
21
EU0-61461-30-00 Shaft,joint BallＳＨＡＦＴ， ＪＯＩＮＴ ＢＡＬＬ; |
EU0-61461-30-00 |
from US $26.07 |
||
| replacement | |||||
|
21
|
21
F0V-U1461-00-00 Stud, Joint BallＳＨＡＦＴ， ＪＯＩＮＴ ＢＡＬＬ; |
F0V-U1461-00-00 |
from US $51.53 |
||
|
22
|
22
GJ3-61468-01-00 Stopper, CableＳＴＯＰＰＥＲ， ＣＡＢＬＥ; |
GJ3-61468-01-00 |
from US $11.48 |
||
|
23
|
23
GJ3-6146D-00-00
Bracket,cable Stopper 2
ＢＲＡＣＫＥＴ， ＣＡＢＬＥ ＳＴＯＰＰＥＲ ２; |
GJ3-6146D-00-00 |
— | ||
|
24
|
24
92990-06200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-06200-00 |
from US $1.18 |
||
|
25
|
25
95780-06300-00 P58 Nut, NylonＮＵＴ， ＦＬＡＮＧＥ; |
95780-06300-00 |
from US $4.11 |
||
|
26
|
26
95720-06300-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95720-06300-00 |
from US $1.84 |
||
|
27
|
27
GL3-61481-00-00 Cable, SteeringＣＡＢＬＥ， ＳＴＥＥＲＩＮＧ; |
GL3-61481-00-00 |
US $104.27 |
||
|
28
|
28
EU0-61461-01-00
Stood, Joint Ball
ＳＴＵＤ， ＪＯＩＮＴ ＢＡＬＬ; |
EU0-61461-01-00 |
— | ||
|
29
|
29
EU0-61461-30-00 Shaft,joint BallＳＨＡＦＴ， ＪＯＩＮＴ ＢＡＬＬ; |
EU0-61461-30-00 |
from US $26.07 |
||
| replacement | |||||
|
29
|
29
F0V-U1461-00-00 Stud, Joint BallＳＨＡＦＴ， ＪＯＩＮＴ ＢＡＬＬ; |
F0V-U1461-00-00 |
from US $51.53 |
||
|
30
|
30
95780-06300-00 P58 Nut, NylonＮＵＴ， ＦＬＡＮＧＥ; |
95780-06300-00 |
from US $4.11 |
||
|
31
|
31
90699-48056-00 Spirap,25ＳＰＩＲＡＰ ２５; |
90699-48056-00 |
US $10.43 |
||
|
32
|
32
GJ1-67578-00-00 Packing, Hose 2ＰＡＣＫＩＮＧ， ＨＯＳＥ ２; |
GJ1-67578-00-00 |
US $2.54 |
||
|
33
|
33
90600-92131-00 Clip,nylonＣＬＩＰ， ＮＹＬＯＮ ２１; |
90600-92131-00 |
from US $1.24 |
||
|
34
|
34
97780-50520-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-50520-00 |
US $1.56 |
||
| replacement | |||||
|
34
|
34
97780-50620-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-50620-00 |
from US $1.56 |
||
|
35
|
35
GH1-67252-01-00 Cable, ThrottleＣＡＢＬＥ， ＴＨＲＯＴＴＬＥ; |
GH1-67252-01-00 |
from US $147.73 |
||
|
36
|
36
GL3-67242-00-00
Cable, Choke
ＣＡＢＬＥ， ＣＨＯＫＥ; |
GL3-67242-00-00 |
— | ||
|
37
|
37
EW2-67243-00-00 Knob, Choke．ＫＮＯＢ; |
EW2-67243-00-00 |
from US $22.25 |
||
|
38
|
38
90149-03930-00 Screw．ＳＣＲＥＷ; |
90149-03930-00 |
from US $10.48 |
||
|
39
|
39
GJ3-6824D-00-00 Plate,chokeＰＬＡＴＥ， ＣＨＯＫＥ; |
GJ3-6824D-00-00 |
from US $8.22 |
||
|
40
|
40
EU0-67267-00-00 Connector,cableＣＯＮＮＥＣＴＯＲ， ＣＡＢＬＥ; |
EU0-67267-00-00 |
from US $38.96 |
||
|
41
|
41
EU0-62694-00-00 Cap．ＣＡＰ; |
EU0-62694-00-00 |
from US $8.19 |
||
|
42
|
42
EU0-61446-00-00 Washer．ＷＡＳＨＥＲ ３０; |
EU0-61446-00-00 |
from US $5.97 |
||
|
43
|
43
EU0-61486-00-00 Stopper．ＳＴＯＰＰＥＲ; |
EU0-61486-00-00 |
from US $3.20 |
||
|
44
|
44
EU0-61435-00-00 Seal, Pipe 30．ＳＥＡＬ， ＰＩＰＥ ３０; |
EU0-61435-00-00 |
from US $5.41 |
||
|
45
|
45
EU0-61438-00-00 Packing．ＰＡＣＫＩＮＧ ; Ｃ |
EU0-61438-00-00 |
from US $4.04 |
||
|
46
|
46
EU0-62241-30-00 Nut, Drain 1．ＮＵＴ， ＤＲＡＩＮ １; |
EU0-62241-30-00 |
from US $10.77 |
||
