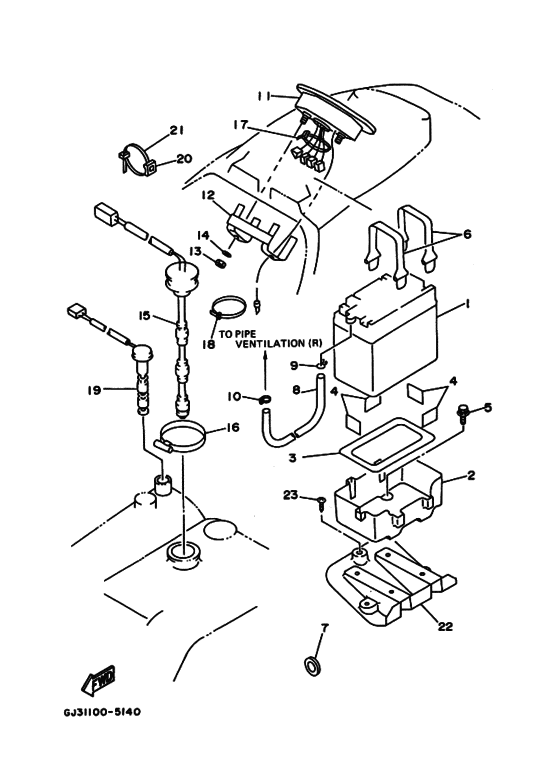

Electrical 2 Diagram Yamaha WVT700 700VN
- Model code
- GL31
- Engine Capacity
- 700
- Year
- 1995
- Sales region
- Japan (010)
- Colour
- White Coat 2 (WC2; GA3C)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
EU0-82110-77-00
Yb16Clb Yuasa Batte
ＢＡＴＴＥＲＹ ; ＦＢ１６ＣＬ−Ｂ |
EU0-82110-77-00 |
— | ||
| replacements | |||||
|
1
|
1
BTY-CB16C-LB-00
Battery cb16cl-b
ＢＡＴＴＥＲＹ ; ＦＢ１６ＣＬ−Ｂ |
BTY-CB16C-LB-00 |
— | ||
|
1
|
1
YB1-6CLB0-00-00
Battery Yb16Cl-B (Cb16Cl-B)
ＢＡＴＴＥＲＹ ; ＦＢ１６ＣＬ−Ｂ |
YB1-6CLB0-00-00 |
— | ||
|
2
|
2
EW2-68211-00-00 Case, BatteryＣＡＳＥ， ＢＡＴＴＥＲＹ; |
EW2-68211-00-00 |
from US $31.77 |
||
|
3
|
3
EU0-68221-00-00 Pad, BatteryＰＡＤ， ＢＡＴＴＥＲＹ １; |
EU0-68221-00-00 |
from US $21.54 |
||
| replacement | |||||
|
3
|
3
F1S-U8221-00-00 Pad, BatteryＰＡＤ， ＢＡＴＴＥＲＹ １; |
F1S-U8221-00-00 |
from US $9 |
||
|
4
|
4
EU0-68221-30-00 Pad, BatteryＰＡＤ， ＢＡＴＴＥＲＹ ２; |
EU0-68221-30-00 |
from US $21.54 |
||
|
5
|
5
90119-06920-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-06920-00 |
from US $2.27 |
||
|
6
|
6
EU0-68218-04-00 Belt, BatteryＢＡＮＤ， ＢＡＴＴＥＲＹ; |
EU0-68218-04-00 |
from US $14.73 |
||
|
7
|
7
FJ0-68222-01-00 GrommetＧＲＯＭＭＥＴ; |
FJ0-68222-01-00 |
US $9.11 |
||
|
8
|
8
GJ3-67856-20-00 Hose,airvent 3ＨＯＳＥ， ＡＩＲ ＶＥＮＴ ３; |
GJ3-67856-20-00 |
from US $17.43 |
||
| replacement | |||||
|
8
|
8
90699-50100-00 HoseＨＯＳＥ， ＡＩＲ ＶＥＮＴ ３; |
90699-50100-00 |
from US $17.43 |
||
|
9
|
9
90467-08M10-00 ClipＣＬＩＰ; |
90467-08M10-00 |
US $1.70 |
||
| replacement | |||||
|
9
|
9
90467-08004-00 ClipＣＬＩＰ; |
90467-08004-00 |
from US $1.81 |
||
|
10
|
10
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
10
|
10
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.17 |
||
|
10
|
10
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.39 |
||
|
11
|
11
GJ3-6820A-00-00 Meter, AssyＭＥＴＥＲ ＡＳＳＹ; ＵＲ ＵＳＡ |
GJ3-6820A-00-00 |
from US $517.88 |
||
| replacement | |||||
|
11
|
11
GH3-6820A-40-00 Meter AssemblyＭＥＴＥＲ ＡＳＳＹ; ＵＲ ＵＳＡ |
GH3-6820A-40-00 |
US $1,117.51 |
||
|
11
|
11
GJ3-6820A-10-00
Meter, Assy
ＭＥＴＥＲ ＡＳＳＹ; ＵＲ ＣＡＮ，ＥＵＲ，ＡＮＺ，ＪＰＮ |
GJ3-6820A-10-00 |
— | ||
|
12
|
12
GJ1-68238-00-00 Bracket, MeterＢＲＡＣＫＥＴ， ＭＥＴＥＲ; |
GJ1-68238-00-00 |
US $53.46 |
||
|
13
|
13
95720-05300-00 Nut, FlangeＮＵＴ， ＦＬＡＮＧＥ; |
95720-05300-00 |
from US $1.56 |
||
|
14
|
14
92990-05200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92990-05200-00 |
from US $1.56 |
||
|
15
|
15
GJ1-6824B-00-00
Sender, Fuel
ＳＥＮＤＥＲ， ＦＵＥＬ; |
GJ1-6824B-00-00 |
— | ||
|
16
|
16
90601-16274-00 Band, HoseＮＹＬＯＮ ＣＬＩＰ １; |
90601-16274-00 |
from US $14.03 |
||
|
17
|
17
90601-20006-00 Band, HoseＮＹＬＯＮ ＣＬＩＰ １; |
90601-20006-00 |
from US $2.27 |
||
| replacement | |||||
|
17
|
17
90601-20009-00 Band (Eu0)ＮＹＬＯＮ ＣＬＩＰ １; |
90601-20009-00 |
from US $2.27 |
||
|
18
|
18
90601-20008-00 Nylon Clip 1ＮＹＬＯＮ ＣＬＩＰ １; |
90601-20008-00 |
from US $5.81 |
||
|
19
|
19
GJ1-6824C-00-00 Sender,oilＳＥＮＤＥＲ， ＯＩＬ; |
GJ1-6824C-00-00 |
US $241.40 |
||
| replacement | |||||
|
19
|
19
GJ1-6824C-01-00 Sender,oilＳＥＮＤＥＲ， ＯＩＬ; |
GJ1-6824C-01-00 |
US $241.40 |
||
|
20
|
20
90600-90004-00 Base,clampＢＡＳＥ， ＣＬＡＭＰ; |
90600-90004-00 |
from US $3.54 |
||
|
21
|
21
90601-20005-00 BandＮＹＬＯＮ ＣＬＩＰ １; |
90601-20005-00 |
from US $1.98 |
||
|
22
|
22
GJ3-U821C-00-00
Battery Case Base Assembly Comp
ＢＡＴＴＥＲＹ ＣＡＳＥ ＣＯＭＰ．; ＹＭＵＳ |
GJ3-U821C-00-00 |
— | ||
|
23
|
23
97780-60116-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97780-60116-00 |
from US $3.73 |
||
