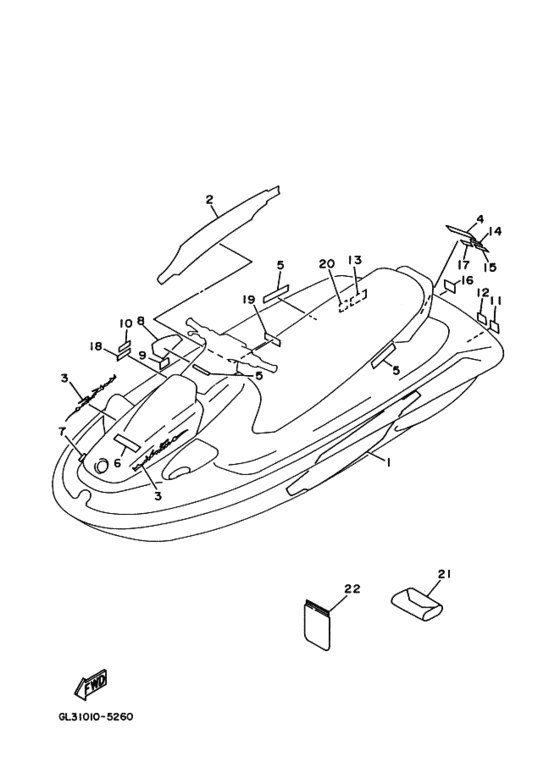

Graphic. tool Diagram Yamaha WVT700 700VN
- Model code
- GL31
- Engine Capacity
- 700
- Year
- 1995
- Sales region
- Japan (010)
- Colour
- White Coat 2 (WC2; GA3C)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
GL3-6417B-10-00
Graphic, 1
ＧＲＡＰＨＩＣ １; |
GL3-6417B-10-00 |
— | ||
|
2
|
2
GL3-6417B-20-00
Graphic, 1
ＧＲＡＰＨＩＣ １; |
GL3-6417B-20-00 |
— | ||
|
3
|
3
GL3-64121-00-00
Emblem A
ＥＭＢＬＥＭ １; |
GL3-64121-00-00 |
— | ||
|
4
|
4
GL3-64114-00-00
Mark, Yamaha A
ＭＡＲＫ， ＹＡＭＡＨＡ １; |
GL3-64114-00-00 |
— | ||
|
5
|
5
GL3-64123-00-00
Emblem,3
ＥＭＢＬＥＭ ３; |
GL3-64123-00-00 |
— | ||
|
6
|
6
99236-00160-00 Emblem, YamahaＥＭＢＬＥＭ， ＹＡＭＡＨＡ; |
99236-00160-00 |
from US $8.66 |
||
| replacement | |||||
|
6
|
6
99246-00160-00 Emblem, YamahaＥＭＢＬＥＭ， ＹＡＭＡＨＡ; |
99246-00160-00 |
from US $8.66 |
||
|
7
|
7
GL3-6415B-00-00
Label, Warning(Fuel)
ＬＡＢＥＬ， ＷＡＲＮＩＮＧ ; ＦＵＥＬ |
GL3-6415B-00-00 |
— | ||
|
8
|
8
GL3-6415C-00-00
Label, Warning 1
ＬＡＢＥＬ， ＷＡＲＮＩＮＧ １; |
GL3-6415C-00-00 |
— | ||
|
9
|
9
GL3-6415D-00-00 Label, WarningＬＡＢＥＬ， ＷＡＲＮＩＮＧ ２; |
GL3-6415D-00-00 |
US $11.82 |
||
|
10
|
10
GL3-6416F-00-00
Label, Warning 4
ＬＡＢＥＬ， ＷＡＲＮＩＮＧ ; ＯＩＬ |
GL3-6416F-00-00 |
— | ||
|
11
|
11
GL3-6415G-00-00
Label,warning 5
ＬＡＢＥＬ， ＷＡＲＮＩＮＧ ５; |
GL3-6415G-00-00 |
— | ||
|
12
|
12
FJ0-64188-00-00 Label, RightingＬＡＢＥＬ， ＵＰ ＲＩＧＨＴＩＮＧ; |
FJ0-64188-00-00 |
US $6.14 |
||
| replacement | |||||
|
12
|
12
GK5-6418F-00-00 Label,rightingＬＡＢＥＬ， ＵＰ ＲＩＧＨＴＩＮＧ; |
GK5-6418F-00-00 |
US $6.14 |
||
|
13
|
13
GL3-6418B-00-00 Label,cautionＬＡＢＥＬ， ＣＡＵＴＩＯＮ ; ＢＡＴＴＥＲＹ |
GL3-6418B-00-00 |
US $11.11 |
||
|
14
|
14
GL3-6418C-00-00
Label, Caution
ＬＡＢＥＬ， ＣＡＵＴＩＯＮ; |
GL3-6418C-00-00 |
— | ||
|
15
|
15
FT4-64178-00-00
Label,caution 1
ＬＡＢＥＬ， ＣＡＵＴＩＯＮ １; |
FT4-64178-00-00 |
— | ||
|
16
|
16
GL3-6418G-00-00 Label, CautionＬＡＢＥＬ， ＣＡＵＴＩＯＮ ; ＤＲＡＩＮ |
GL3-6418G-00-00 |
US $8.78 |
||
|
17
|
17
GL3-6418H-00-00
Label,caution(Cleat)
ＬＡＢＥＬ， ＣＡＵＴＩＯＮ ; ＣＬＥＡＴ |
GL3-6418H-00-00 |
— | ||
|
18
|
18
GA7-6418J-10-00
Label,caution
ＬＡＢＥＬ， ＣＡＵＴＩＯＮ ; ＯＩＬ |
GA7-6418J-10-00 |
— | ||
|
19
|
19
GL3-6419C-00-00
Label,2
ＬＡＢＥＬ， ２ ; ＯＮ−ＯＦＦ−ＲＥＳ |
GL3-6419C-00-00 |
— | ||
|
20
|
20
FJ1-64197-00-00 Plate, CapacityＰＬＡＴＥ， ＣＡＰＡＣＩＴＹ; |
FJ1-64197-00-00 |
US $6.58 |
||
|
21
|
21
EU0-28100-33-00 Tool KitＴＯＯＬ， ＫＩＴ; |
EU0-28100-33-00 |
US $33.20 |
||
|
22
|
22
EU0-65901-01-00
Tool Bag
ＢＡＧ， ＶＩＮＹＬ; |
EU0-65901-01-00 |
— | ||
| replacements | |||||
|
22
|
22
EU0-65901-02-00 Tool BagＢＡＧ， ＶＩＮＹＬ; |
EU0-65901-02-00 |
from US $13.55 |
||
|
22
|
22
EU0-65901-03-00 Bag, VinylＢＡＧ， ＶＩＮＹＬ; |
EU0-65901-03-00 |
US $13.55 |
||
