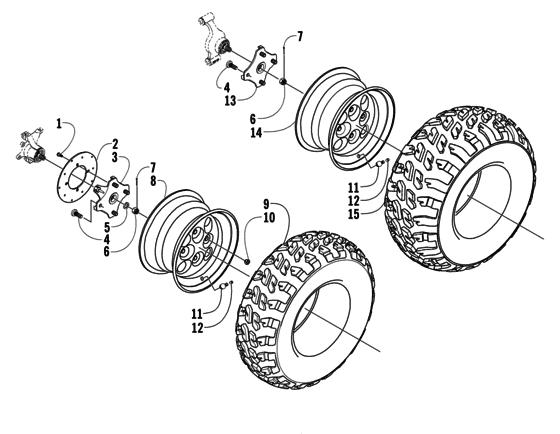

Wheel and tire assembly Diagram Arctic Cat ATV 650 650 V-Twin FIS
- Model code
- A2004ISR4BUSS
- Engine Capacity
- 650
- Year
- 2004
- Commercial Name
- 650 V-Twin FIS
- Sales region
- General
- Colour
- Green-Mrp
- Model
- ATV 650 V-Twin FIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0423-029 ScrewMachine |
0423-029 |
US $2.95 |
||
| replacement | |||||
|
1
|
1
0423-557 ScrewShoulder w/loctite |
0423-557 |
US $4.40 |
||
|
2
|
2
0402-874 DiscBrake |
0402-874 |
US $54.78 |
||
| replacement | |||||
|
2
|
2
1436-164 DiscBrake |
1436-164 |
US $64.59 |
||
|
3
|
3
0502-421 HubFront; wheel inc. 4 ; |
0502-421 |
US $164.98 |
||
|
4
|
4
0402-974 StudWheel hub |
0402-974 |
US $4.11 |
||
|
5
|
5
0402-181 SealHub |
0402-181 |
US $11.92 |
||
|
6
|
6
0423-394 NutHex |
0423-394 |
US $15.86 |
||
|
7
|
7
0423-407 PinCotter |
0423-407 |
US $2.95 |
||
|
8
|
8
0402-856 WheelFront |
0402-856 |
US $105.41 |
||
|
9
|
9
1402-201 TireFront |
1402-201 |
US $169.20 |
||
|
10
|
10
0423-408 NutWheel; mounting |
0423-408 |
US $7.24 |
||
|
11
|
11
0402-064 ValveStem inc. 12 ; |
0402-064 |
US $4.43 |
||
|
12
|
12
0402-140 CapValve stem |
0402-140 |
US $12.72 |
||
| replacement | |||||
|
12
|
12
0402-064 ValveStem |
0402-064 |
US $4.43 |
||
|
13
|
13
0502-601
Hub
inc. 4 ; |
0502-601 |
— | ||
| replacement | |||||
|
13
|
13
1502-464 Hub,assembly (w/o disc pearch)inc. 4 ; |
1502-464 |
US $136.32 |
||
|
13
|
13
0502-599
Hub
inc. 4 ; |
0502-599 |
— | ||
| replacement | |||||
|
13
|
13
1502-462 Hub - assembly (w/disc pearch)inc. 4 ; |
1502-462 |
US $183.81 |
||
|
14
|
14
0402-858 WheelRear |
0402-858 |
US $105.41 |
||
|
15
|
15
1402-202 TireRear |
1402-202 |
US $179.52 |
||
