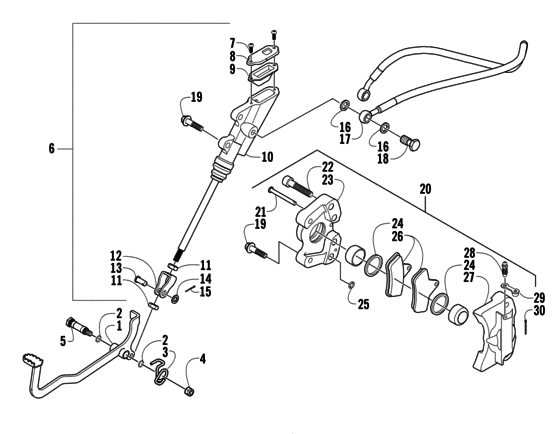

Auxiliary brake assembly Diagram Arctic Cat ATV 650 650 V-Twin FIS
- Model code
- A2004ISR4BUSR
- Engine Capacity
- 650
- Year
- 2004
- Commercial Name
- 650 V-Twin FIS
- Sales region
- General
- Colour
- Red
- Model
- ATV 650 V-Twin FIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0502-594 LeverBrake |
0502-594 |
US $85.81 |
||
|
2
|
2
1602-213 O-ring |
1602-213 |
US $1.18 |
||
|
3
|
3
0502-395 SpringBrake lever |
0502-395 |
US $59.55 |
||
|
4
|
4
8422-002 NutLock |
8422-002 |
US $1.34 |
||
|
5
|
5
0402-872 AxleBrake lever |
0402-872 |
US $43.38 |
||
|
6
|
6
0502-452 Brake assemblyinc. 7-15 ; |
0502-452 |
US $378.86 |
||
| replacement | |||||
|
6
|
6
0437-053 KitMaster cylinder adapter-fis inc. 7-15 ; |
0437-053 |
US $326.26 |
||
|
7
|
7
0402-545 ScrewMachine |
0402-545 |
US $5 |
||
|
8
|
8
0402-588 CoverReservoir |
0402-588 |
US $28.98 |
||
|
9
|
9
0402-591
Bladder
|
0402-591 |
— | ||
|
11
|
11
0402-592 Nut |
0402-592 |
US $0.22 |
||
|
12
|
12
0402-580 Push-rodActuator |
0402-580 |
US $5.74 |
||
|
13
|
13
0402-575 PinClevis |
0402-575 |
US $0.98 |
||
|
14
|
14
0402-583 Washer |
0402-583 |
US $0.50 |
||
|
15
|
15
0402-584 ClipHairpin |
0402-584 |
US $0.11 |
||
|
16
|
16
0423-178 WasherCrush |
0423-178 |
US $12 |
||
|
17
|
17
1402-200 HoseBrake |
1402-200 |
US $75.71 |
||
|
18
|
18
0423-413 BoltBanjo fitting |
0423-413 |
US $5.60 |
||
|
19
|
19
8408-825 ScrewCap |
8408-825 |
US $1.62 |
||
|
20
|
20
0502-335 CaliperRight front; brake inc. 21-30 ; |
0502-335 |
US $281.64 |
||
| replacements | |||||
|
20
|
20
1436-422 Kit-caliper,full assy-rhFront Right and Rear Left inc. 21-30 ; |
1436-422 |
US $178.60 |
||
|
20
|
20
2502-574 Kit,caliper,brake-Rh,hp,t117Front Right and Rear Left; inc. 21-30 ; |
2502-574 |
US $202.99 |
||
|
21
|
21
0402-495
Pin
|
0402-495 |
— | ||
|
22
|
22
0402-492 ScrewSocket head |
0402-492 |
US $2.14 |
||
|
24
|
24
0402-980 O-ringBrake caliper |
0402-980 |
US $18.70 |
||
|
25
|
25
0402-490 O-ring |
0402-490 |
US $4.60 |
||
|
26
|
26
0402-882 PadBrake |
0402-882 |
US $54.76 |
||
|
28
|
28
0402-491 ValveBleed |
0402-491 |
US $24.24 |
||
| replacement | |||||
|
28
|
28
0502-609 ValveBleed |
0502-609 |
US $34.29 |
||
|
29
|
29
0402-493 CapBleed valve |
0402-493 |
US $2.22 |
||
|
30
|
30
0423-495 PinCotter |
0423-495 |
US $1.18 |
||
