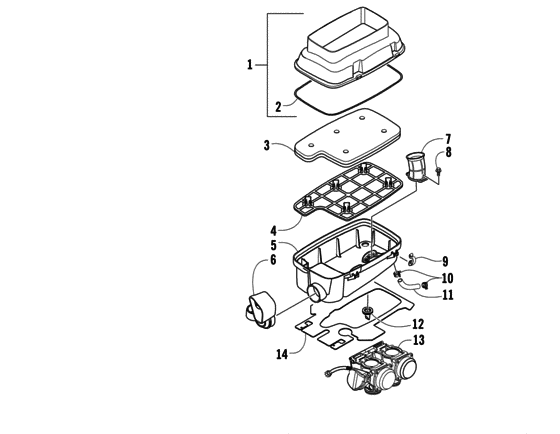

Air Intake Assembly Diagram Arctic Cat ATV 650 650 V-Twin FIS
- Model code
- A2004ISR4BCAT
- Engine Capacity
- 650
- Year
- 2004
- Commercial Name
- 650 V-Twin FIS
- Sales region
- General
- Colour
- Red-Mrp Ca
- Model
- ATV 650 V-Twin FIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0470-685 CoverAir intake housing inc. 2 ; |
0470-685 |
US $43.57 |
||
|
2
|
2
0470-690
Seal
|
0470-690 |
— | ||
|
3
|
3
0470-494 FilterAir |
0470-494 |
US $38.59 |
||
| replacement | |||||
|
3
|
3
0470-663 FilterAir |
0470-663 |
US $46.42 |
||
|
4
|
4
0470-493 ScreenAir filter |
0470-493 |
US $47.08 |
||
|
5
|
5
0470-485 HousingAir intake |
0470-485 |
US $82.21 |
||
|
6
|
6
0413-089 DuctAir intake |
0413-089 |
US $36.08 |
||
|
7
|
7
3201-001 DuctAir funnel |
3201-001 |
US $12.34 |
||
|
8
|
8
3201-002 ScrewCap |
3201-002 |
US $4.60 |
||
|
9
|
9
0423-455 ClipSpring |
0423-455 |
US $18.68 |
||
|
10
|
10
0623-941 ClampHose |
0623-941 |
US $4.37 |
||
|
11
|
11
0410-061 HoseCrankcase vent |
0410-061 |
US $38.59 |
||
| replacement | |||||
|
11
|
11
0410-171 HoseVent-crankcase |
0410-171 |
US $38.59 |
||
|
12
|
12
0470-442 ValveAir intake |
0470-442 |
US $14.38 |
||
|
13
|
13
0470-528 Carburetor |
0470-528 |
US $1,134.24 |
||
|
14
|
14
1406-559 ShieldAir intake housing |
1406-559 |
US $94.66 |
||
