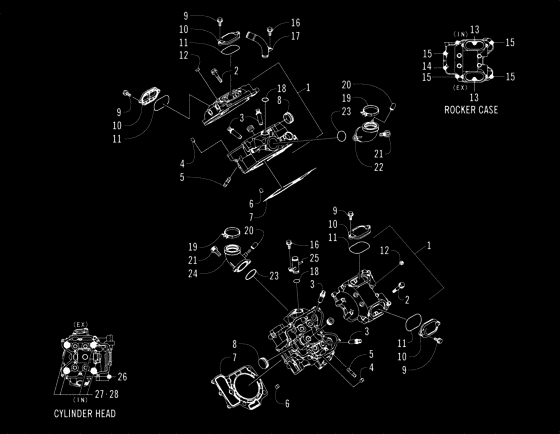

Cylinder Head Assembly Diagram Arctic Cat ATV 650 650 V-Twin FIS
- Model code
- A2005IBR4BUSR
- Engine Capacity
- 650
- Year
- 2005
- Commercial Name
- 650 V-Twin FIS
- Sales region
- General
- Colour
- Red
- Model
- ATV 650 V-Twin FIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3201-409 HeadFront; cylinder inc. 2-3 ; |
3201-409 |
US $1,128.23 |
||
|
1
|
1
3201-410 HeadRear; cylinder inc. 2-3 ; |
3201-410 |
US $1,128.23 |
||
|
2
|
2
3201-368 Bolt |
3201-368 |
US $9.86 |
||
|
3
|
3
3201-216 GuideValve |
3201-216 |
US $32.19 |
||
|
4
|
4
3201-304 Pin |
3201-304 |
US $1.38 |
||
|
5
|
5
3201-264 Stud |
3201-264 |
US $9.86 |
||
|
6
|
6
3201-307 Pin |
3201-307 |
US $39.44 |
||
|
7
|
7
3201-061 GasketHead |
3201-061 |
US $46.05 |
||
| replacement | |||||
|
7
|
7
3201-440 Gasket-head |
3201-440 |
US $44.60 |
||
|
8
|
8
3201-353 Plug |
3201-353 |
US $18.54 |
||
|
9
|
9
3201-036 ScrewCap |
3201-036 |
US $5.70 |
||
|
10
|
10
3201-075 CapRocker case |
3201-075 |
US $29.71 |
||
|
11
|
11
3201-342 O-ring |
3201-342 |
US $11.10 |
||
| replacement | |||||
|
11
|
11
3201-459 O-ring |
3201-459 |
US $11.10 |
||
|
12
|
12
3201-071 Gasket |
3201-071 |
US $3.33 |
||
|
13
|
13
3201-140 ScrewCap |
3201-140 |
US $5.70 |
||
|
14
|
14
3201-145 ScrewCap |
3201-145 |
US $4.94 |
||
|
15
|
15
3201-146 ScrewCap |
3201-146 |
US $5.70 |
||
|
16
|
16
3201-144
Screw
|
3201-144 |
— | ||
|
17
|
17
3201-046 PipeWater |
3201-046 |
US $27.21 |
||
|
18
|
18
3201-048 O-ring |
3201-048 |
US $2.80 |
||
|
19
|
19
3201-049 Clamp |
3201-049 |
US $12.34 |
||
|
20
|
20
3201-354 Plug |
3201-354 |
US $28.50 |
||
|
21
|
21
3201-099 Bolt |
3201-099 |
US $6.05 |
||
|
22
|
22
3201-172
Holder
|
3201-172 |
— | ||
|
23
|
23
3201-337 O-ring |
3201-337 |
US $25.31 |
||
|
24
|
24
3201-173
Holder
|
3201-173 |
— | ||
|
25
|
25
3201-047
Pipe
|
3201-047 |
— | ||
|
26
|
26
3201-150 ScrewCap |
3201-150 |
US $11.17 |
||
|
27
|
27
3201-377 Bolt |
3201-377 |
US $29.71 |
||
|
28
|
28
3201-279 Washer |
3201-279 |
US $6.05 |
||
