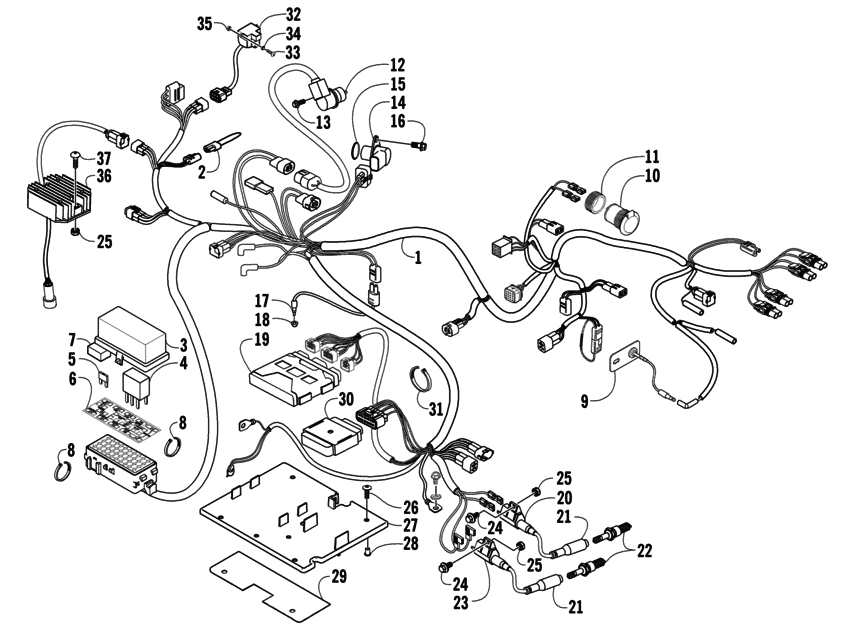

Wiring harness assembly Diagram Arctic Cat ATV 650 650 V-Twin FIS
- Model code
- A2005IBR4BUSR
- Engine Capacity
- 650
- Year
- 2005
- Commercial Name
- 650 V-Twin FIS
- Sales region
- General
- Colour
- Red
- Model
- ATV 650 V-Twin FIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0486-157 HarnessMain inc. 2-7 and two No. 8 ; |
0486-157 |
US $831.32 |
||
|
2
|
2
0486-164 TetherAccessory connector |
0486-164 |
US $13.42 |
||
|
3
|
3
0530-008 CoverFuse block |
0530-008 |
US $39.34 |
||
|
4
|
4
0430-033 Relay5-Pin - 20 Amp; |
0430-033 |
US $24.13 |
||
|
5
|
5
0430-032 Fuse10 amp |
0430-032 |
US $4.06 |
||
|
5
|
5
0430-031 Fuse15 amp |
0430-031 |
US $6.05 |
||
|
5
|
5
0430-030 Fuse30 amp |
0430-030 |
US $8.67 |
||
|
6
|
6
0411-903 DecalFuse block |
0411-903 |
US $65.75 |
||
|
7
|
7
0430-037 HolderFuse |
0430-037 |
US $4.06 |
||
|
8
|
8
0123-788 TieCable |
0123-788 |
US $2.90 |
||
|
9
|
9
0509-011 Diode assembly |
0509-011 |
US $21.13 |
||
| replacement | |||||
|
9
|
9
0530-125 Kit,fan diode |
0530-125 |
US $18.70 |
||
|
10
|
10
0445-022 Receptacle12v inc. 11 ; |
0445-022 |
US $26.14 |
||
| replacement | |||||
|
10
|
10
0641-897 Outlet12v; accessory inc. 11 ; |
0641-897 |
US $26.21 |
||
|
11
|
11
0445-034 NutRetainer |
0445-034 |
US $0.54 |
||
|
12
|
12
3201-191 SensorReverse |
3201-191 |
US $145.13 |
||
|
13
|
13
3201-141 ScrewCap |
3201-141 |
US $3.70 |
||
|
14
|
14
3201-190 SensorSpeed inc. 15 ; |
3201-190 |
US $172.40 |
||
|
15
|
15
3201-343 O-ring |
3201-343 |
US $3.70 |
||
|
16
|
16
3201-036 ScrewCap |
3201-036 |
US $5.70 |
||
|
17
|
17
0409-009 SwitchAssembly; brake |
0409-009 |
US $86.82 |
||
|
18
|
18
0402-991 RetainerBrake switch |
0402-991 |
US $8.74 |
||
|
19
|
19
3201-039 Cdi |
3201-039 |
US $733.26 |
||
|
20
|
20
3201-010
Coil
|
3201-010 |
— | ||
|
21
|
21
3201-012 CapSpark plug |
3201-012 |
US $81.87 |
||
|
22
|
22
0217-708 PlugCr7e; spark NGK CR7E ; |
0217-708 |
US $45.20 |
||
|
23
|
23
3201-011 CoilRear; ignition |
3201-011 |
US $151.24 |
||
|
24
|
24
8476-620 ScrewCap |
8476-620 |
US $2.95 |
||
|
25
|
25
0623-038 Nut w/washer |
0623-038 |
US $2.15 |
||
|
26
|
26
0623-121 ScrewMachine |
0623-121 |
US $65 |
||
|
27
|
27
1406-697 TrayElectrical |
1406-697 |
US $26.64 |
||
|
28
|
28
0123-010 NutExpansion |
0123-010 |
US $168.60 |
||
|
29
|
29
0412-290 ShieldHeat |
0412-290 |
US $32.36 |
||
|
30
|
30
3201-040 ControllerActuator |
3201-040 |
US $838.61 |
||
| replacement | |||||
|
30
|
30
3201-470 Ecu |
3201-470 |
US $698.52 |
||
|
31
|
31
0123-903 TieCable |
0123-903 |
US $7.40 |
||
|
32
|
32
0409-064 SwitchInvert sensor |
0409-064 |
US $94.90 |
||
|
33
|
33
8468-425 Screw |
8468-425 |
US $0.74 |
||
|
34
|
34
0123-802 Washer |
0123-802 |
US $1.16 |
||
|
35
|
35
0423-493 Nut w/washer |
0423-493 |
US $2.15 |
||
|
36
|
36
0430-035 RegulatorVoltage |
0430-035 |
US $138.92 |
||
| replacement | |||||
|
36
|
36
0430-046 RegulatorVoltage |
0430-046 |
US $149.97 |
||
|
37
|
37
8476-630 ScrewCap |
8476-630 |
US $5.88 |
||
