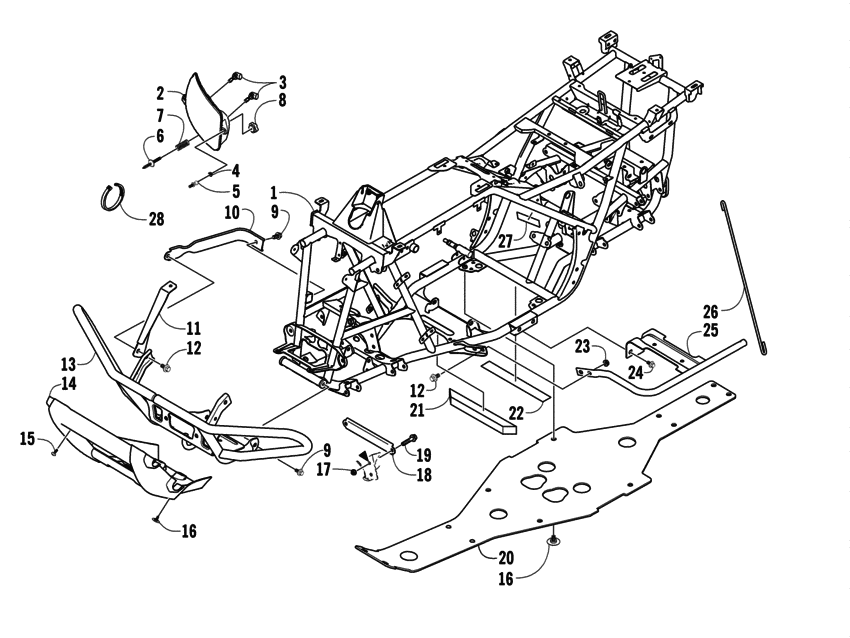

Frame and related parts Diagram Arctic Cat ATV 650 650 V-Twin FIS
- Model code
- A2006IBR4BUSZ
- Engine Capacity
- 650
- Year
- 2006
- Commercial Name
- 650 V-Twin FIS
- Sales region
- General
- Colour
- Cat Green
- Model
- ATV 650 V-Twin FIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1506-718
Frame
|
1506-718 |
— | ||
|
2
|
2
0509-016 Headlight assemblyRight inc. 3-4 ; |
0509-016 |
US $150.76 |
||
| replacement | |||||
|
2
|
2
0509-076 Headlight,rh-assyinc. 3-4 ; |
0509-076 |
US $170.67 |
||
|
2
|
2
0509-018 Headlight assemblyLeft inc. 3-4 ; |
0509-018 |
US $150.76 |
||
| replacement | |||||
|
2
|
2
0509-077 Headlight,lh-assyinc. 3-4 ; |
0509-077 |
US $170.67 |
||
|
3
|
3
0409-055
Bulb
|
0409-055 |
— | ||
|
4
|
4
0423-452 SocketMounting |
0423-452 |
US $6.42 |
||
|
5
|
5
0423-515
Stud
|
0423-515 |
— | ||
|
6
|
6
0423-514 StudHeadlight; adjuster |
0423-514 |
US $13.34 |
||
|
7
|
7
0423-522 SpringAdjuster |
0423-522 |
US $5 |
||
|
8
|
8
0423-513 KnobAdjuster |
0423-513 |
US $7.57 |
||
|
9
|
9
8409-020 ScrewCap |
8409-020 |
US $7.44 |
||
|
10
|
10
0506-653 ChannelBumper mounting |
0506-653 |
US $28.18 |
||
| replacement | |||||
|
10
|
10
1506-596 ChannelLeft; bumper mounting |
1506-596 |
US $32.27 |
||
|
10
|
10
1506-596 ChannelLeft; bumper mounting |
1506-596 |
US $32.27 |
||
|
11
|
11
1506-562 BracketBumper - right; mounting |
1506-562 |
US $32.27 |
||
|
11
|
11
1506-563 BracketBumper - left; mounting |
1506-563 |
US $32.27 |
||
|
12
|
12
8408-816 ScrewCap |
8408-816 |
US $4.40 |
||
|
13
|
13
1506-855 Bumper |
1506-855 |
US $217.14 |
||
|
14
|
14
1406-360 GrilleBumper |
1406-360 |
US $54.50 |
||
|
15
|
15
0423-419 ScrewMachine |
0423-419 |
US $6.70 |
||
|
16
|
16
0423-101 ScrewBody |
0423-101 |
US $14.40 |
||
|
17
|
17
8428-002 NutLock |
8428-002 |
US $27.20 |
||
|
18
|
18
1506-429 BraceA-arm |
1506-429 |
US $21.13 |
||
| replacement | |||||
|
18
|
18
2516-852 BraceA-arm |
2516-852 |
US $48.43 |
||
|
19
|
19
8409-025 ScrewCap |
8409-025 |
US $2.13 |
||
|
20
|
20
1406-425 PanelBelly |
1406-425 |
US $131.26 |
||
|
21
|
21
1506-067 FoamFrame |
1506-067 |
US $3.24 |
||
|
22
|
22
0406-289 PadUpper rear; battery |
0406-289 |
US $2.53 |
||
|
23
|
23
8424-802 Nut |
8424-802 |
US $0.74 |
||
|
24
|
24
8409-016 ScrewCap |
8409-016 |
US $8.52 |
||
|
25
|
25
1506-380 FootrestRight |
1506-380 |
US $84.80 |
||
|
25
|
25
1506-379 FootrestLeft |
1506-379 |
US $84.80 |
||
|
26
|
26
1406-298 RodSupport |
1406-298 |
US $8.66 |
||
|
27
|
27
0412-298 Heat shield |
0412-298 |
US $3.24 |
||
|
28
|
28
0623-751 Cable tieRe-useable |
0623-751 |
US $14.40 |
||
