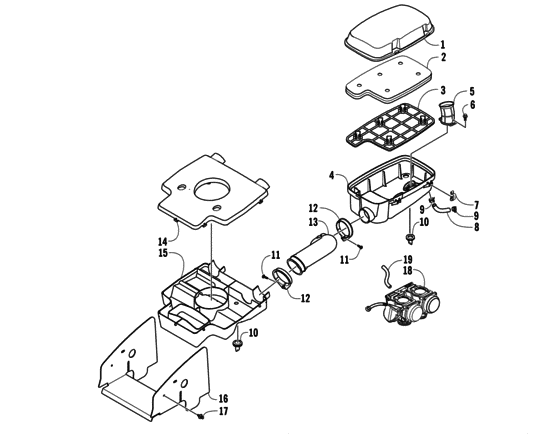

Air Intake Assembly Diagram Arctic Cat ATV 650 650 V-Twin FIS
- Model code
- A2006IBR4BUSR
- Engine Capacity
- 650
- Year
- 2006
- Commercial Name
- 650 V-Twin FIS
- Sales region
- General
- Colour
- Red
- Model
- ATV 650 V-Twin FIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0470-554 CoverAir intake |
0470-554 |
US $78.48 |
||
| replacements | |||||
|
1
|
1
0470-877 CoverAir intake |
0470-877 |
US $83.07 |
||
|
1
|
1
147-0221 Top,airbox-Fab (Atv) |
147-0221 |
US $94.90 |
||
|
2
|
2
0470-494 FilterAir |
0470-494 |
US $38.59 |
||
| replacement | |||||
|
2
|
2
0470-663 FilterAir |
0470-663 |
US $46.42 |
||
|
3
|
3
0470-493 ScreenAir filter |
0470-493 |
US $47.08 |
||
|
4
|
4
0470-485 HousingAir intake |
0470-485 |
US $82.21 |
||
|
5
|
5
3201-001 DuctAir funnel |
3201-001 |
US $12.34 |
||
|
6
|
6
3201-002 ScrewCap |
3201-002 |
US $4.60 |
||
|
7
|
7
0423-455 ClipSpring |
0423-455 |
US $18.68 |
||
|
8
|
8
0410-061 HoseCrankcase vent |
0410-061 |
US $38.59 |
||
| replacement | |||||
|
8
|
8
0410-171 HoseVent-crankcase |
0410-171 |
US $38.59 |
||
|
9
|
9
0623-941 ClampHose |
0623-941 |
US $4.37 |
||
|
10
|
10
0470-442 ValveAir intake |
0470-442 |
US $14.38 |
||
|
11
|
11
0423-342 ScrewSelf-tapping |
0423-342 |
US $2.15 |
||
|
12
|
12
0423-551 ClampBoot |
0423-551 |
US $16.55 |
||
|
13
|
13
0470-529 BootAir intake |
0470-529 |
US $75.71 |
||
|
14
|
14
0413-091 DiverterTop; air |
0413-091 |
US $60.35 |
||
|
15
|
15
0413-093 DiverterBottom; air |
0413-093 |
US $64.29 |
||
|
16
|
16
1406-785 ShroudSplash |
1406-785 |
US $75.94 |
||
|
17
|
17
0623-362 RivetPlastic |
0623-362 |
US $4.40 |
||
|
18
|
18
0470-497 Carburetor |
0470-497 |
US $1,400.61 |
||
|
19
|
19
0510-592 HoseCarburetor drain |
0510-592 |
US $8.74 |
||
