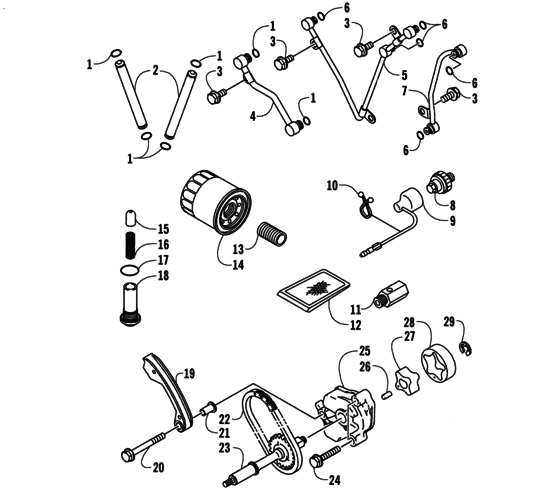

Oil Pump Assembly Diagram Arctic Cat ATV 650 650 V-Twin FIS
- Model code
- A2006IBR4BUSR
- Engine Capacity
- 650
- Year
- 2006
- Commercial Name
- 650 V-Twin FIS
- Sales region
- General
- Colour
- Red
- Model
- ATV 650 V-Twin FIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3201-255 O-ring |
3201-255 |
US $3.22 |
||
|
2
|
2
3201-199 Pipe |
3201-199 |
US $12.34 |
||
|
3
|
3
3201-144
Screw
|
3201-144 |
— | ||
|
4
|
4
3201-204 PipeCrankshaft; oil |
3201-204 |
US $70.67 |
||
|
5
|
5
3201-205 PipeCrankcase - left; oil |
3201-205 |
US $161.97 |
||
|
6
|
6
3201-254 O-ring |
3201-254 |
US $5.70 |
||
|
7
|
7
3201-206 PipeCrankcase - right; oil |
3201-206 |
US $72.27 |
||
|
8
|
8
3201-196 SwitchOil pressure |
3201-196 |
US $48.32 |
||
|
9
|
9
3201-194 WireLead |
3201-194 |
US $27.52 |
||
|
10
|
10
3201-383 Clamp |
3201-383 |
US $2.70 |
||
|
11
|
11
3201-176 ValveAssembly; relief |
3201-176 |
US $52.04 |
||
|
12
|
12
3201-231 FilterOil |
3201-231 |
US $27.39 |
||
|
13
|
13
3201-198 PipeOil filter |
3201-198 |
US $18.54 |
||
|
14
|
14
3201-044 FilterOil |
3201-044 |
US $21.03 |
||
| replacement | |||||
|
14
|
14
3201-451 Filter,oil |
3201-451 |
US $22.66 |
||
|
15
|
15
3201-303 Pin |
3201-303 |
US $16.16 |
||
|
16
|
16
3201-356 Spring |
3201-356 |
US $9.86 |
||
|
17
|
17
3201-257 O-ring |
3201-257 |
US $3.22 |
||
|
18
|
18
3201-376 Bolt |
3201-376 |
US $44.79 |
||
|
19
|
19
3201-087 GuideSlack; chain |
3201-087 |
US $59.95 |
||
|
20
|
20
3201-142 ScrewCap |
3201-142 |
US $9.97 |
||
|
21
|
21
3201-359 Collar |
3201-359 |
US $3.94 |
||
|
22
|
22
3201-423 Chain |
3201-423 |
US $44.60 |
||
| replacement | |||||
|
22
|
22
3201-467 Chain |
3201-467 |
US $44.60 |
||
|
23
|
23
3201-123 ShaftOil pump |
3201-123 |
US $133.17 |
||
|
24
|
24
3201-146 ScrewCap |
3201-146 |
US $5.70 |
||
|
25
|
25
3201-178 CoverPump |
3201-178 |
US $44.60 |
||
|
26
|
26
3201-241 PinDowel |
3201-241 |
US $1.50 |
||
|
27
|
27
3201-179 RotorInner; pump |
3201-179 |
US $12.34 |
||
|
28
|
28
3201-180 RotorOuter; pump |
3201-180 |
US $18.54 |
||
|
29
|
29
3201-215 Circlip |
3201-215 |
US $1.86 |
||
