Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 3201-238 Camshaft assembly Front	3201-238	US $338.70
1	1 3201-239 Camshaft assembly Rear	3201-239	US $340.80
2	2 3201-083 Sprocket 34t; camshaft	3201-083	US $70.67
3	3 3201-214 Circlip	3201-214	US $12.58
4	4 3201-093 Bolt	3201-093	US $5.24
	replacement
4	4 3201-468 Bolt,socket 6x10	3201-468	US $2.11
5	5 3201-415 Chain	3201-415	—
	replacement
5	5 3201-464 Chain	3201-464	—
6	6 3201-106 Weight	3201-106	US $52.75
7	7 3201-364 Spring	3201-364	US $3.33
8	8 3201-146 Screw Cap	3201-146	US $5.70
9	9 3201-085 Tensioner Assembly; cam	3201-085	US $166.19
10	10 3201-331 O-ring	3201-331	US $5.70
11	11 3201-116 Shaft Front; chain guide	3201-116	US $16.16
11	11 3201-117 Shaft Rear; chain guide	3201-117	US $18.66
12	12 3201-070 Gasket	3201-070	US $2.70
13	13 3201-089 Guide Slack; chain	3201-089	US $70.67
14	14 3201-088 Guide Tension; chain	3201-088	US $65.71
15	15 3201-209 Washer	3201-209	US $0.85
16	16 3201-417 Shaft Secondary	3201-417	US $205.91
17	17 3201-414 Chain	3201-414	—
	replacement
17	17 3201-465 Chain	3201-465	US $44.60
18	18 3201-416 Sprocket 21t and 17t; secondary shaft	3201-416	US $84.30
19	19 3201-418 Circlip	3201-418	US $29.15
20	20 3201-098 Bolt	3201-098	US $5.70
21	21 3201-158 Plate Drive; position	3201-158	US $4.46
22	22 3201-090 Guide Tension; chain	3201-090	US $32.19
23	23 3201-092 Guide Slack; chain	3201-092	US $59.50
24	24 3201-379 Bolt	3201-379	US $16.06
25	25 3201-298 Ring Snap	3201-298	US $11.40
26	26 3201-086 Tensioner Assembly; secondary	3201-086	US $166.19

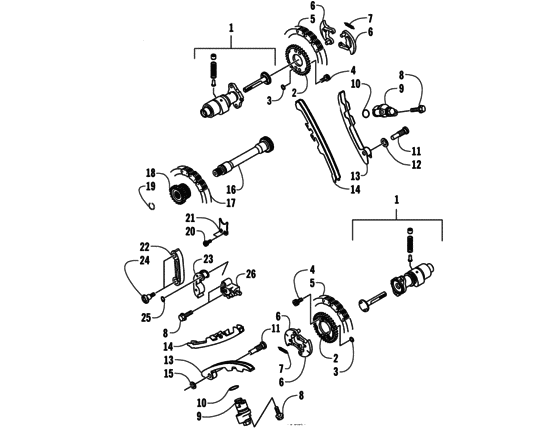

Camshafts/tensioner assembly Diagram Arctic Cat ATV 650 650 V-Twin FIS Tony Stewart Edition General 10969086-697264
