	Description	OEM Part #	Price
	0436-655 Winch kit	0436-655	—
1	1 0441-490 Winch inc. 2-5 ;	0441-490	—
	replacement
1	1 0436-658 New Genuine Part inc. 2-5 ;	0436-658	—
2	2 0441-061 Cable Winch	0441-061	US $139.68
3	3 1441-131 Hook Winch	1441-131	US $36.08
6	6 0441-403 Roller Winch inc. 7 ;	0441-403	US $47.22
7	7 0411-474 Decal Winch	0411-474	US $215.21
8	8 8468-820 Screw Machine	8468-820	US $2.13
9	9 8051-246 Washer Lock	8051-246	US $4.24
10	10 1623-131 Screw Cap	1623-131	US $0.55
11	11 0411-433 Decal	0411-433	—
12	12 1441-111 Cable Yellow; winch/solenoid	1441-111	US $28.18
13	13 1441-110 Cable Blue; winch/solenoid	1441-110	US $32.27
14	14 0123-788 Tie Cable	0123-788	US $2.90
15	15 1441-112 Cable Black; solenoid/battery	1441-112	US $75.71
16	16 1441-113 Cable Red; solenoid/battery	1441-113	US $47.30
17	17 0441-060 Boot Terminal	0441-060	US $3.25
18	18 0409-066 Solenoid	0409-066	US $141.38
	replacement
18	18 040-9246 Kit,solenoid Replacement	040-9246	US $129.25
19	19 0623-038 Nut w/washer	0623-038	US $2.15
20	20 8476-625 Screw Cap	8476-625	US $12
21	21 0409-065 Switch Control	0409-065	US $78.48
22	22 0409-034 Holder Control switch	0409-034	US $11.47
23	23 0409-075 Cover Switch	0409-075	US $16.02
24	24 8051-212 Washer	8051-212	—
25	25 0423-382 Screw Self-tapping	0423-382	US $4.40
26	26 8464-560 Screw Machine	8464-560	US $13.42

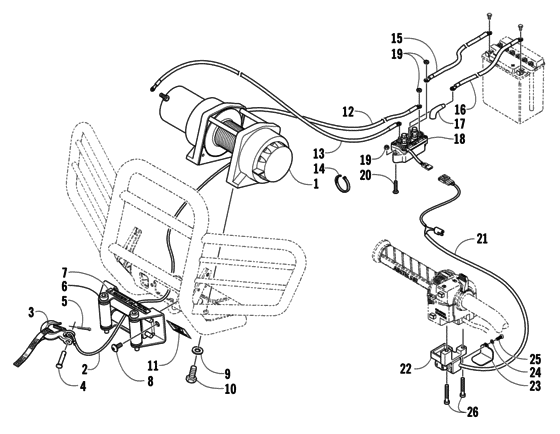

Winch assembly Diagram Arctic Cat ATV 650 650 V-Twin FIS Tony Stewart Edition General 10968943-697260
