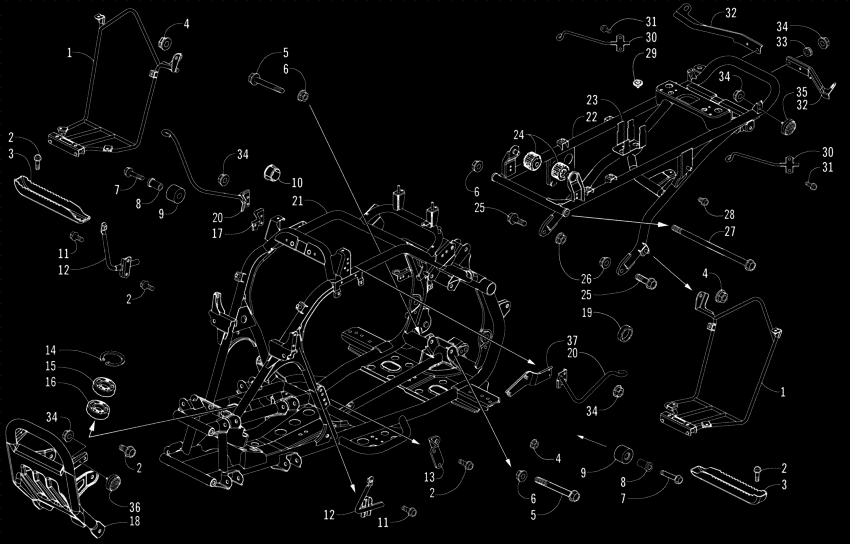

Frame and related parts assembly Diagram Arctic Cat DVX 250 DVX
- Model code
- A2007KSE2BUSD
- Engine Capacity
- 250
- Year
- 2007
- Commercial Name
- 250 DVX
- Sales region
- General
- Colour
- Black-Red
- Model
- ATV 250 DVX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3304-354 BracketFender - right; mounting |
3304-354 |
US $68.23 |
||
|
1
|
1
3304-356 BracketFender - left; mounting |
3304-356 |
US $68.23 |
||
|
2
|
2
3304-543 BoltFlange |
3304-543 |
US $5.40 |
||
|
3
|
3
3304-346 ReinforcementFloor |
3304-346 |
US $20.33 |
||
|
4
|
4
3303-332 NutLock |
3303-332 |
US $3.28 |
||
|
5
|
5
3304-183 ScrewCap |
3304-183 |
US $14.85 |
||
|
6
|
6
3304-031 Nut |
3304-031 |
US $11.55 |
||
|
7
|
7
3304-408 BoltFlange |
3304-408 |
US $8.70 |
||
|
8
|
8
3304-701 SleeveCollar |
3304-701 |
US $3.67 |
||
|
9
|
9
3304-362 GrommetRubber |
3304-362 |
US $10.60 |
||
|
10
|
10
3304-658 CapEnd |
3304-658 |
US $1.64 |
||
|
11
|
11
3304-553 BoltFlange |
3304-553 |
US $4.10 |
||
|
12
|
12
3304-352 BracketFender - front - right; support |
3304-352 |
US $20.33 |
||
|
12
|
12
3304-353 BracketFender - front - left; support |
3304-353 |
US $20.33 |
||
|
13
|
13
3303-938 BracketHanger |
3303-938 |
US $10.82 |
||
|
14
|
14
3304-150 Circlip |
3304-150 |
US $11.50 |
||
|
15
|
15
3304-203 Bearing |
3304-203 |
US $23.03 |
||
|
16
|
16
3303-298 SealOil |
3303-298 |
US $3.01 |
||
|
17
|
17
3303-740 BracketFiller neck; mounting |
3303-740 |
US $5.30 |
||
|
18
|
18
3305-270 BumperFront |
3305-270 |
US $108.95 |
||
|
19
|
19
3304-064 SealDust |
3304-064 |
US $3.12 |
||
|
20
|
20
3304-350 BracketFender support - left; mounting |
3304-350 |
US $20.33 |
||
|
20
|
20
3304-351 BracketFender support - right; mounting |
3304-351 |
US $20.33 |
||
|
21
|
21
3304-338 FrameMain |
3304-338 |
US $1,159.65 |
||
|
22
|
22
3305-271 FrameRear; main |
3305-271 |
US $350.61 |
||
|
23
|
23
3304-339 BracketStarter/magneto switch; mounting |
3304-339 |
US $25.12 |
||
|
24
|
24
3304-245 CushionGas tank |
3304-245 |
US $6.56 |
||
|
25
|
25
3304-181 BoltFlange |
3304-181 |
US $3.48 |
||
|
26
|
26
3303-333 NutFlange |
3303-333 |
US $5 |
||
| replacement | |||||
|
26
|
26
3307-058 NUT FLANGE 10MM |
3307-058 |
US $5 |
||
|
27
|
27
3304-184 BoltFlange |
3304-184 |
US $26.95 |
||
|
28
|
28
3304-435 BoltFlange |
3304-435 |
US $12.60 |
||
|
29
|
29
3304-057 ClipFender |
3304-057 |
US $8.65 |
||
|
30
|
30
3304-348 BracketFender - rear - right; support |
3304-348 |
US $16.23 |
||
|
30
|
30
3304-349 BracketFender - rear - left; support |
3304-349 |
US $16.23 |
||
|
31
|
31
3305-344 BoltFlange |
3305-344 |
US $1.96 |
||
|
32
|
32
3304-344 BracketFender - rear - right; mounting |
3304-344 |
US $25.74 |
||
|
32
|
32
3304-345 BracketFender - rear - left; mounting |
3304-345 |
US $25.74 |
||
|
33
|
33
3303-239 GrommetRubber |
3303-239 |
US $1.64 |
||
|
34
|
34
3304-654 Nut |
3304-654 |
US $5.60 |
||
|
35
|
35
3305-273 ReflectorRear; red |
3305-273 |
US $16.23 |
||
|
36
|
36
3305-272 ReflectorFront; amber |
3305-272 |
US $16.23 |
||
|
37
|
37
3303-935 BracketClutch/gas tank; mounting |
3303-935 |
US $16.23 |
||
