Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 3406-156 Arm Swing inc. 2-3 ;	3406-156	US $2,022.94
2	2 3406-133 Bearing	3406-133	US $40.30
3	3 3406-053 Bushing	3406-053	US $41.36
4	4 3406-102 Seal Bearing	3406-102	US $13.17
5	5 3406-052 Spacer	3406-052	US $94.90
6	6 3406-054 Cover Dust	3406-054	US $21.13
7	7 3423-618 Washer Thrust	3423-618	US $4.11
8	8 3406-051 Shaft Pivot	3406-051	US $131.95
9	9 3423-785 Nut	3423-785	US $20.59
10	10 3423-786 Washer	3423-786	US $4.61
11	11 3406-055 Slide Chain	3406-055	US $57.28
12	12 3423-656 Bolt	3423-656	US $3.06
13	13 3446-383 Plate Chain adjuster	3446-383	US $91.41
14	14 3423-650 Bolt Chain adjuster	3423-650	US $8.10
15	15 3423-679 Washer Chain adjuster nut	3423-679	US $4.72
16	16 3423-190 Circlip Reverse idle	3423-190	US $8.44
	replacement
16	16 3423-865 Circlip	3423-865	US $4.22
17	17 3423-757 Nut Chain adjuster	3423-757	US $28.30
18	18 3423-643 Bolt	3423-643	US $11.10
19	19 3423-644 Bolt	3423-644	US $10.32
20	20 3423-677 Washer	3423-677	US $5.44
21	21 3423-586 Plate	3423-586	US $19.06
22	22 3423-587 Plate	3423-587	US $19.06
23	23 3406-056 Guard Assembly; swing arm inc. 24-27 ;	3406-056	US $275.39
24	24 3406-057 Guard Swing arm	3406-057	US $230.27
25	25 3406-058 Slide Swing arm guard; chain	3406-058	US $83.19
26	26 3423-671 Washer	3423-671	US $1.35
27	27 3423-704 Rivet	3423-704	US $3.09
28	28 3423-756 Bolt	3423-756	US $12.62
29	29 3423-648 Bolt	3423-648	US $8.43
30	30 3004-278 Washer	3004-278	US $2.16
	replacement
30	30 3007-410 Washer	3007-410	US $3.78
31	31 3406-123 Cap Swing arm	3406-123	US $26.75
32	32 3406-124 Boot Chain adjuster bolt	3406-124	US $16.13

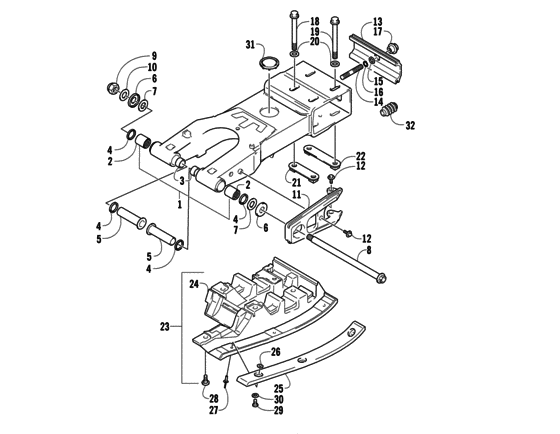

Swing arm assembly Diagram Arctic Cat DVX 400 DVX Tony Stewart Edition General 10970683-697301

Swing arm assembly Diagram Arctic Cat DVX 400 DVX Tony Stewart Edition General 10970683-697301
