Component List DVX 90 DVX
Body Panel And Headlight Assembly (98370)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 3306-815 Body,main-w/decals (red) Main Red \| (inc. 2-11)	3306-815	US $373.73
2	2 0411-836 Decal Hill; warning Hill	0411-836	US $12
3	3 2411-162 Cover,water pump Caution Lead Content	2411-162	US $11.47
4	4 2411-136 Decal Reverse/pre-ride; warning Age	2411-136	US $18.70
5	5 1411-577 Decal Off-road only; warning Not for Highways	1411-577	US $8.50
6	6 1411-809 Decal Passenger Passenger	1411-809	US $6.69
7	7 1411-938 Decal Tire/load; warning Tire/Load	1411-938	US $12.64
8	8 1411-932 Decal General; warning General	1411-932	US $18.30
9	9 3313-359 Reflector Front	3313-359	US $14.38
10	10 3304-774 Nut Lock Front	3304-774	US $1.15
11	11 3313-360 Reflector Front	3313-360	US $14.38
12	12 2411-052 Decal Shift Front	2411-052	US $20.59
13	13 9611-751 Decal,emblem-chrome Front	9611-751	US $39.54
14	14 3411-014 Decal,tank-dvx 90-red-rh Forward Right	3411-014	US $83.58
14	14 3411-015 Decal,tank-dvx 90-red-lh Forward Left	3411-015	US $83.58
15	15 3411-012 Decal,fender-front-rh (dvx 90) Right	3411-012	US $33.82
15	15 3411-013 Decal,fender-front-lh (dvx 90) Left	3411-013	US $33.82
16	16 3411-016 Decal,fender-rear-rh (dvx 90) Right	3411-016	US $52.04
16	16 3411-017 Decal,fender-rear-lh (dvx 90) Left	3411-017	US $52.04
17	17 3303-232 Rubber Rear fender Left	3303-232	US $13.60 ~~US $13.60~~
18	18 3304-587 Bolt w/washer Left	3304-587	US $7.90
19	19 3304-280 Headlight assembly Assembly \| (inc. 19-22)	3304-280	US $233.31
20	20 3304-282 Socket assembly Assembly \| (inc. 19-22)	3304-282	US $43.38
21	21 3303-846 Bulb Headlight Assembly \| (inc. 19-22)	3303-846	US $46.42
22	22 3304-281 Lens Headlight Assembly \| (inc. 19-22)	3304-281	US $205.02
23	23 3304-650 Screw Self-tapping Assembly \| (inc. 19-22)	3304-650	US $3.90
24	24 3306-144 Mudguard Assembly; right Assembly \| (inc. 24-25)	3306-144	US $94.90
24	24 3306-145 Mudguard Assembly; left Assembly \| (inc. 24-25)	3306-145	US $94.90
25	25 3303-233 Collar Insert Assembly \| (inc. 24-25)	3303-233	US $13.24
26	26 3303-227 Grommet Rubber Assembly \| (inc. 24-25)	3303-227	US $10.88
27	27 3304-586 Bolt Assembly \| (inc. 24-25)	3304-586	US $3.16
28	28 3305-703 Screw Machine Assembly \| (inc. 24-25)	3305-703	US $11.50
29	29 3304-431 Nut Lock Assembly \| (inc. 24-25)	3304-431	US $7.90
30	30 3304-543 Bolt Flange Assembly \| (inc. 24-25)	3304-543	US $7.80
31	31 3304-494 Reinforcement Right; floor Right	3304-494	US $43.38
31	31 3304-495 Reinforcement Left; floor Left	3304-495	US $43.38

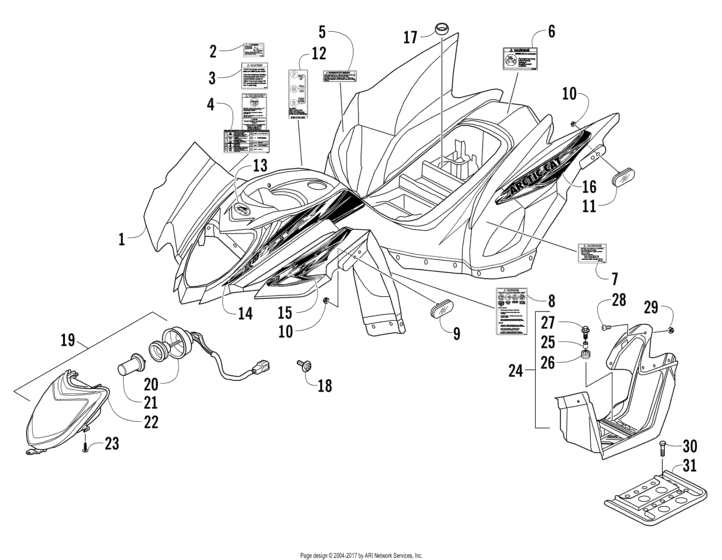

Body Panel And Headlight Assembly (98370) Diagram Arctic Cat DVX 90 DVX Red General 16797085-861393

Body Panel And Headlight Assembly (98370) Diagram Arctic Cat DVX 90 DVX Red General 16797085-861393
